Porshe 911 (997). Manual - part 565





Overview, rear bumper

Installing heat shield at the sides

1. Position the heat shield at the sides -3- so that these against the side section without gaps.

2. Screw on fastening nuts -1- and fasten using tightening torque → : 7

ftlb.

 .

3. Screw on fastening screw -2- and fasten using tightening torque → : 7

ftlb.

 .

Installing centre heat shield

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing heat shield at the sides

2417

Overview, rear bumper

Installing centre heat shield

1. Screw on centre heat shield -2- with fastening nuts -1- .

Installing centre retaining strip

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing centre heat shield

2418

Overview, rear bumper

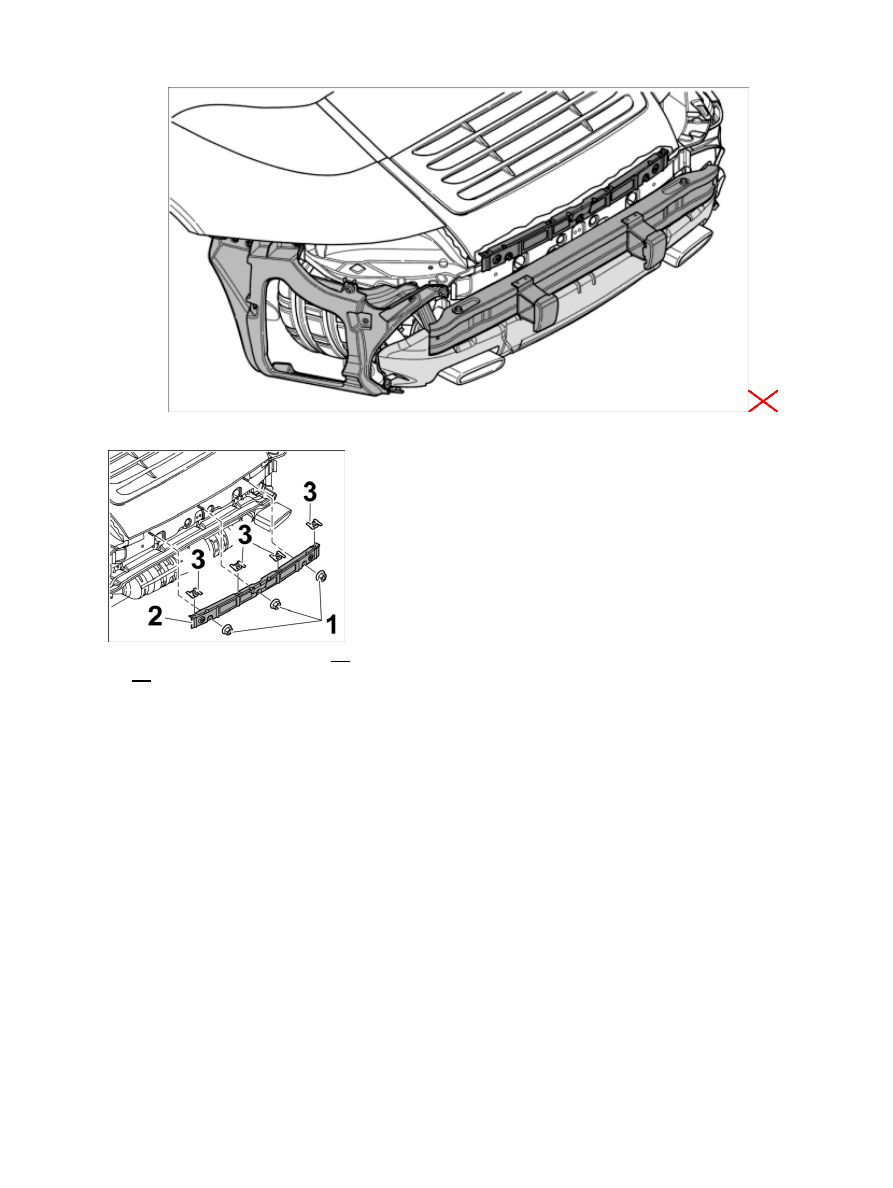

1. Position centre retaining strip -2- with sheetmetal nuts attached

-3-

 .

2. Screw on fastening nuts and fasten with tightening torque → : 7

ftlb.

 .

3. Check the adjustment dimensions of the centre retaining strip and correct if necessary.

Installing rear bumper

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing centre retaining strip

2419

Overview, rear bumper

Installing rear bumper

1. Position lower centre heat shield -4- together with rear support -7- and screw in with fastening

screws -5- .

2. Position connecting angle -8- and screw in with fastening screws -6- .

3. Position rear bumper -2- or (USA/Canada version) -2A- with mounted centre heat shield -4- in a

downward direction.

4. Screw in fastening screws -1- and tighten using tightening torque → : 63 ftlb. .

5. Screw in fastening screws -3- .

6. Check the adjustment dimensions of the rear bumper and the assembly of the heat shield and correct if

necessary

Diagnostic system: reading out fault memory and activating systems

Installing rear bumper

2420
