Porshe 911 (997). Manual - part 561

Overview, front retaining strip

Removing front retaining strip

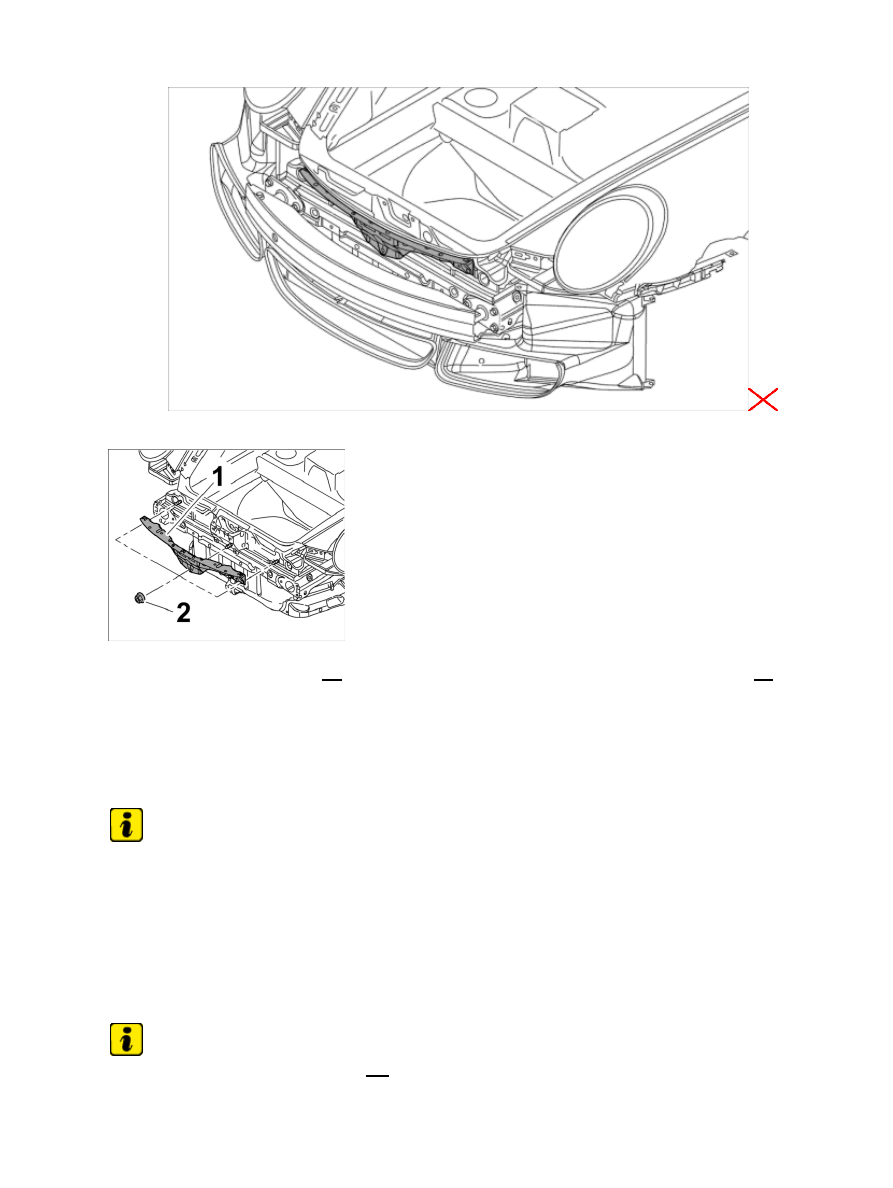

1. Unscrew fastening nuts -2- and remove front retaining strip -1- .

Installing front retaining strip

Installing front retaining strip

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing front retaining strip

2401

Overview, front retaining strip

Installing front retaining strip

1. Position front retaining strip -1- on the body and tighten down slightly with the fastening nuts -2-

.

Adjusting front retaining strip

Note

In order to reduce adjustment work to a minimum when assembling the front spoiler, the front
retaining strip must be aligned with the lower edge of the lid according to the dimensions shown.

•

However, the precondition for precise positioning of the components is that the front lid is optimally
adjusted and correctly locked in the lock in accordance with the joining plan, before the front
retaining strip is assembled.

•

Note

All measurements refer to the position -V- → Adjustment dimension: 632 mm

Diagnostic system: reading out fault memory and activating systems

Installing front retaining strip

2402

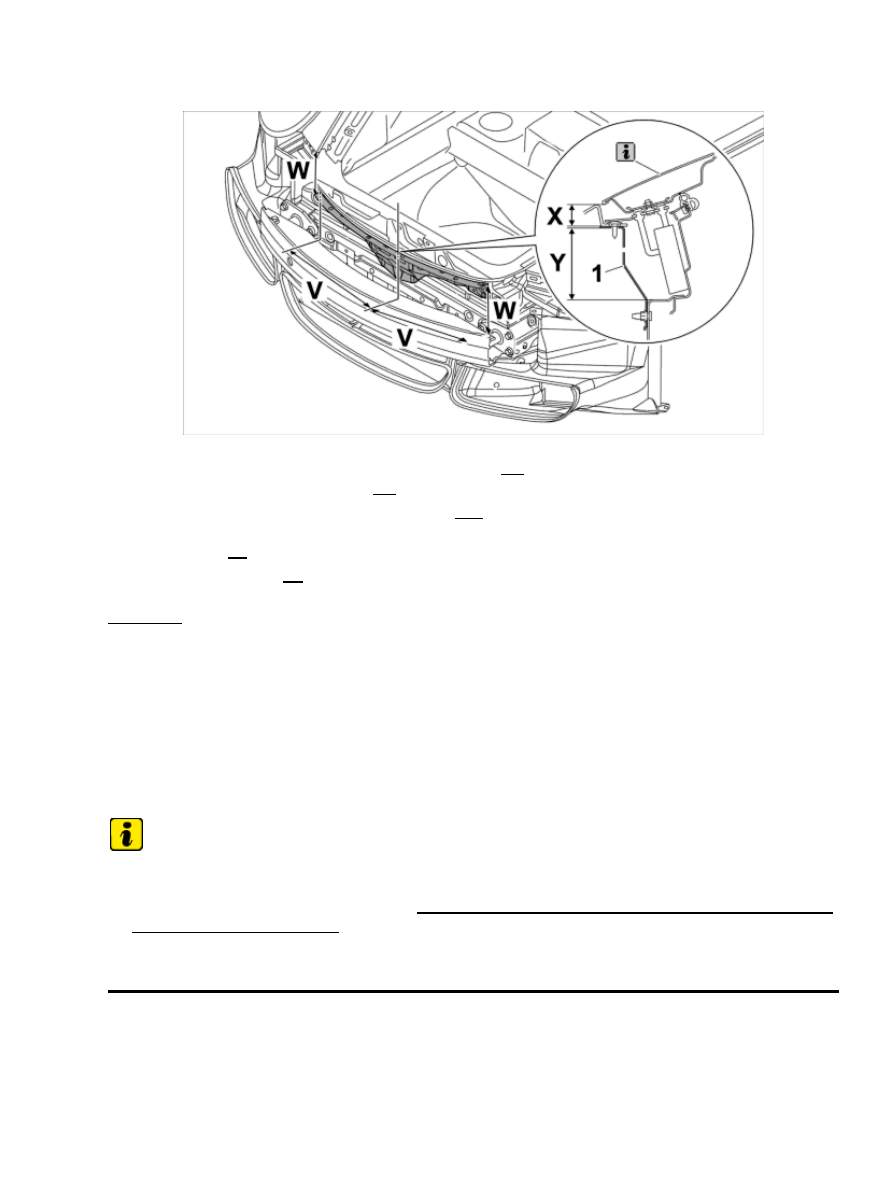

1. Adjust the front lid according to the joining plan. → 5  Diagram - body gap dimensions

Adjustment dimensions, front retaining strip

2. After fitting the front retaining strip, check the distance -X- → Adjustment dimension: 26 mm +/-1 mm

between front lid and retaining strip -Y- → Adjustment dimension: 91 mm +/-0.5 mm .

3. Check retaining strip on both sides to dimension -W- → adjustment dimension: 130 mm +/-0.5

mm

 to wing and adjust. The measurements can be changed by undoing or moving the front

retaining strip -1- .

4. Tighten fastening nuts -2- . Tightening torque → Final tightening: 7.5 ftlb.

Subsequent work

Subsequent work

Note

Only open for vehicles with garage door function.

1. Install control unit for garage door opener. → 967919 Removing and installing control unit for garage door

opener - chapter on "Installing"

2. Install the front spoiler. →  23 Removing and installing front spoiler - installing

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

Diagnostic system: reading out fault memory and activating systems

Adjusting front retaining strip

2403
