Diagnostic system: reading out fault memory and activating systems

Subsequent work

2349

61 91 19 Removing and installing additional flap - as
of MY 2005

- Preliminary work
- Removing additional flap
- Installing additional flap

Preliminary work

Preliminary work

Move convertible top to service position. → 6101IN IN -Convertible top in service position

Removing additional flap

Removing additional flap

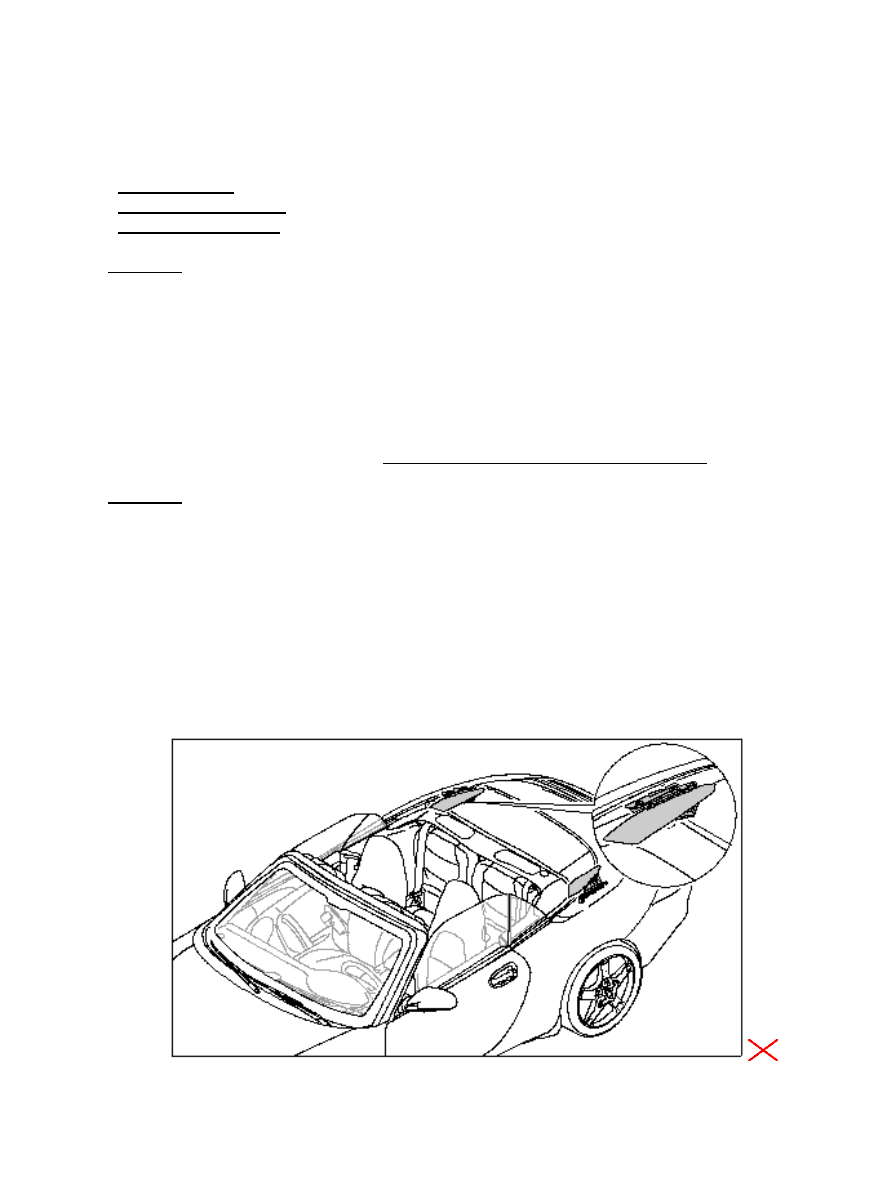

Installation Location:

Installation location additional flap

2350

Removing additional flap

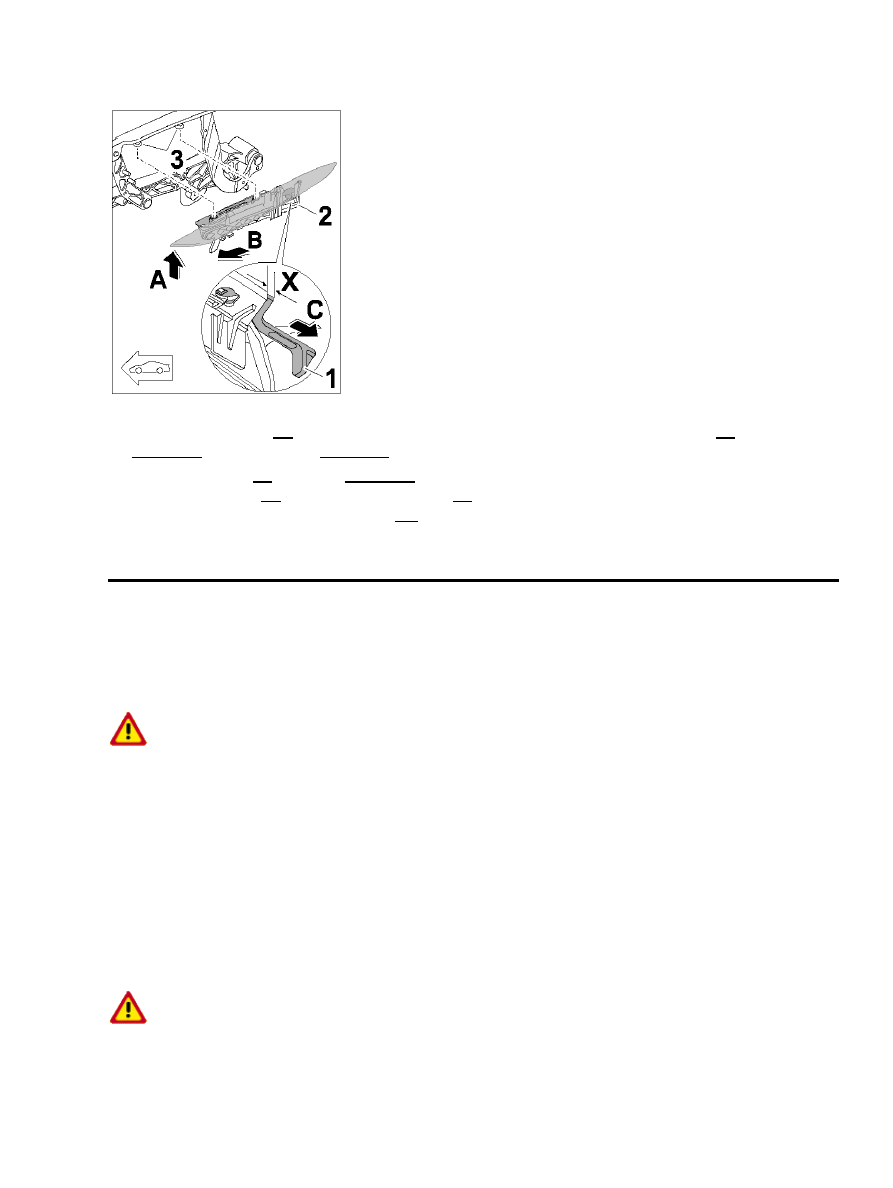

1. Press locking lever -1- toward the front -arrow A- (direction of travel).

2. Pull additional flap -2- backward -arrow B- and pull downwards out from hinge pins B of the

convertible-top compartment lid -3- -arrow C- .

Installing additional flap

Installing additional flap

Installation Location:

Installation location additional flap

Diagnostic system: reading out fault memory and activating systems

Removing additional flap

2351

Installing additional flap

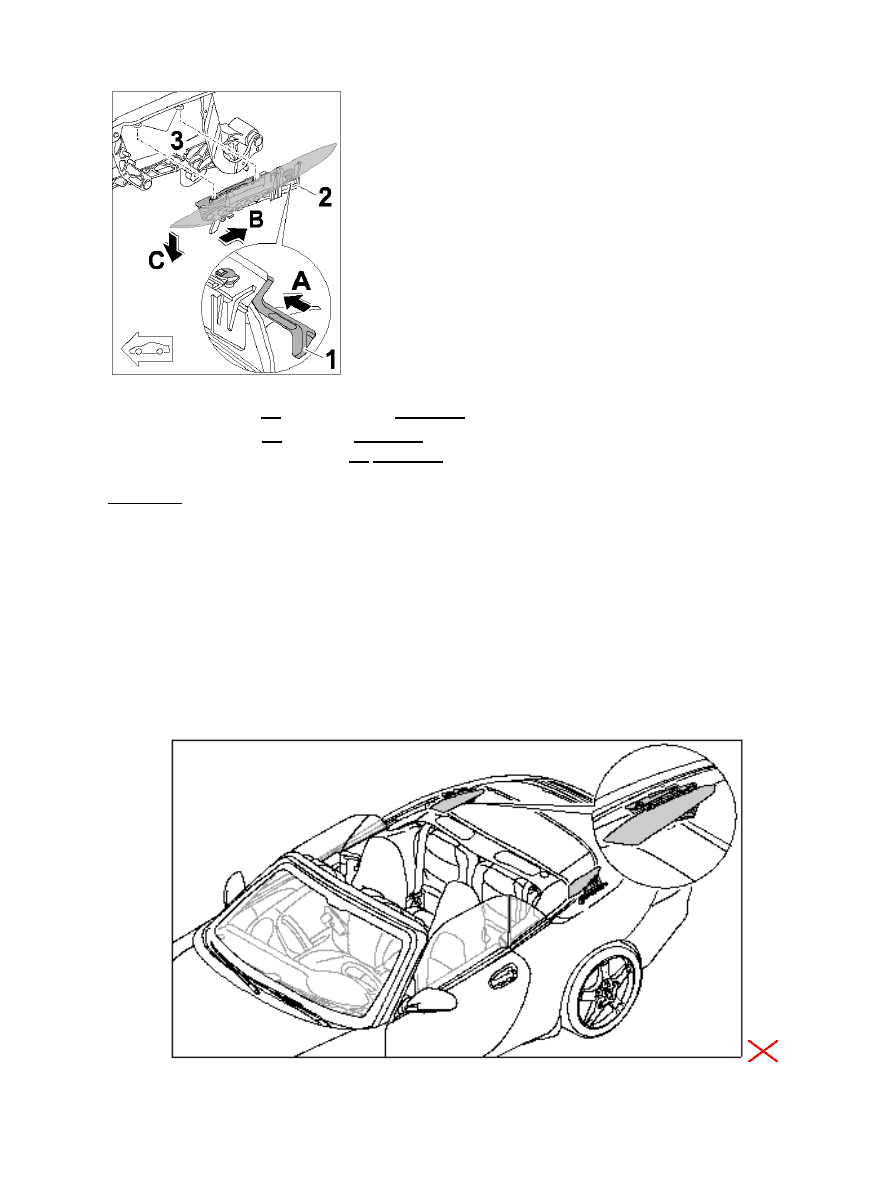

1. Insert additional flap -2- upward onto hinge pins of the convertible-top compartment lid -3-

-arrow A-

 and pull forward -arrow B- .

2. Pull locking lever -1- backward -arrow C- (against direction of travel) to lock the additional flap.

The additional flap -2- is locked if locking lever -1- projects approx. 5 to 8 mm over the body of the
additional flap in the area of dimension -X- .

3. End convertible top service position.
