Porshe 911 (997). Manual - part 547

Removing upper part of lid lock

6. Unscrew fastening screws -1- and remove upper part of lid lock

-2-

 .

Pulling off foam pads

7. Pull off foam pads -1- .

8. Loosen and remove adhesive residue using a silicone

remover.

Assembling convertible top compartment lid

Assembling convertible-top compartment lid

Sticking on foam pads

Note

Sealing surfaces must be clean and free of grease.

1. Remove protective paper -2- and stick new foam pads -1- at the positions marked.

Diagnostic system: reading out fault memory and activating systems

 Assembling convertible top compartment lid

2345

Removing upper part of lid lock

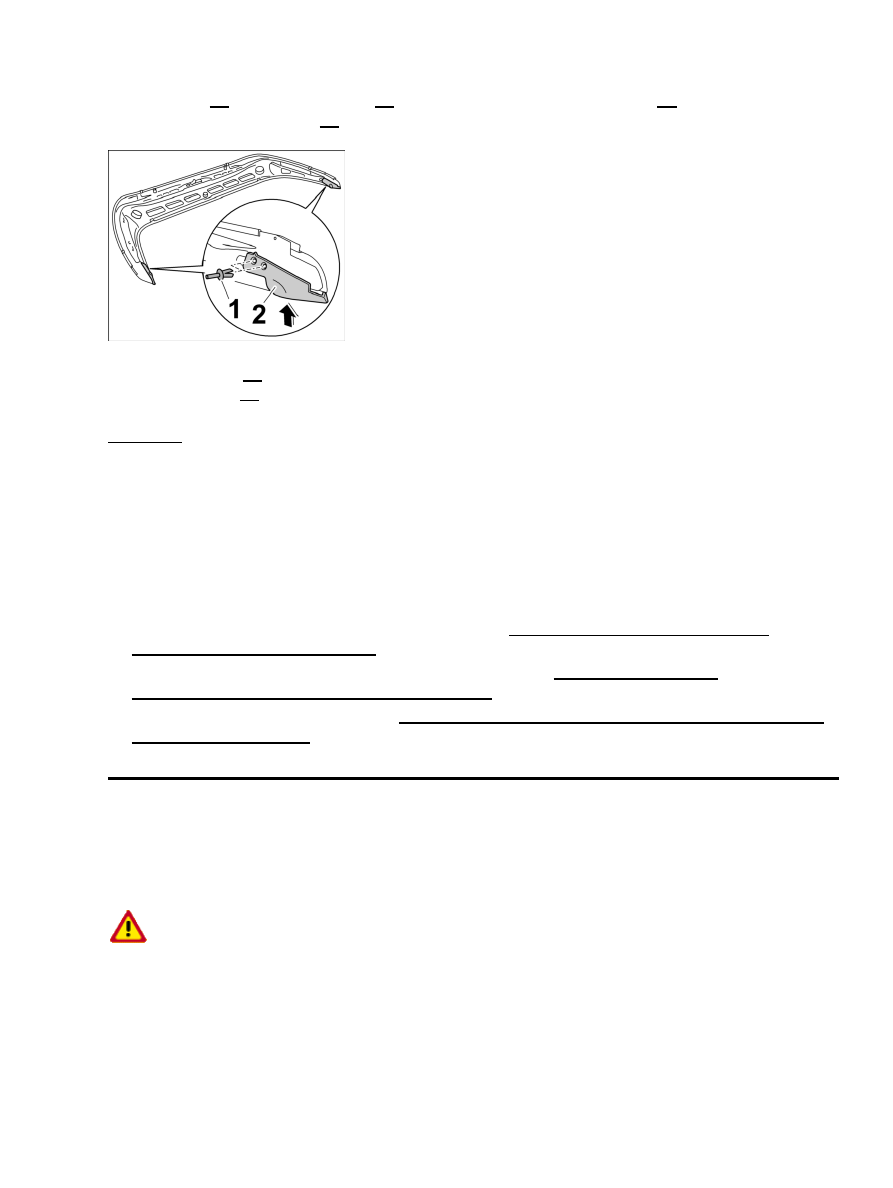

2. Position upper part of lid lock -1- on convertible-top compartment lid and screw down with the fastening

screws -2- . Tightening torque → Tightening torque: 9.7 (7 ftlb.) Nm

Installing rubber buffer

3. Screw in rubber buffer -1- in -direction of arrow- .

Fitting protective edging

4. Position protective edging -2- on convertible-top compartment lid -3- ( -arrow A- ) and secure

with clamps -1- ( -arrow B- ).

Fitting seal with sealing strip

Diagnostic system: reading out fault memory and activating systems

Assembling convertible-top compartment lid

2346

5. Attach seal -2- with the sealing strip -3- to the convertible-top compartment lid -4- and screw

down with fastening screws -1- .

Fitting protective edging

6. Position bracket -2- on convertible-top compartment lid at left and right, then secure bracket with

expanding clips -1- by pressing in the retaining pins.

Subsequent work

Subsequent work

1. Install wire harness for convertible-top compartment lid. → 972519 Removing and installing rear

wire harness - section on "Installing"

2. Install auxiliary brake light in convertible-top compartment lid. → 947019 Removing and

installing auxiliary brake light - section on "Installing"

3. Install convertible-top compartment lid. → 619019 Removing and installing convertible top compartment

lid - section on "Installing"
