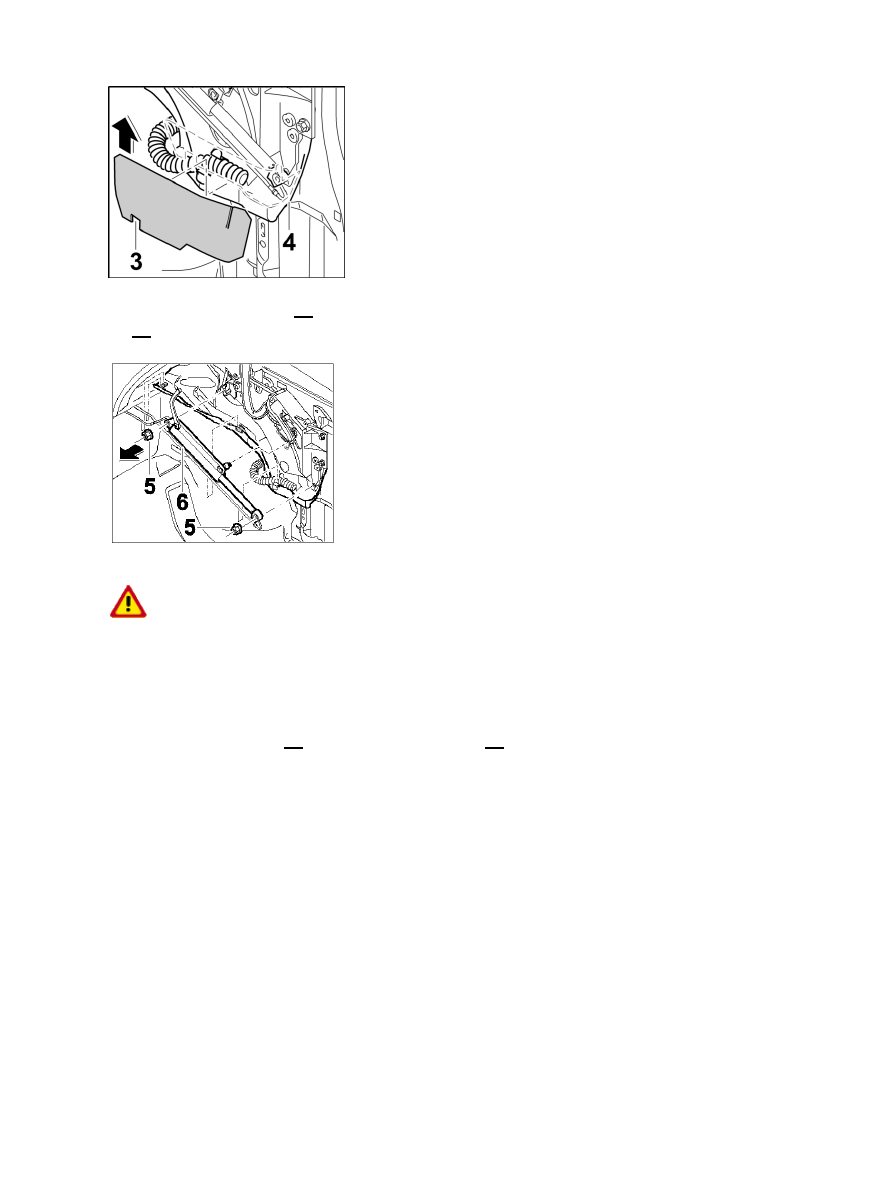

Removing protection plate

2. Pull the protection plate -3- upwards out of the chamber in the water drip pan

-4-

 .

Loosening hydraulic cylinder

ATTENTION

Damage to hydraulic lines.

→ Do not bend, trap or crush hydraulic lines when removing and installing.

→ Pay special attention when routing hydraulic lines in the clips.

3. Unscrew fastening nut -5- and lay hydraulic cylinder -6- with lever to one

side.

Disconnecting electric plug connection for hydraulic pump

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Loosening hydraulic cylinder

2325

Installation location for hydraulic pump

Disconnecting plug connection for hydraulic pump

1. Cut tie-wrap -1- around the wire harness for hydraulic pump.

2. Press lugs -arrows A- and disconnect electric plug connection -2- -arrow B- .

3. Unlock connector -2- by pressing the lug -arrow C- and push out of the bracket -arrow D- .

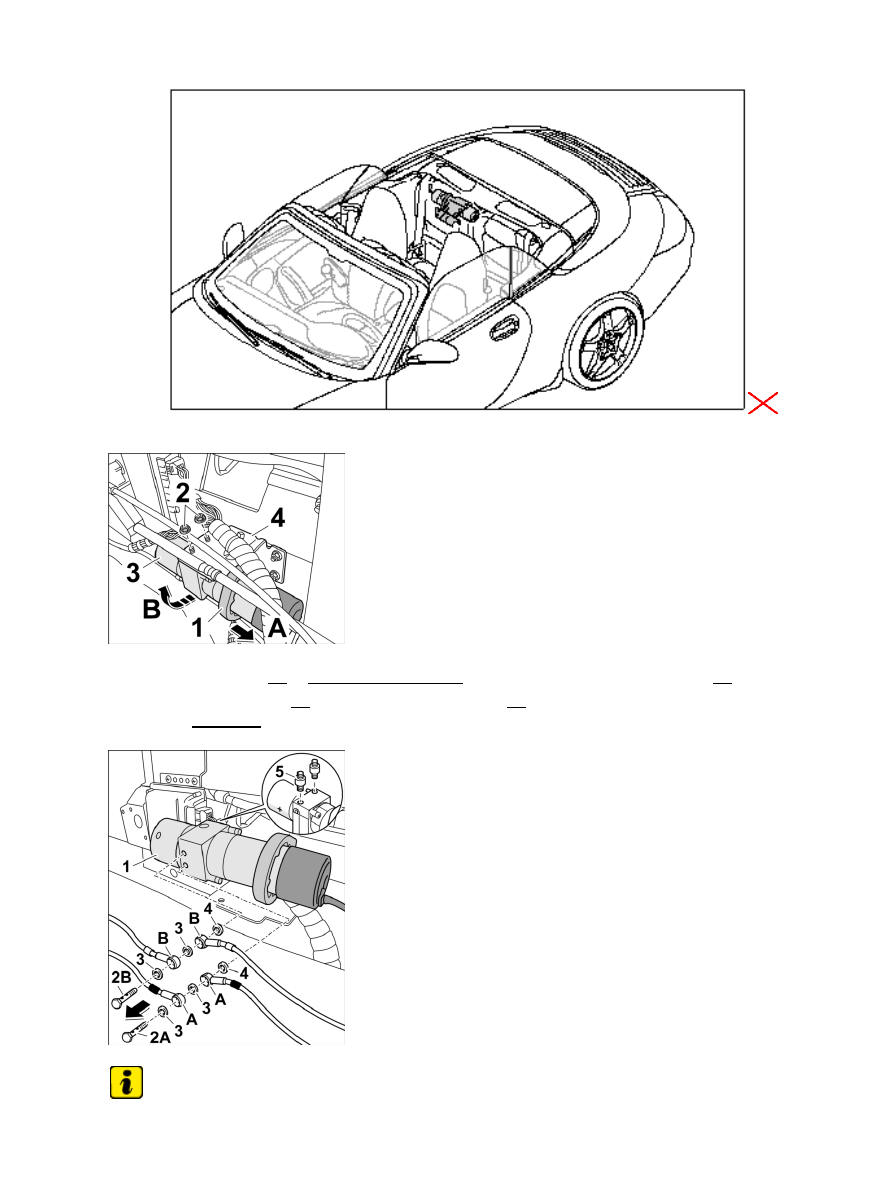

Removing hydraulic pump

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Disconnecting electric plug connection for hydraulic pump

2326

Installation location for hydraulic pump

Loosening hydraulic pump

1. Move rubber holder -1- in -direction of arrow A- from the support for hydraulic pump -4- .

2. Unscrew fastening nuts -2- and take out hydraulic pump -3- from the support for hydraulic pump

upwards -arrow B- .

Loosening hydraulic lines

Note

Diagnostic system: reading out fault memory and activating systems

Removing hydraulic pump

2327

Lay cloth under banjo bolt before unscrewing.

3. Unscrew banjo bolts -2A, 2B- on the hydraulic pump -1- and take out hydraulic lines -A, B- with

sealing rings -3, 4- .

4. Unscrew silent mount

-5-

 .

Installing hydraulic cylinder

Installing hydraulic cylinder

Installation Location:

Installation position for hydraulic cylinder

Installing hydraulic cylinder

Diagnostic system: reading out fault memory and activating systems

 Installing hydraulic cylinder

2328
