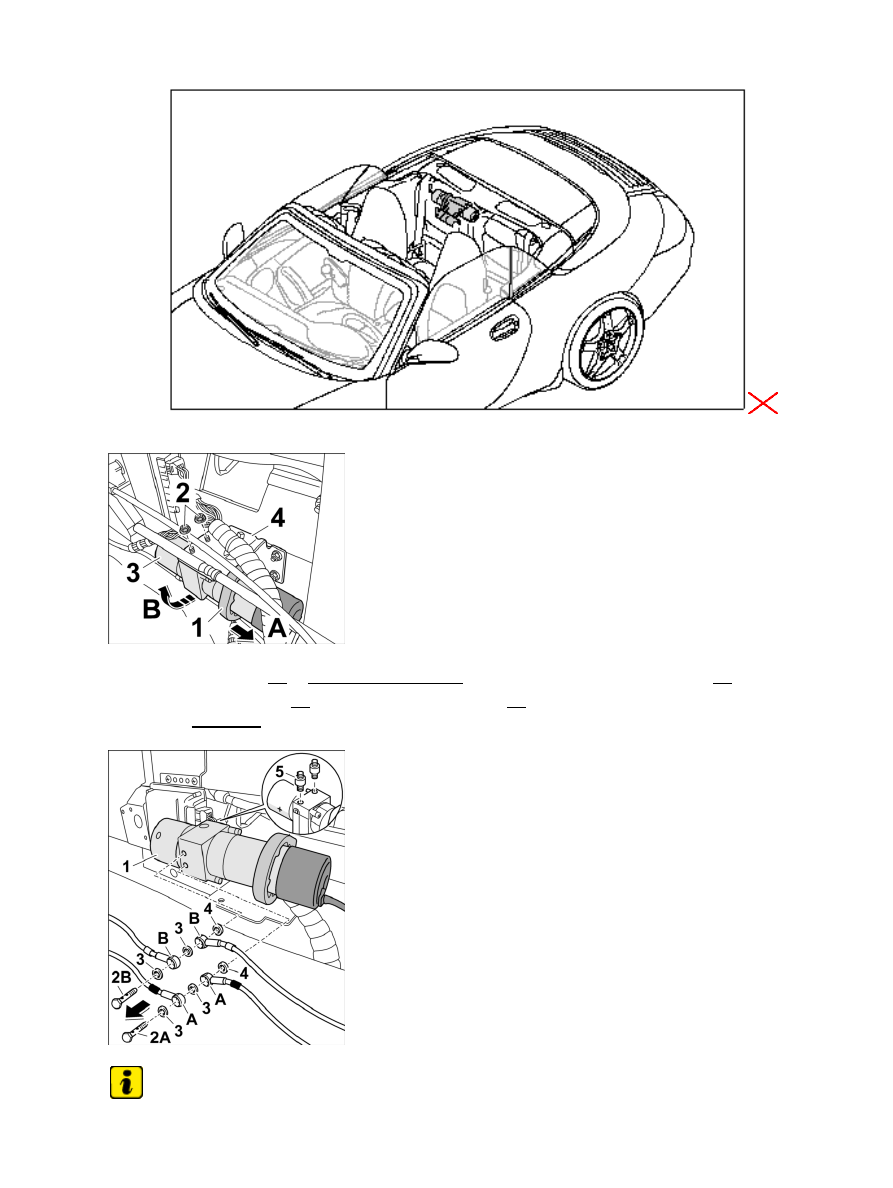

Installation location for hydraulic pump

Loosening hydraulic pump

1. Move rubber holder -1- in -direction of arrow A- from the support for hydraulic pump -4- .

2. Unscrew fastening nuts -2- and take out hydraulic pump -3- from the support for hydraulic pump

upwards -arrow B- .

Loosening hydraulic lines

Note

Diagnostic system: reading out fault memory and activating systems

Removing hydraulic pump

2313

Lay cloth under banjo bolt before unscrewing.

3. Unscrew banjo bolts -2A, 2B- on the hydraulic pump -1- and take out hydraulic lines -A, B- with

sealing rings -3, 4- .

4. Unscrew silent mount

-5-

 .

Removing support for hydraulic pump

Installation Location:

Installation location for hydraulic pump

Removing support for hydraulic pump

1. Release fixing clip -1- by pressing the lugs on the underside of the support together -2- and pull wire

harness -3- upwards -arrow A- .

2. Undo fastening nuts -4- and take off support for hydraulic pump -2- -arrow B- .

Diagnostic system: reading out fault memory and activating systems

Removing support for hydraulic pump

2314

Installing hydraulic pump

Installing support for hydraulic pump

Installation Location:

Installation location for hydraulic pump

Installing support for hydraulic pump

1. Position support for hydraulic pump -2- on frame for roll-over protection system -arrow A- and screw

down the fastening nuts -4- . Tightening torque → Tightening torque : 7.5 ftlb.

2. Press fixing clip -1- on wire harness -3- in the support -arrow B- .

Installing hydraulic pump

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Installing hydraulic pump

2315

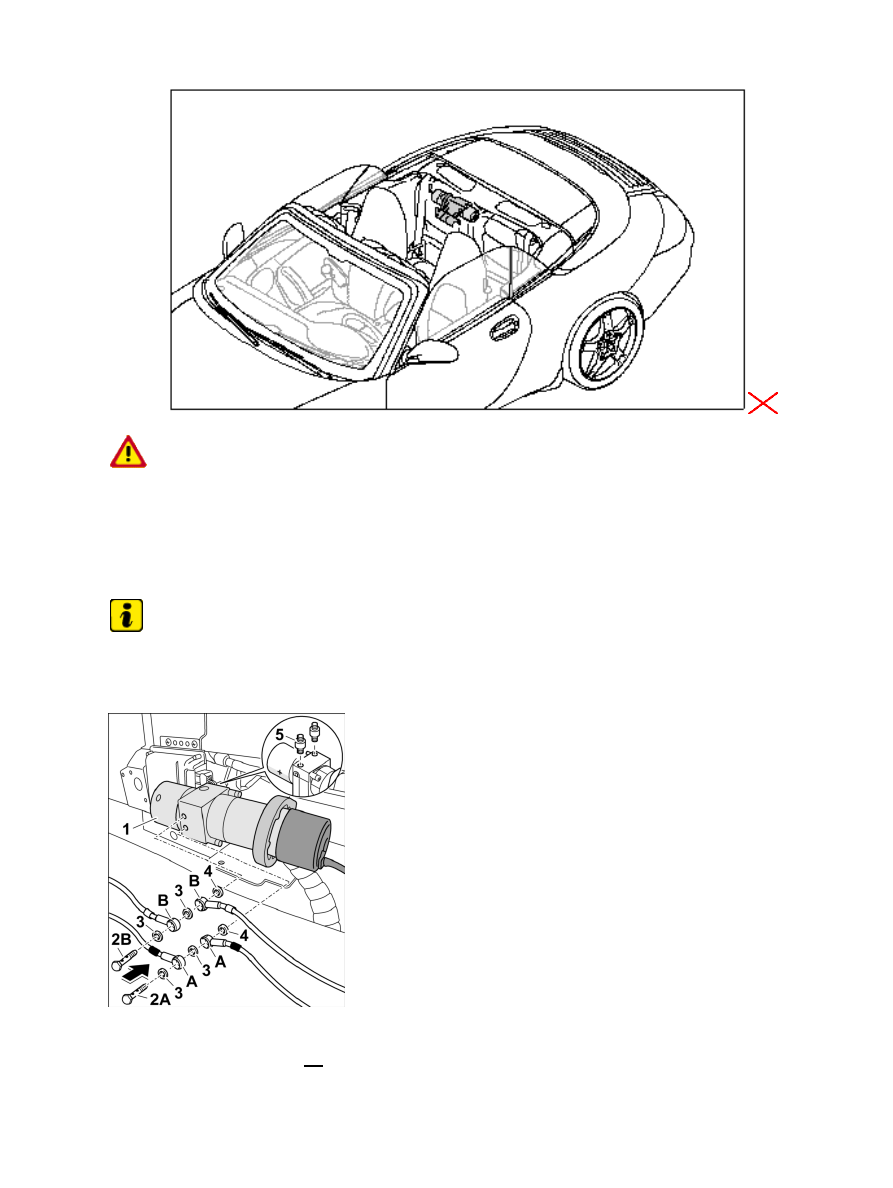

Installation location for hydraulic pump

ATTENTION

Damage to hydraulic lines.

→ Do not bend, trap or crush hydraulic lines when removing and installing.

→ Pay special attention when routing hydraulic lines in the clips.

Note

Always replace sealing rings.

Connecting hydraulic line

1. Screw down silent mount -5- .

2.

Diagnostic system: reading out fault memory and activating systems

Installing hydraulic pump
