Porshe 911 (997). Manual - part 536

Installation location for locking hook cable

Disengaging cable for locking hook

1. Loosen cable for locking hook -1- on the hexagon nut -2- and swivel the nipple from the driving

mechanism -3- upwards and pull out.

Removing cable for locking hook

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Disengaging cable for locking hook

2301

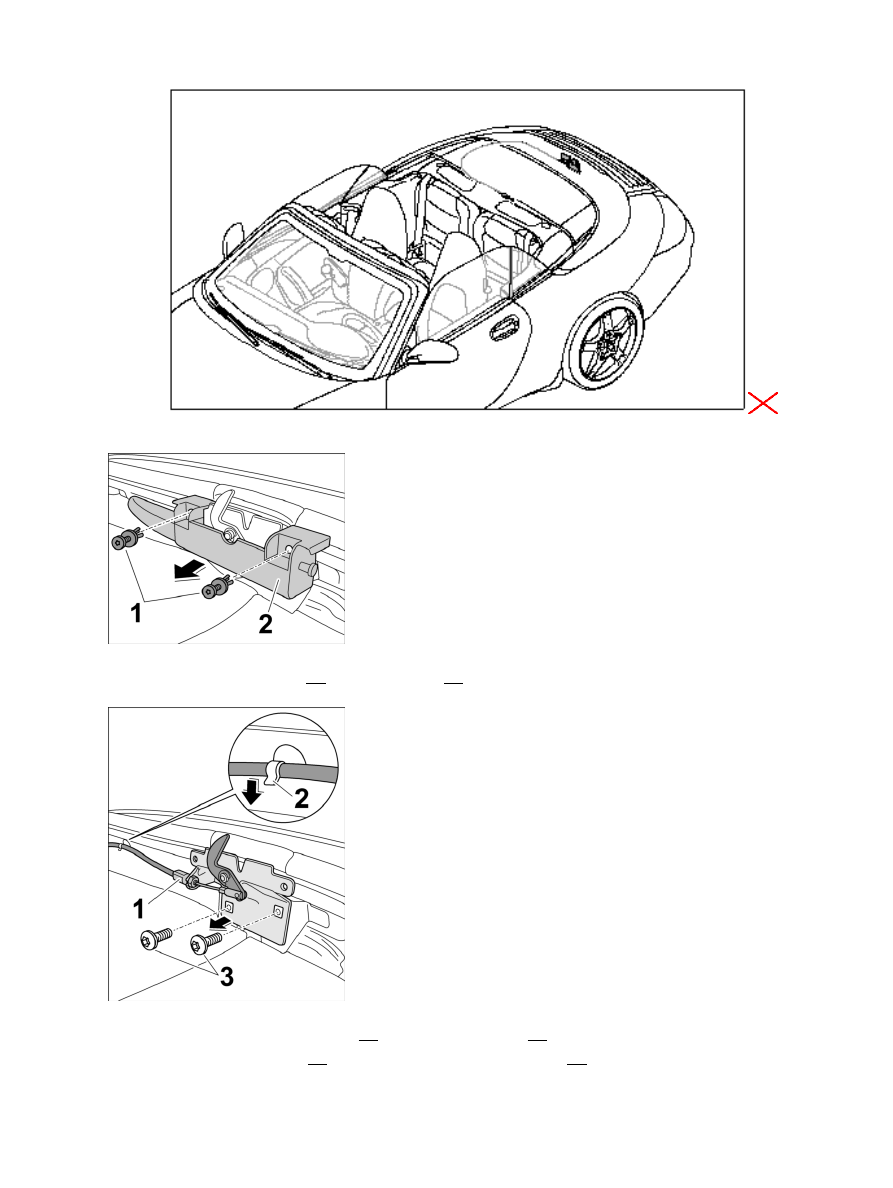

Installation location for locking hook cable

Removing trim

1. Unscrew expansion rivets -1- and take off trim -2- .

Removing cable for locking hook

2. Disengage cable for locking hook -1- from the cable holder -2- .

3. Unscrew fastening screws -3- and take off cable for locking hook -1- with

support.

Diagnostic system: reading out fault memory and activating systems

Removing cable for locking hook

2302

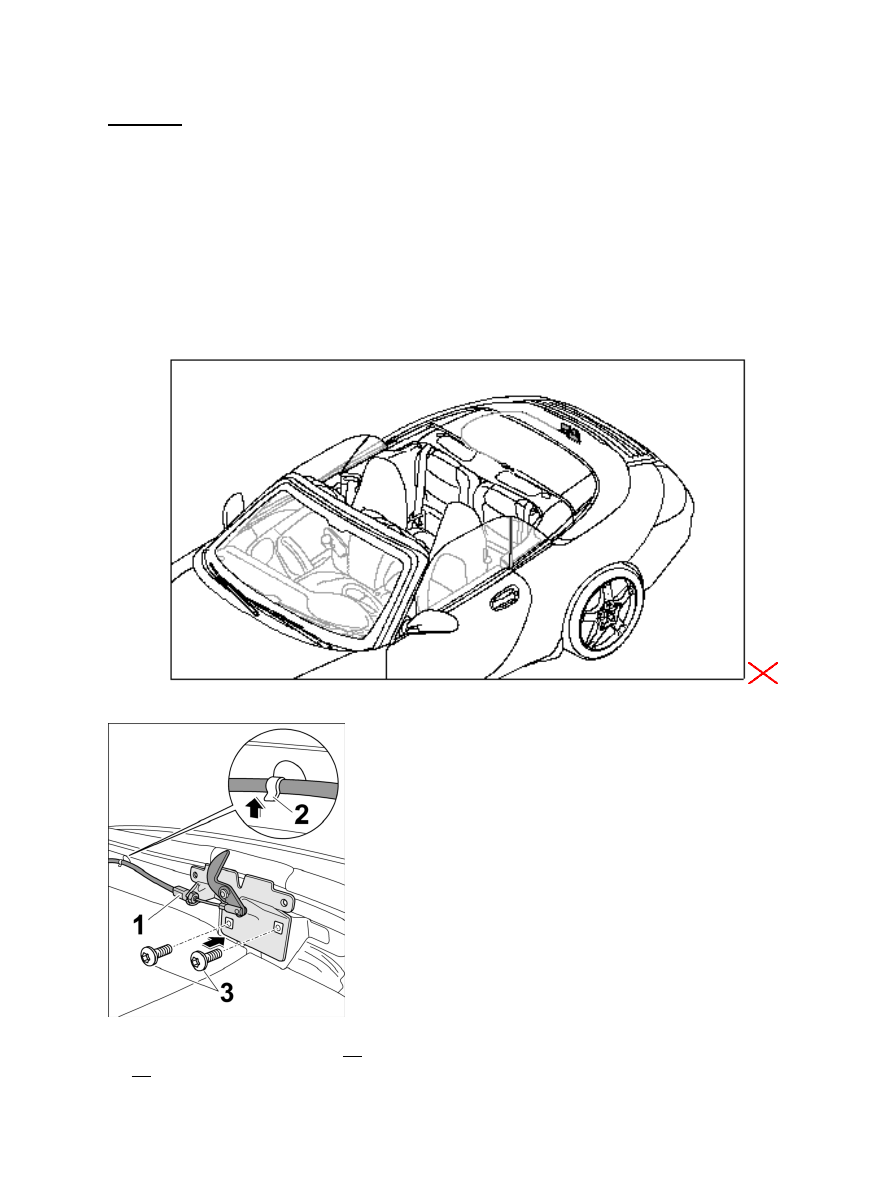

Installing cable for locking hook

Installing cable for locking hook

Installation Location:

Installation location for locking hook cable

Installing cable for locking hook

1. Position cable for locking hook -1- with support on the body and screw down the fastening screws

-3-

 . Tightening torque → Tightening torque: 7.5 ftlb.

Diagnostic system: reading out fault memory and activating systems

 Installing cable for locking hook

2303

2. Engage cable for locking hook -1- to the cable holder -2- .

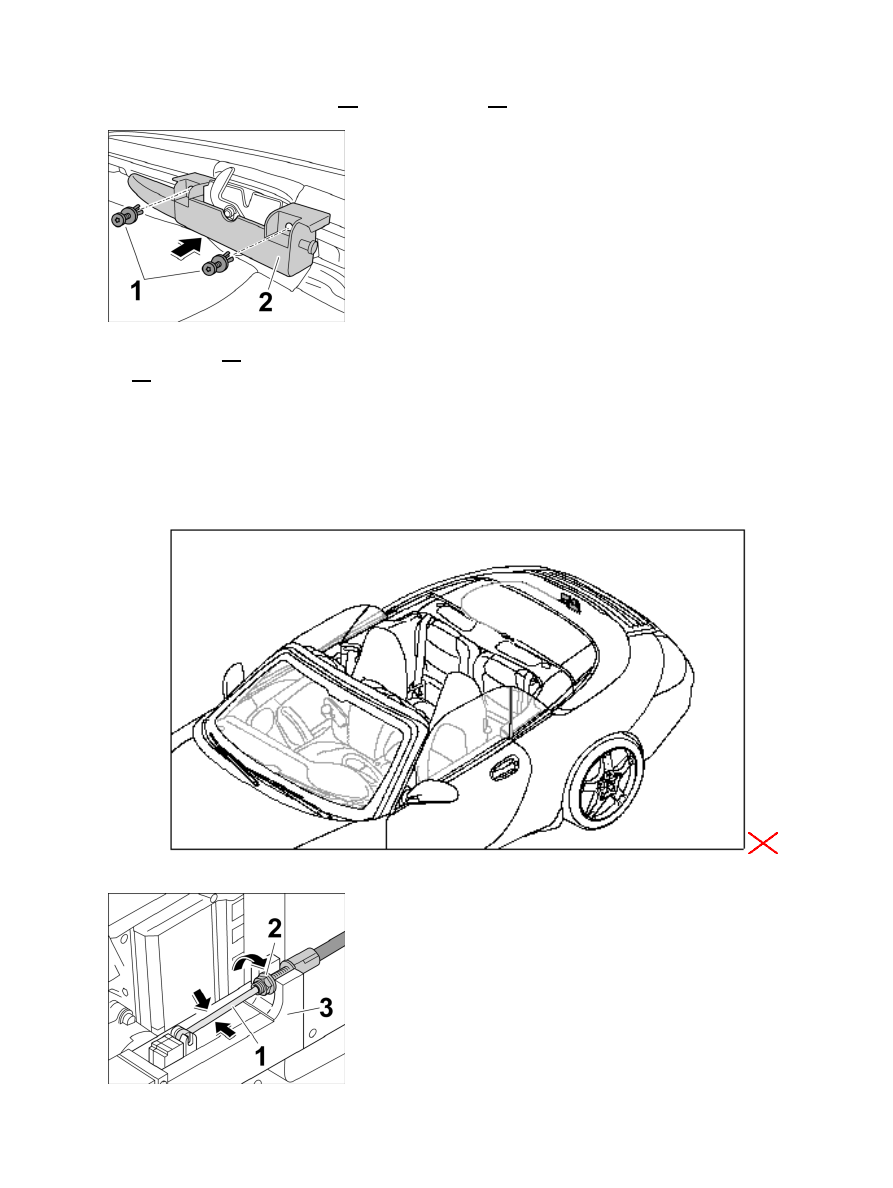

Installing trim

3. Position trim -2- and secure with the expansion rivets

-1-

 .

Engaging cable for locking hook

Installation Location:

Installation location for locking hook cable

Diagnostic system: reading out fault memory and activating systems

Installing cable for locking hook

2304
