61 40 19 Removing and installing flap motor - as of
MY 2005

- Preliminary work
- Removing flap motor
- Installing flap motor
- Subsequent work

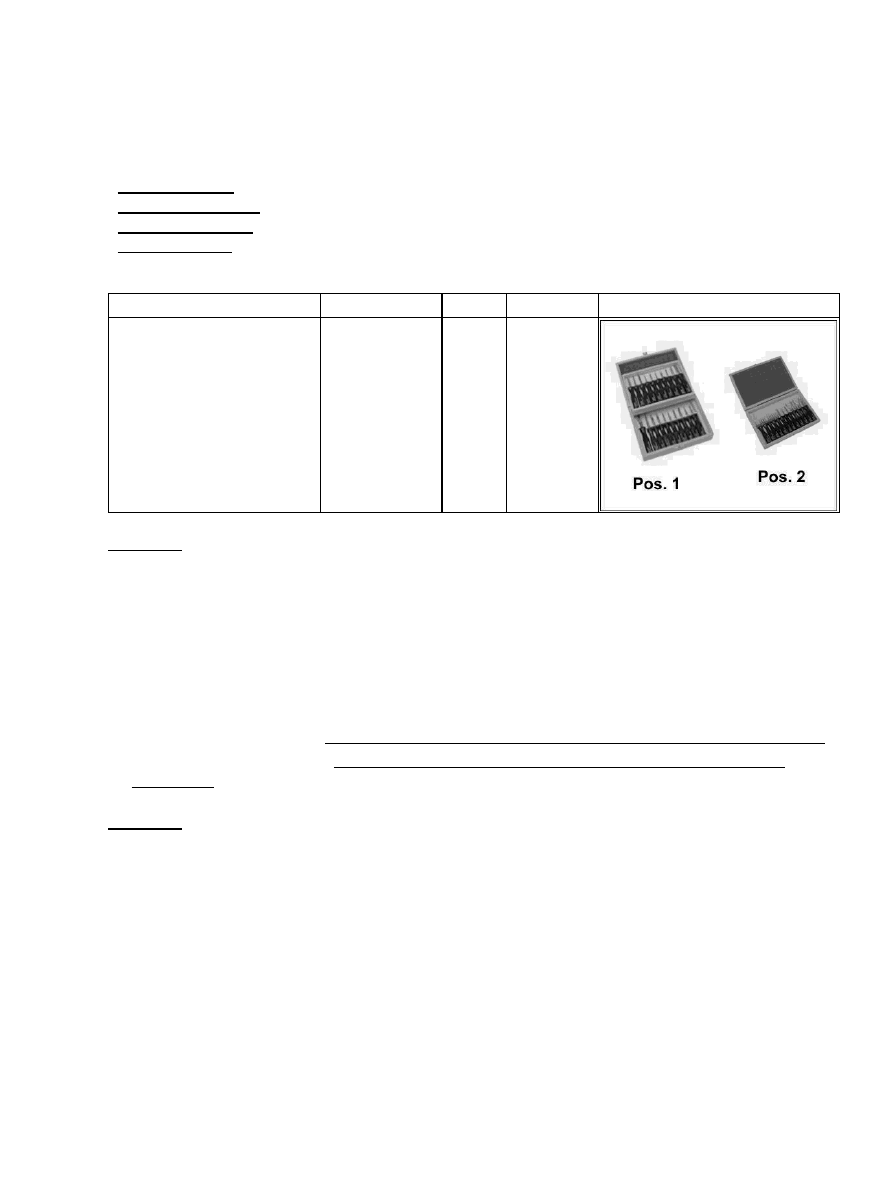

Tools

Designation

Type

Number Explanation

press-out and unlocking tools
for flat and round plug
connections of every size

commercially
available tool

NR.155

Preliminary work

Preliminary work

1. Remove rear side panel flap. → 614219 Removing and installing rear side panel - chapter on "Removing"

2. Remove microswitch for flap. → 614119 Removing and installing microswitch for flap - chapter on

"Removing"

Removing flap motor

Removing flap motor

Installation Location:

2245

Installation position of flap motor

Releasing cable connections

1. Release the two flat connectors of the electric connecting lines -1- using press-out tool -2-

press-out and unlocking tools for flat and round plug connections of every size NR.155
-Arrow A-

 and pull out from the central connector -3- -Arrow B- .

Turning spindle via emergency release

2. Insert Allen key -1- into the emergency release -2- -Arrow A- and keep turning to the right -Arrow

Diagnostic system: reading out fault memory and activating systems

Removing flap motor

2246

B-

 until access can be gained to the four fastening screws -Arrow C- .

Removing motor

3. Loosen the four fastening screws -1- of the motor and remove motor to the side -arrows- from the bracket

for the rear side panel flap -2- and from the spindle mounting -3- .

Installing flap motor

Installing flap motor

Inserting motor

1. Insert motor in the spindle mounting -1- and in the bracket for the rear panel flap -2- .

2. Screw down motor with the four fastening screws -3- .

Diagnostic system: reading out fault memory and activating systems

 Installing flap motor

2247

Making cable connections

Note

When installing the flat connectors with the electric connecting lines, the correct installation position in the
central connector (see wiring diagrams) must be observed.

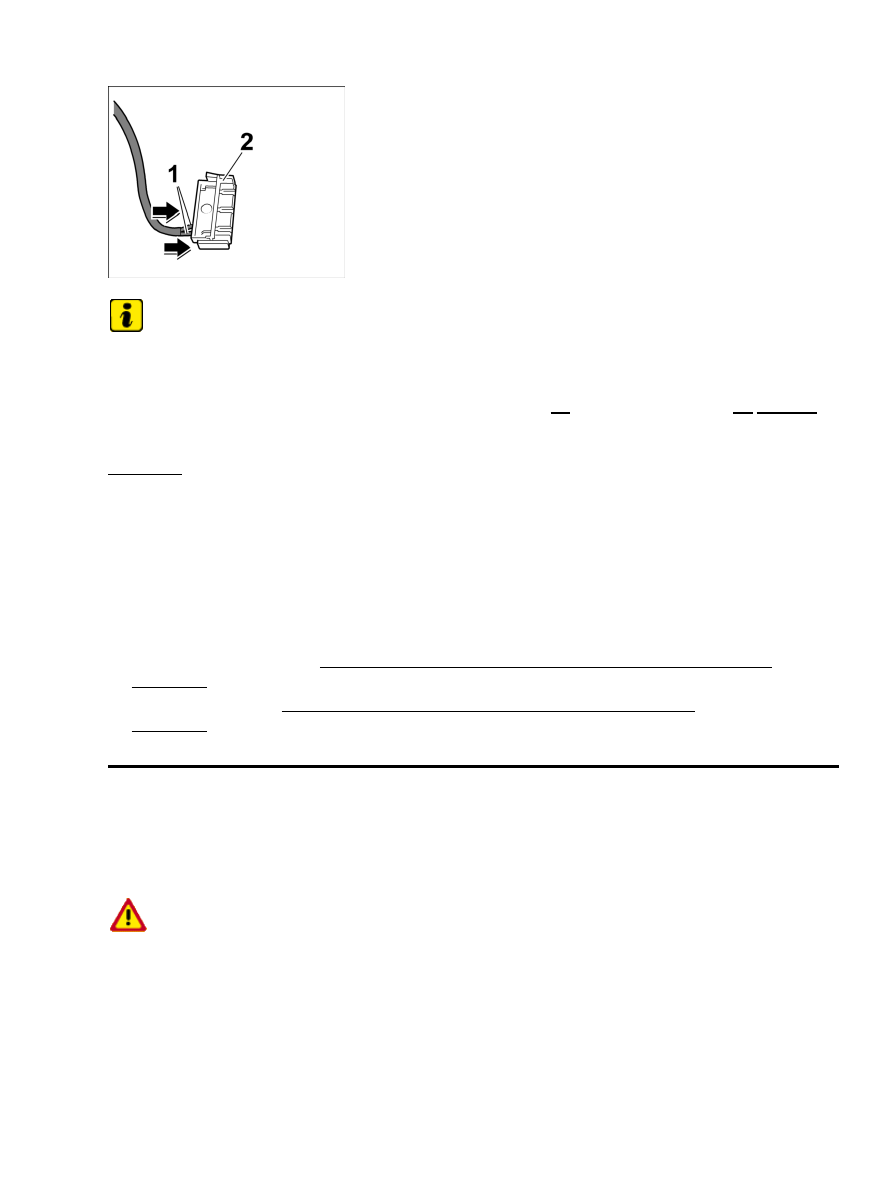

3. Insert the two flat connectors with the electric connecting lines -1- in the central connector -2- -arrows-

until they are felt to engage.

Subsequent work

Subsequent work

1. Install microswitch for flap. → 614119 Removing and installing microswitch for flap - chapter on

"Installing"

2. Install side panel flap. → 614219 Removing and installing side panel flap - chapter on

"Installing"

997310, 997311, 997320, 997321, 997610, 997611, 997620, 997621
