Fold the convertible-top material around the roof frame edge without wrinkles. The
convertible-top covering is initially held with fixing clips.

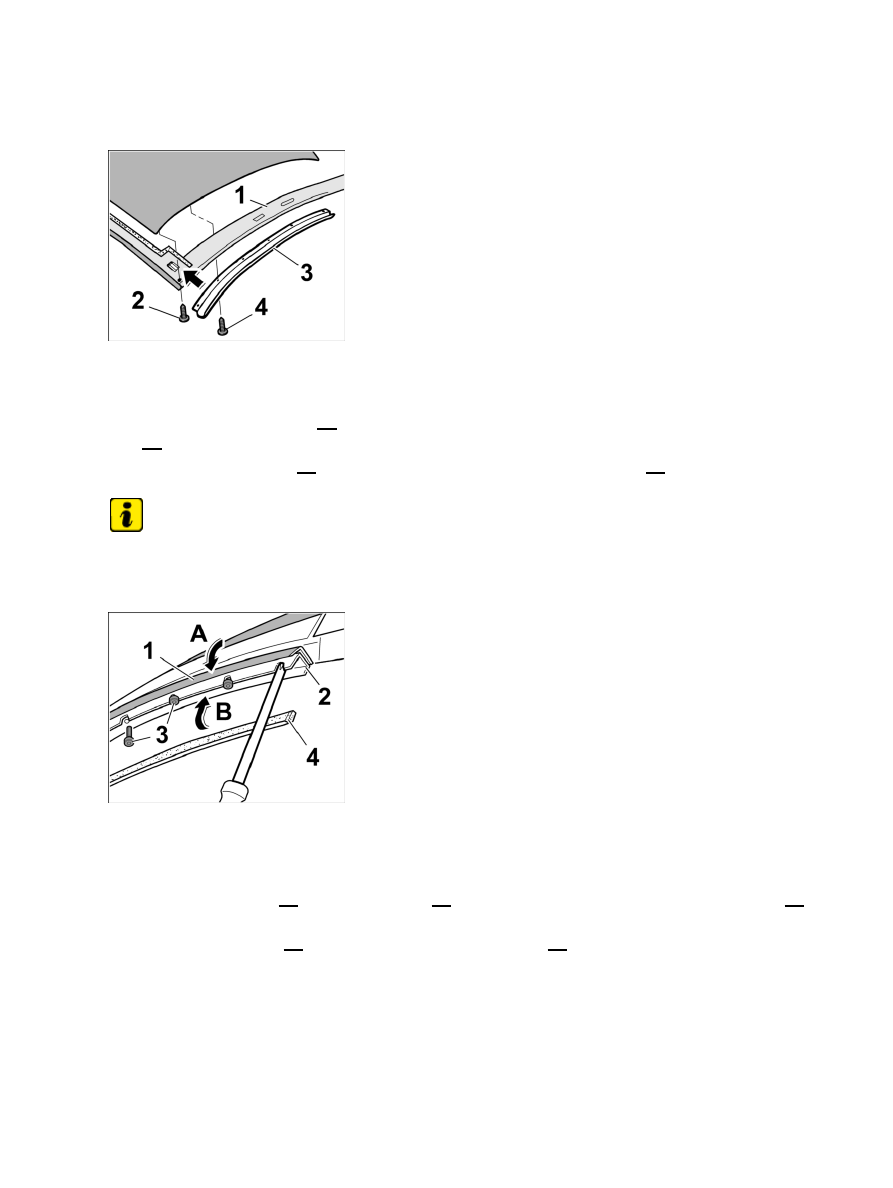

Fastening retaining strip and convertible-top seal

9. Fasten retaining strip and convertible-top seal on roof frame 1.

9.1. Remove fixing clips.

9.2. Insert convertible top seal -1- at the front corners into roof frame and tighten with fastening screws

-2-

 . Tightening torque → Tightening torque : 1.7 (1.5 ftlb.) Nm

9.3. Position retaining strip -3- on roof frame 1 and tighten with fastening screw -4- . Tightening

torque → Tightening torque : 3.5 (2.5 ftlb.) Nm

Note

The seal on the roof frame is in two parts.

Fastening seals and retaining strip

10. Fasten seals and retaining strip at the sides of roof

frame.

10.1. Position upper seal -1- onto retaining strip -2- and screw on to roof frame with fastening screws -3- .

Tightening torque → Tightening torque: 2.8 (2.0 ftlb.) Nm

10.2. Press the lower seal -4- into the profile of the retaining strip -2- .

Diagnostic system: reading out fault memory and activating systems

Installing convertible-top covering

2229

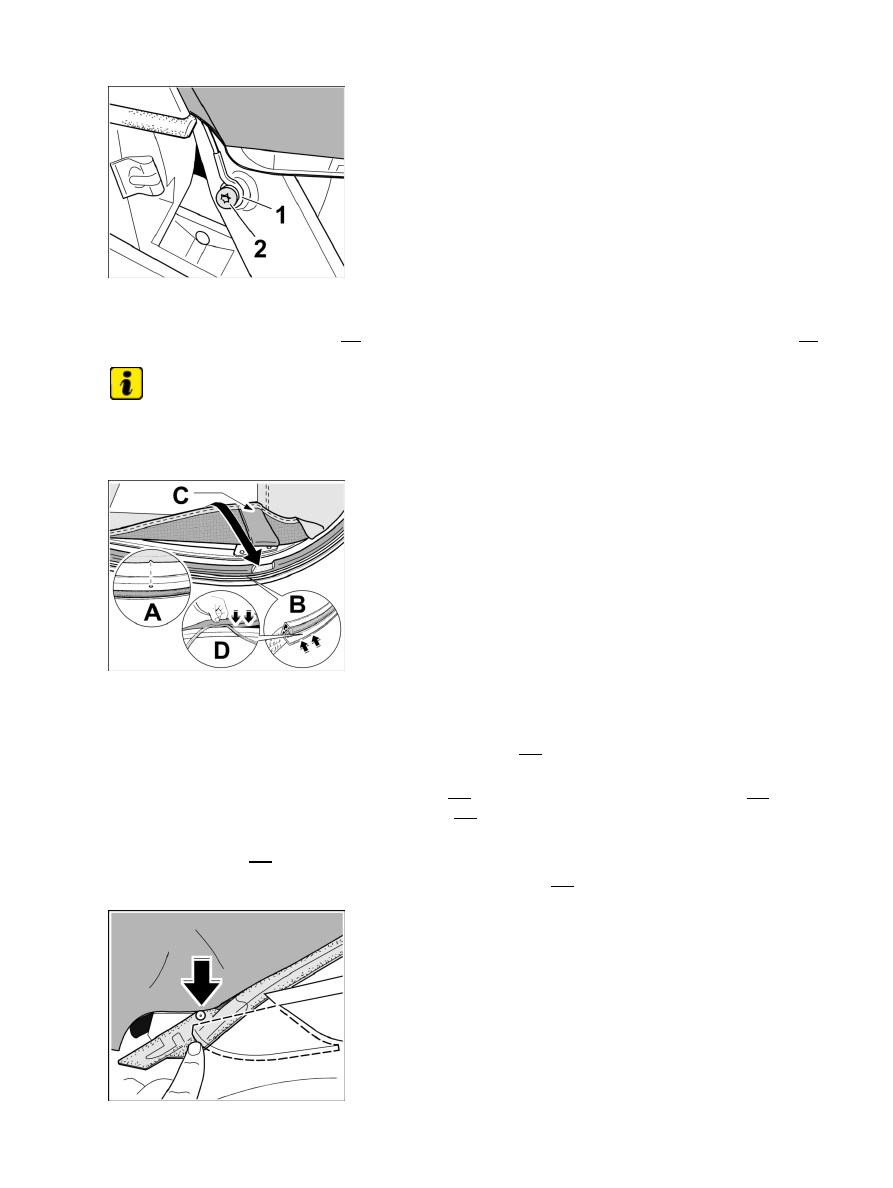

Tension cable on convertible-top covering

11. Fasten tension cable of convertible-top covering.

11.1. Position tension cable eyelet -1- on main folding top bow and screw in place with fastening screw -2- .

Tightening torque → Tightening torque: 7 (5 ftlb.) Nm

Note

Cut-outs have been integrated to the right and left of the additional seal.

Fastening convertible-top covering at the tension bow

12. Fasten convertible-top covering at the tension bow.

12.1. Integrate the additional seal parallel to the tension strap -C- into the cut-outs on the right and left using

a knife.

12.2. Press tightening strip centre (notch marking) -A- into the lower groove of the tension bow -B-

(centre of tension bow is identified by a hole) -A- .

12.3. The reference overlap seams of the convertible-top covering must be positioned and centralised in the

additional seal -C- cut-outs on the left and right.

12.4. Secure the convertible-top covering by tapping in the piping -D- .

Diagnostic system: reading out fault memory and activating systems

Installing convertible-top covering

2230

Fitting tension bow seal

13. Fit tension bow seal.

13.1. Press tension bow seal into the lower groove of the tension bow and fasten at both ends with the

fastening screws. Tightening torque → Tightening torque: 5 (3.5 ftlb.) Nm

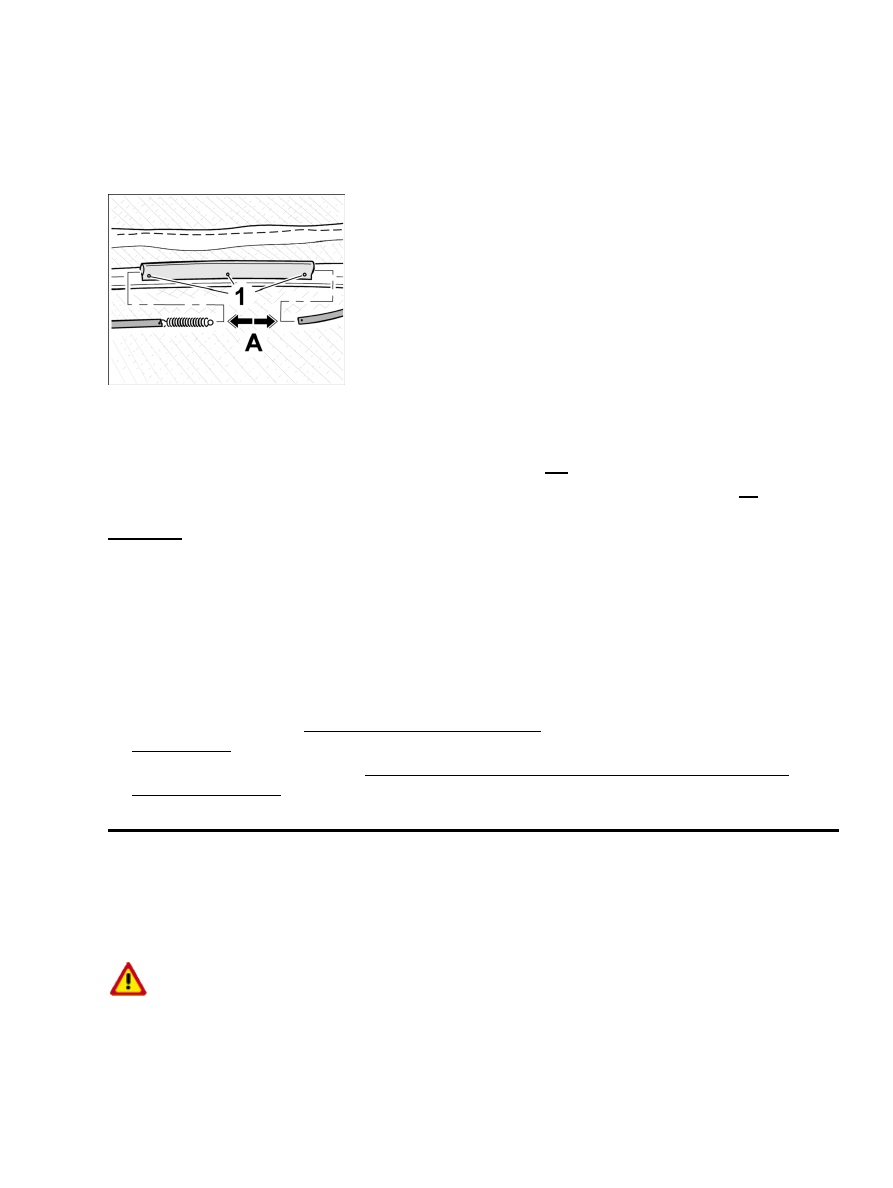

Fastening tension strap at the main folding top bow

14. Fasten tension strap at the main folding top bow.

14.1. Pull the left tension strap through the fabric pocket on the main folding top bow.

14.2. Engage both ends of the tension straps in the tension spring -A- .

14.3. Position fabric pocket on main folding top bow and screw in place with fastening screws -1- .

Subsequent work

Subsequent work

1. Calibrate convertible top. → 6101K2 K2 -Calibrating cabriolet

convertible top

2. Install convertible top inner lining. → 610919 Removing and installing convertible top inner lining -

chapter on "Installing"

997310, 997311, 997320, 997321, 997610, 997611, 997620, 997621
