Porshe 911 (997). Manual - part 473

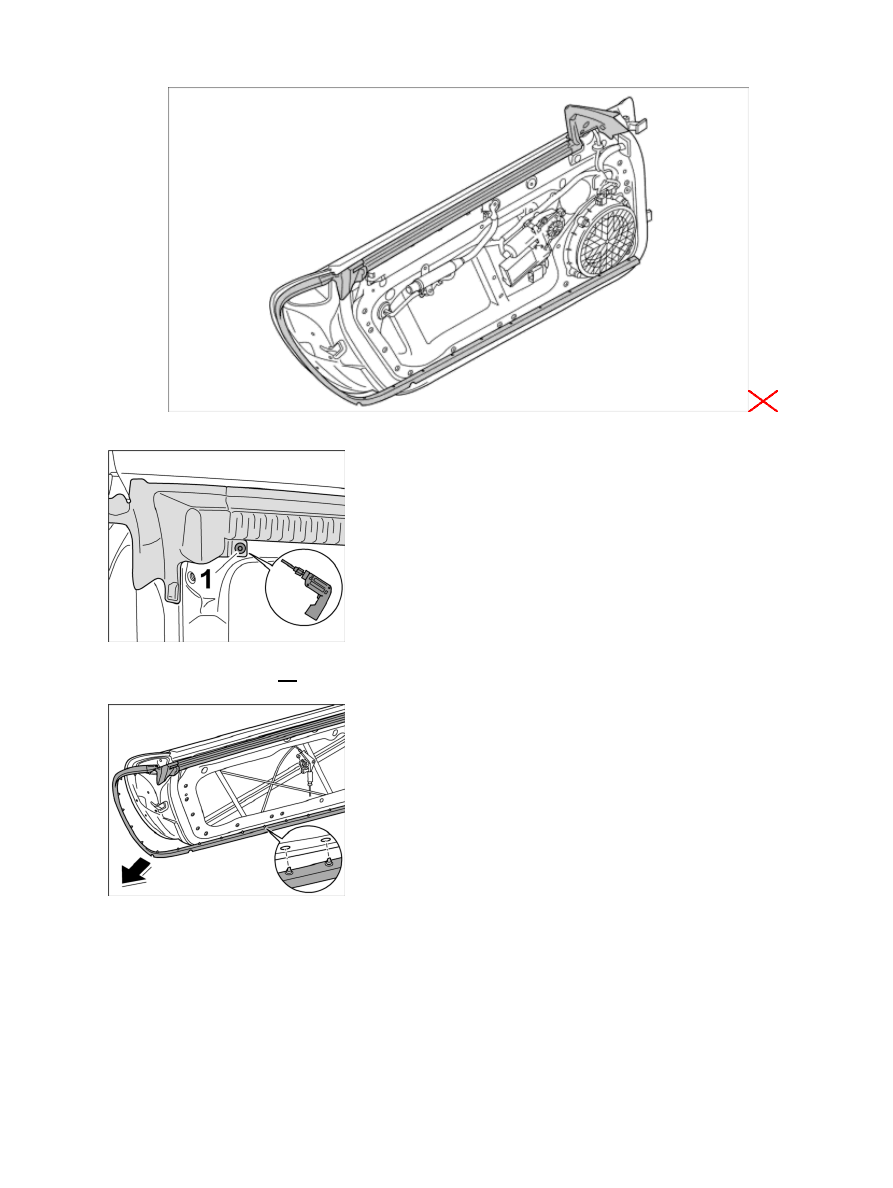

Installation position of rubber seal for door

Boring out tubular rivet

1. Bore out tubular rivet -1- .

Unclipping rubber seal

2. Carefully pull the rubber seal out of the clips along the door

contour.

Diagnostic system: reading out fault memory and activating systems

Removing rubber seal for door

2049

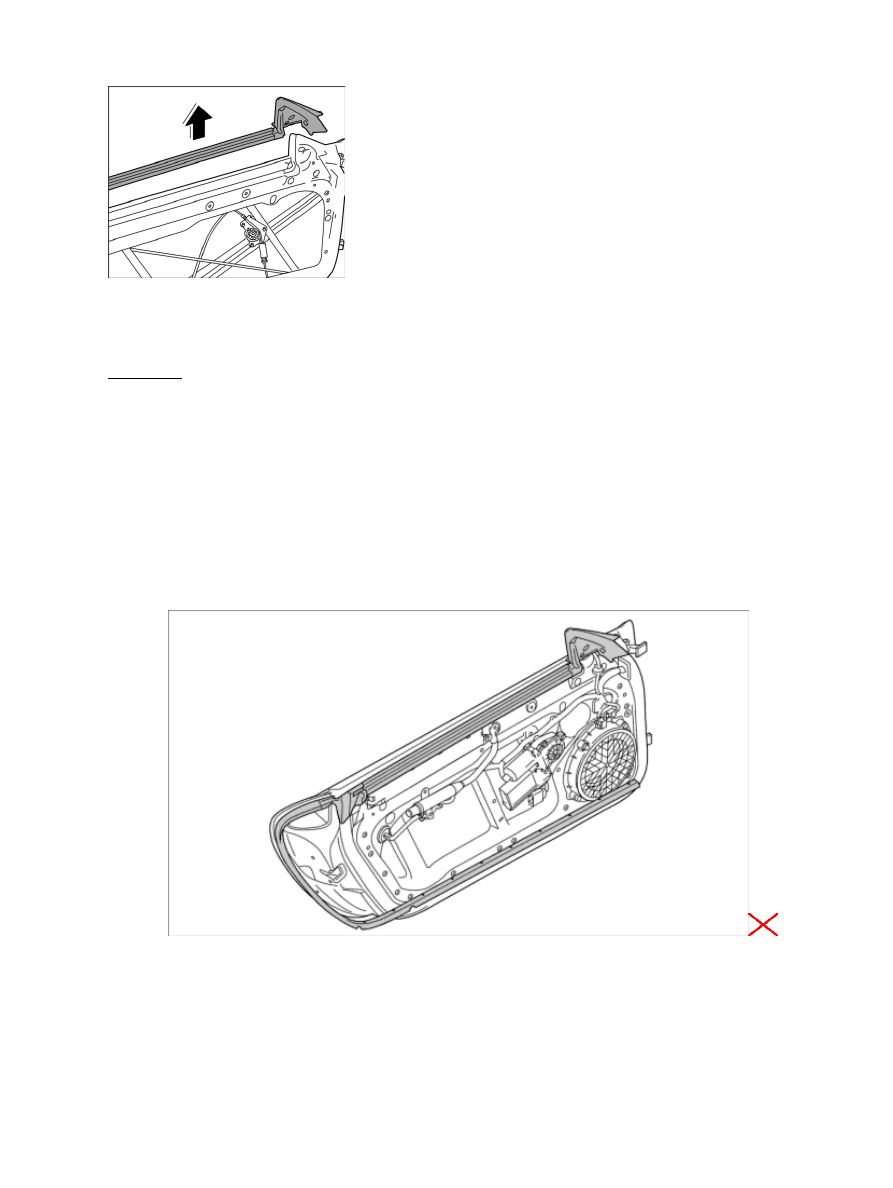

Pulling off rubber seal

3. Pull the rubber seal off the bead of the door

channel.

Installing rubber seal for door

Installing rubber seal for door

Installation Location:

Installation position of rubber seal for door

Diagnostic system: reading out fault memory and activating systems

 Installing rubber seal for door

2050

Pressing in rubber seal

Note

Pay attention to correct assembly (water drain).

•

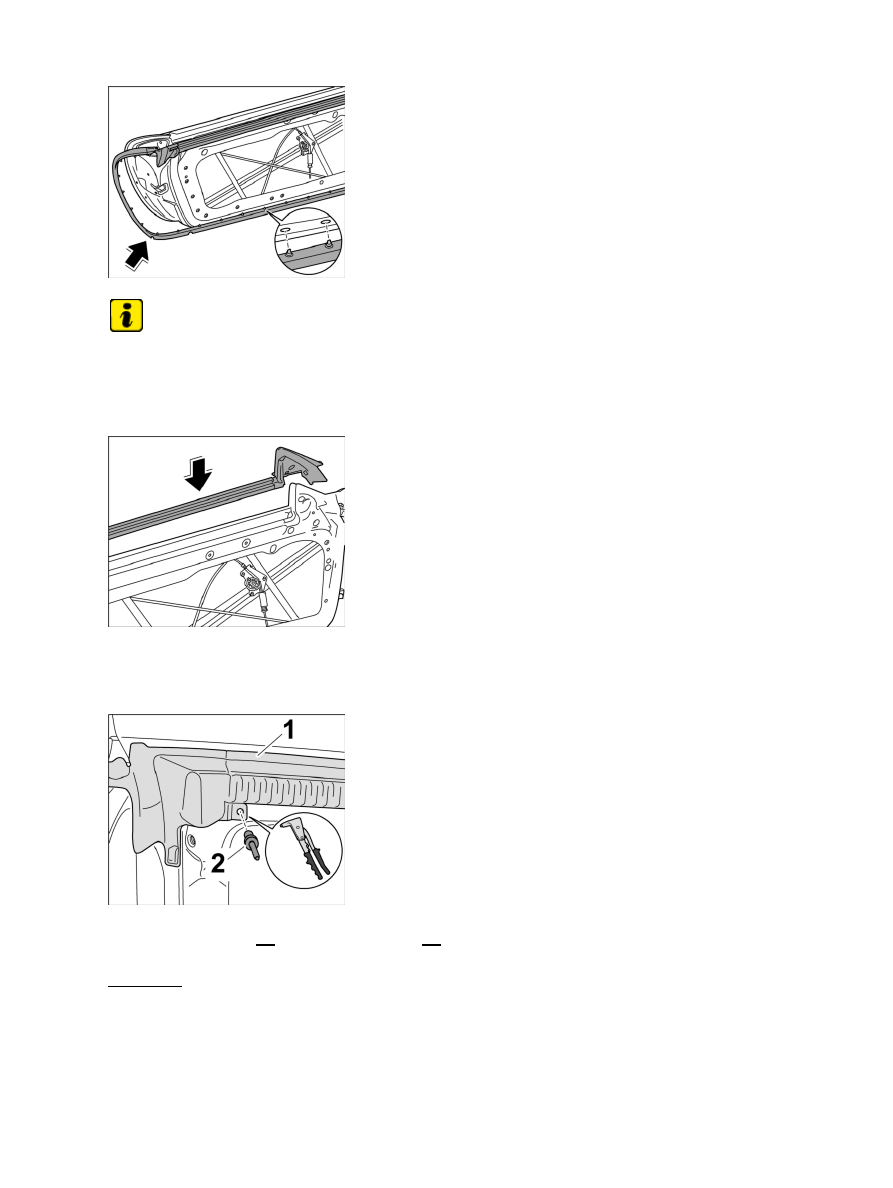

1. Position the rubber seal in the bead of the door channel and press it on.

Clipping in rubber seal

2. Position rubber seal at the top edge of the door and push it on.

3. Clip in the rubber seal along the door contour.

Fasten rubber seal.

4. Fasten rubber seal -1- with the tubular rivet -2- .

Diagnostic system: reading out fault memory and activating systems

Installing rubber seal for door

2051

Subsequent work

Subsequent work

1. Install rear-view mirror. → 668919 Removing and installing rear-view mirror - chapter on

"installing"

2. Install door unit carrier. → 573019 Removing and installing door unit carrier - chapter on

"installing"

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
