57 59 19 Removing and installing door latch snib - as
of MY 2005

- Preliminary work
- Removing door latch snib
- Installing door latch snib
- Subsequent work

Preliminary work

Preliminary work

1. Remove loudspeaker for front door. → 914119 Removing and installing loudspeakers for front

doors - chapter on "removing"

Removing door latch snib

Releasing door latch snib on body side

Installation Location:

2029

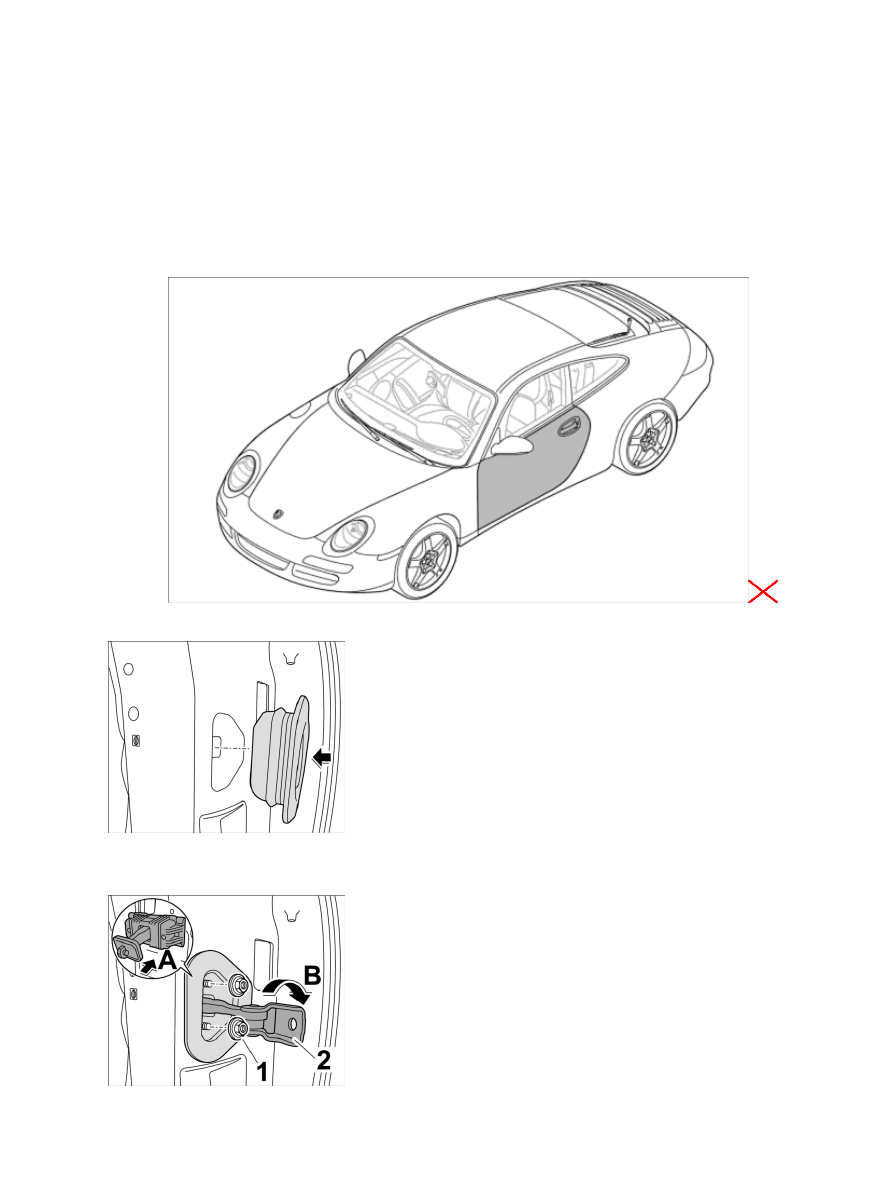

Installation position of door latch snib

Releasing door latch snib on body side

1. Unscrew fastening screw -1- on door latch snib -2- at the A-pillar.

Removing door latch snib

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Releasing door latch snib on body side

2030

Installation position of door latch snib

Removing door latch snib

1. Unscrew fastening nuts -1- on the door latch snib -2- .

2. Swivel door latch snib -2- by 90° -arrow A- and pull it inwards -arrow B- .

3. Remove door latch snib -2- through opening for loudspeaker.

Removing the seal

4. Remove the seal.

Diagnostic system: reading out fault memory and activating systems

Removing door latch snib

2031

Installing door latch snib

Installing door latch snib

Installation Location:

Installation position of door latch snib

Fitting the seal

1. Position the seal.

Diagnostic system: reading out fault memory and activating systems

 Installing door latch snib
