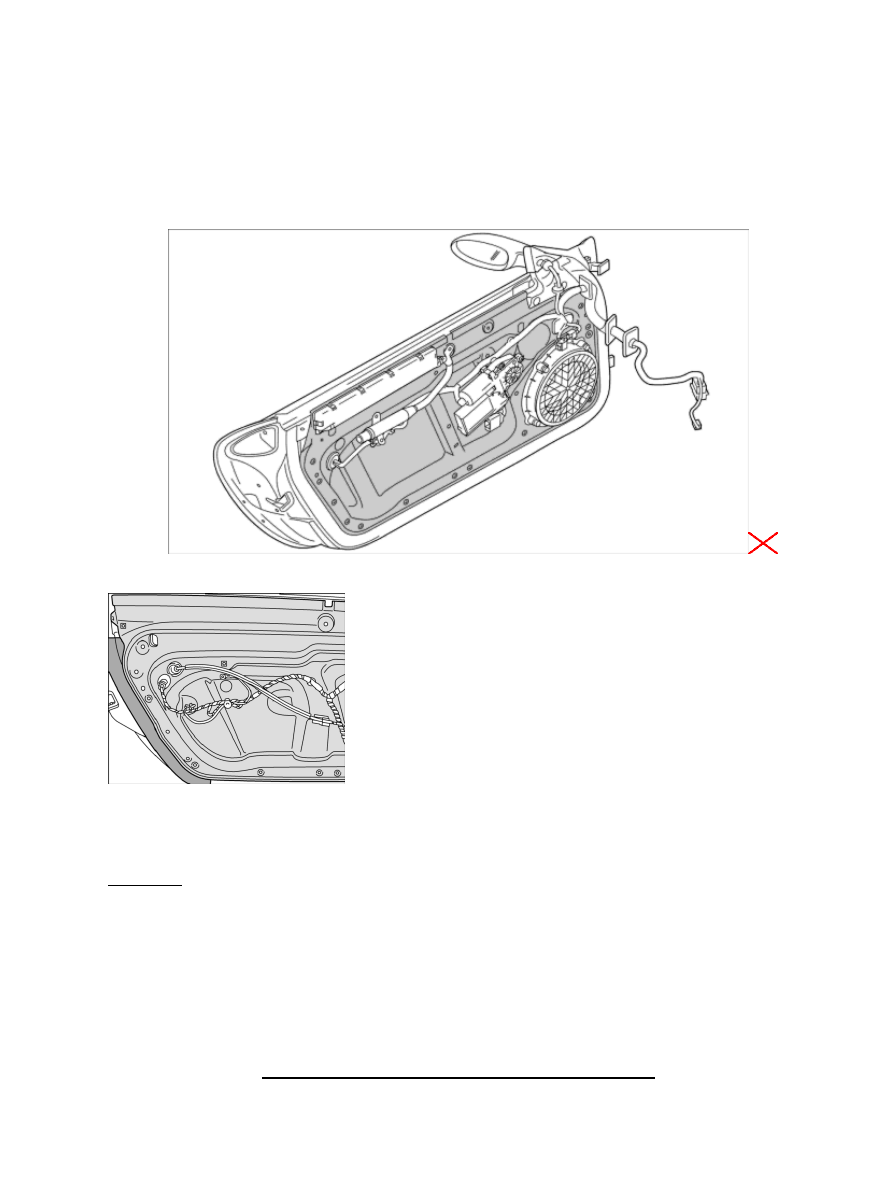

Overview, door unit carrier

Note

A second person is required for removing the door unit carrier to avoid damage.

•

Pushing bowden cable through

1. Push the bowden cable -2- through the unit carrier -1- .

Pushing wiring harness through

Note

Diagnostic system: reading out fault memory and activating systems

Fastening door unit carrier

1973

Make sure that the wiring harness is not twisted through the door opening when fitted.

•

2. Push the wiring harness from the inside through the door aperture and press in the rubber grommet on the

wiring harness from inside into the door aperture.

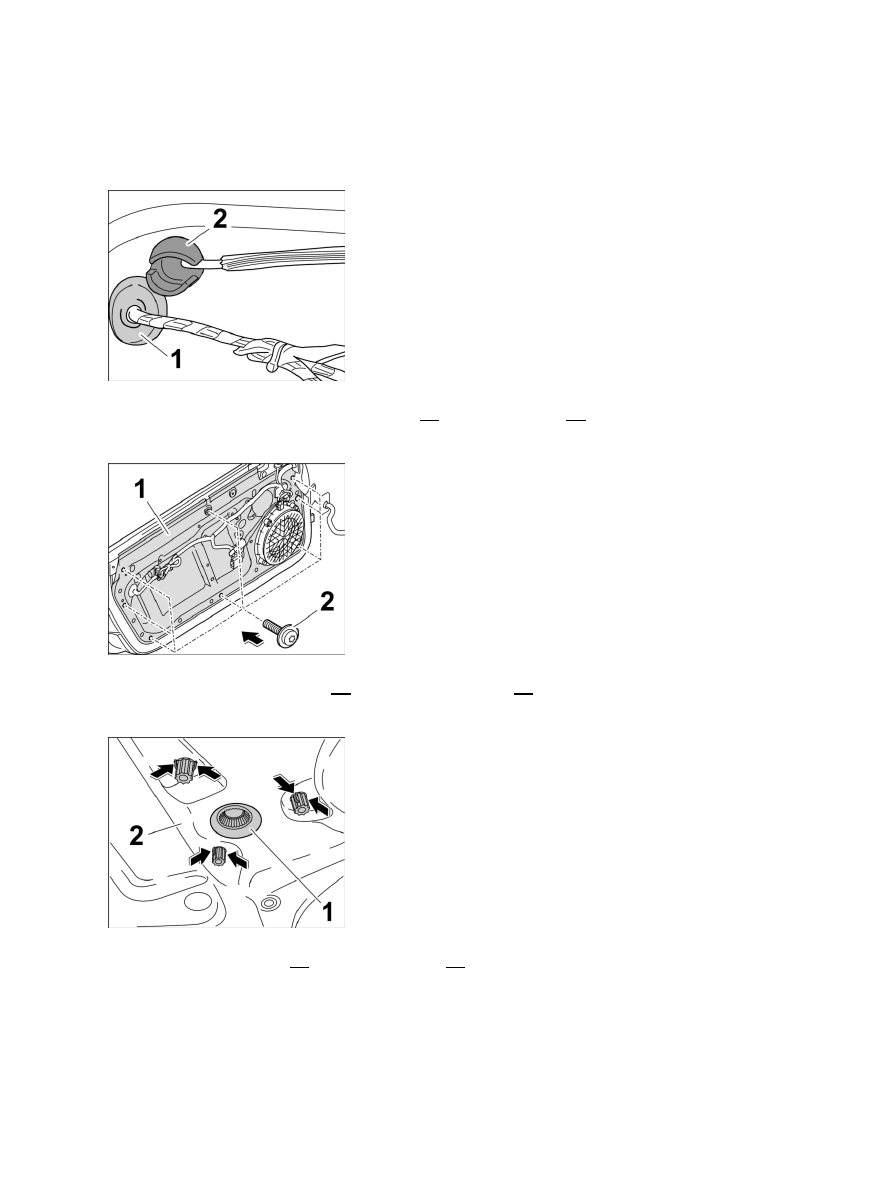

Installing rubber grommets

3. Install the rubber grommet for electric lead -1- and bowden cable -2- in the unit carrier until this engages

all the way around.

Fastening door unit carrier

4. Screw down fastening screws -2- for the door unit carrier -1- . Tightening torque → Final tightening: 9.7

(7.2) Nm (ftlb.)

Clipping in power windows

5. Clip in power windows -1- on door unit carrier -2- .

Locking electrical plug connection

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Locking electrical plug connection

1974

Overview, removing and installing rear-view mirror

1. Connect the plug connection of the mirror housing -3- .

Locking plug connection

Fitting seal for mirror triangle

Seal for mirror triangle

1. Stick seal for mirror triangle at cable cutout opening on door mirror to the basic door

frame.

Diagnostic system: reading out fault memory and activating systems

Fitting seal for mirror triangle

1975

Removing adhesive tape

Installation Location:

Overview, door unit carrier

Remove adhesive tape.

1. Remove adhesive tape, clean marked area if

necessary.

Subsequent work

Subsequent work

1. Install head airbag. → 696619 Removing and installing head airbag - chapter on
