Overview, door unit carrier

Note

Adhesive tape protects the door from paint damage when removing the door unit carrier.

•

Covering door with adhesive tape

1. Cover door in marked area with adhesive

tape.

Removing seal for mirror triangle

Diagnostic system: reading out fault memory and activating systems

Covering door with adhesive tape

1965

Seal for mirror triangle

1. Pull out seal for mirror triangle from cable cutout opening for door mirror.

Disconnecting electrical plug connection

Installation Location:

Overview, removing and installing rear-view mirror

Pulling off electrical plug

1. Disconnect the plug connection of the mirror housing -3- .

Diagnostic system: reading out fault memory and activating systems

Removing seal for mirror triangle

1966

Releasing door unit carrier

Installation Location:

Overview, door unit carrier

Note

A second person is required for removing the door unit carrier to avoid damage.

•

Pressing in rubber grommets

1. Press rubber grommet for electrical wire -1- and bowden cable -2- inwards.

Diagnostic system: reading out fault memory and activating systems

Releasing door unit carrier

1967

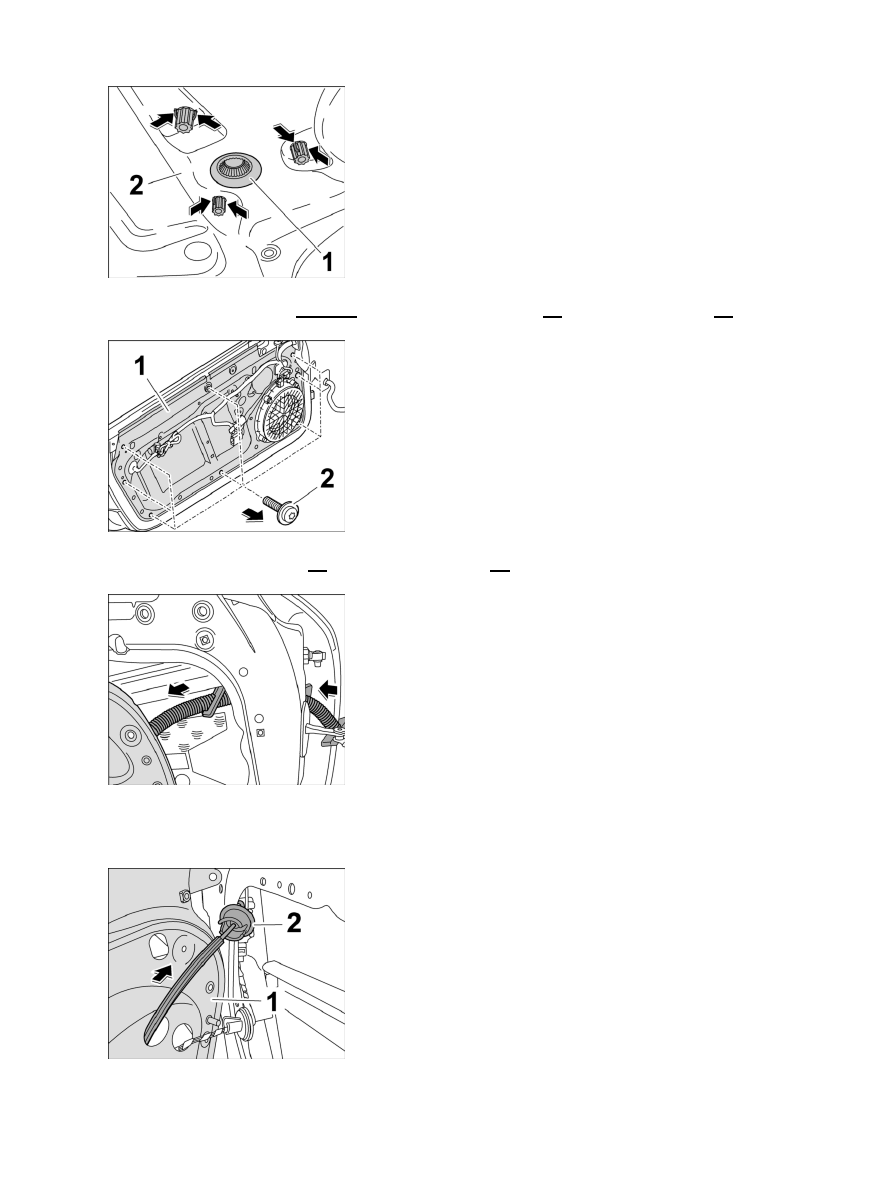

Unclipping power windows

2. Press in the locking tabs -arrows- and unclip power windows -1- from door unit carrier -2- .

Releasing door unit carrier

3. Unscrew fastening screws -2- for the door unit carrier -1- .

Pulling out the wiring harness

4. Press the rubber grommet on the wiring harness inwards and pull the wiring harness through the door

aperture.

Pulling out the Bowden cable

Diagnostic system: reading out fault memory and activating systems

Releasing door unit carrier

1968
