Installing door handle

Fitting door handle and bottom part of door handle

Installation Location:

Overview, removing and installing door handle

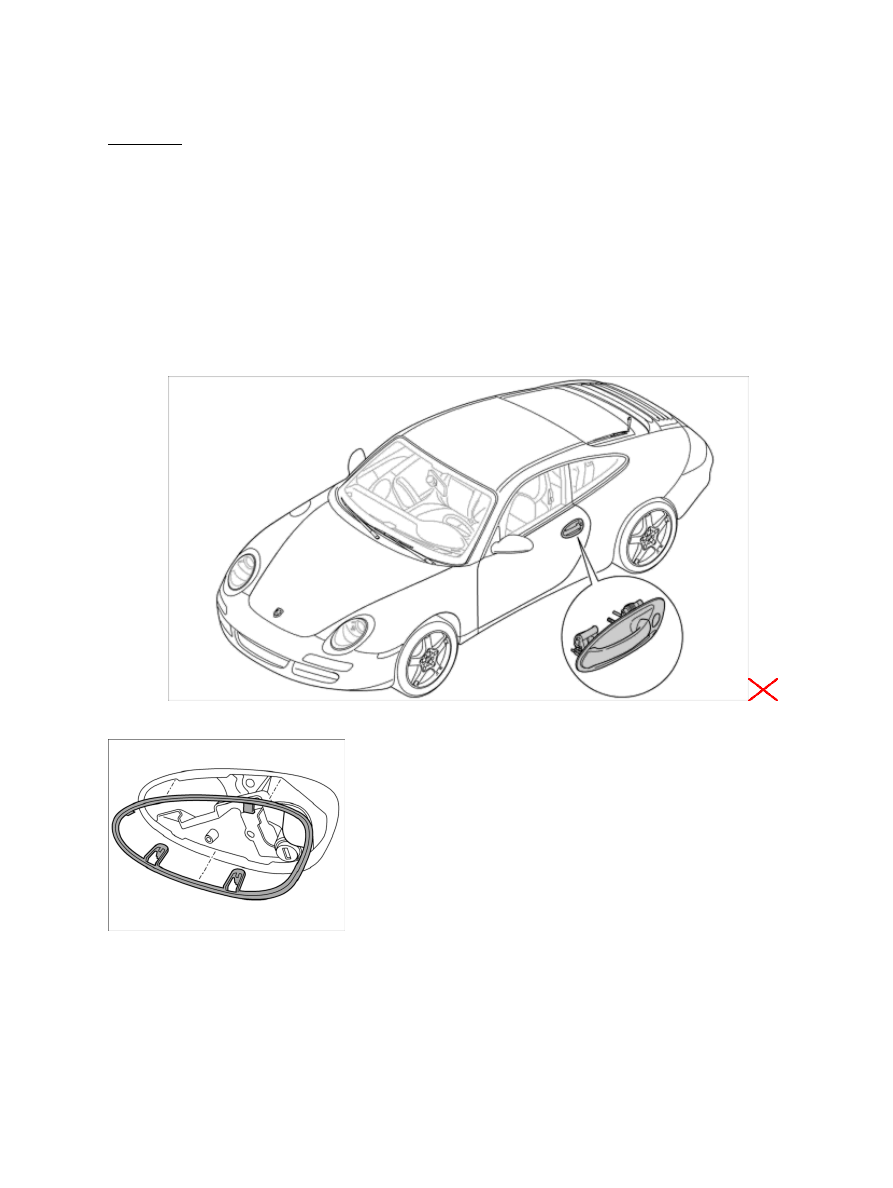

Clipping in support

1. Clip in support.

Diagnostic system: reading out fault memory and activating systems

 Installing door handle

1937

Installing door handle

2. Insert door handle carefully.

Fastening the door handle

Note

Make sure the electrical lead is routed correctly.

•

To prevent a malfunction in the closing system, make sure that the closing cylinder shaft is fitted
correctly in the door lock.

•

3. Position bottom part of door handle -2- from the inside on the door handle -3-

.

4. Tighten fastening nuts -1- . Tightening torque → Final tightening: 7 ftlb.

Fit connection piece

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Fitting door handle and bottom part of door handle

1938

Overview, removing and installing door handle

Fitting connection piece

1. Insert the connection piece -1- into the actuating shaft -2- without play.

2. Push out the sliding piece -3- until it can be heard to

engage.

3. Actuate the handle to ensure that the handle and door lock function without play.

Clipping in the electric wire for micro switches

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Fit connection piece

1939

Overview, removing and installing door handle

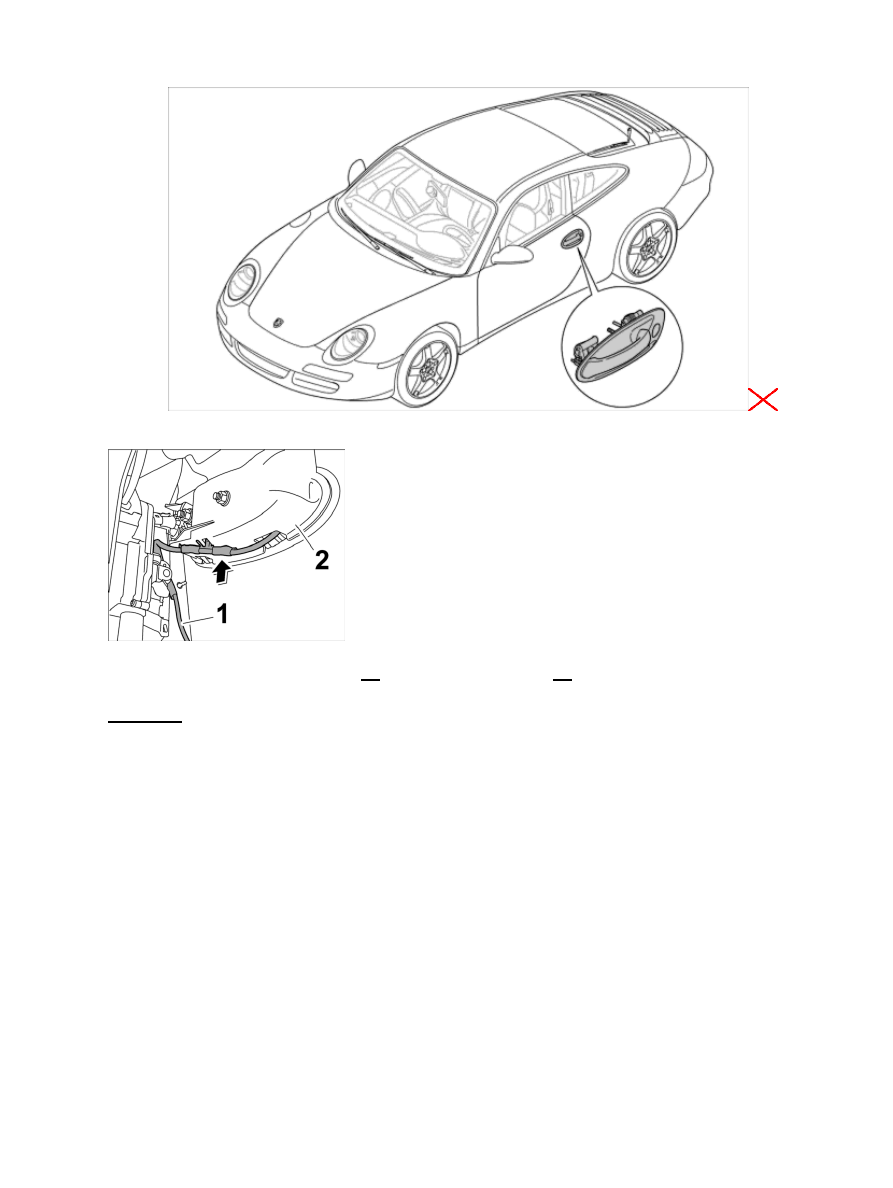

Clipping in wire

1. On the bottom part of door handle -2- clip in the electrical wire -1- .

Subsequent work

Subsequent work

1. Install door unit carrier. → 5730 23 Removing and installing door unit carrier -

installing
