Fitting rubber cover

Installation Location:

Overview, rear lid

Fitting rubber cover

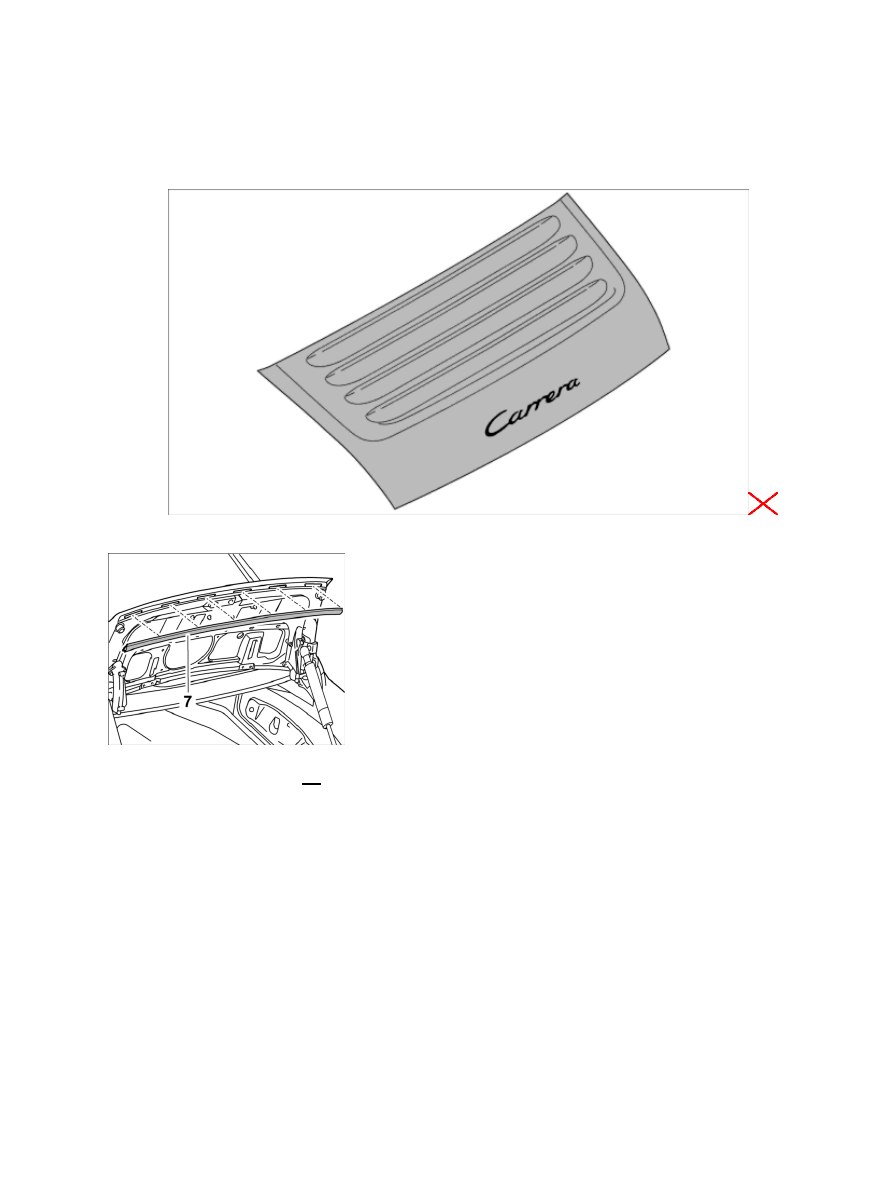

1. Position the rubber cover -7- on the rear lid and push

in.

Installing adjusting element

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Fitting rubber cover

1909

Overview, rear lid

Installing adjusting element

1. Screw in rubber pad -6- .

Installing air guide

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing adjusting element

1910

Overview, rear lid

Installing air guide

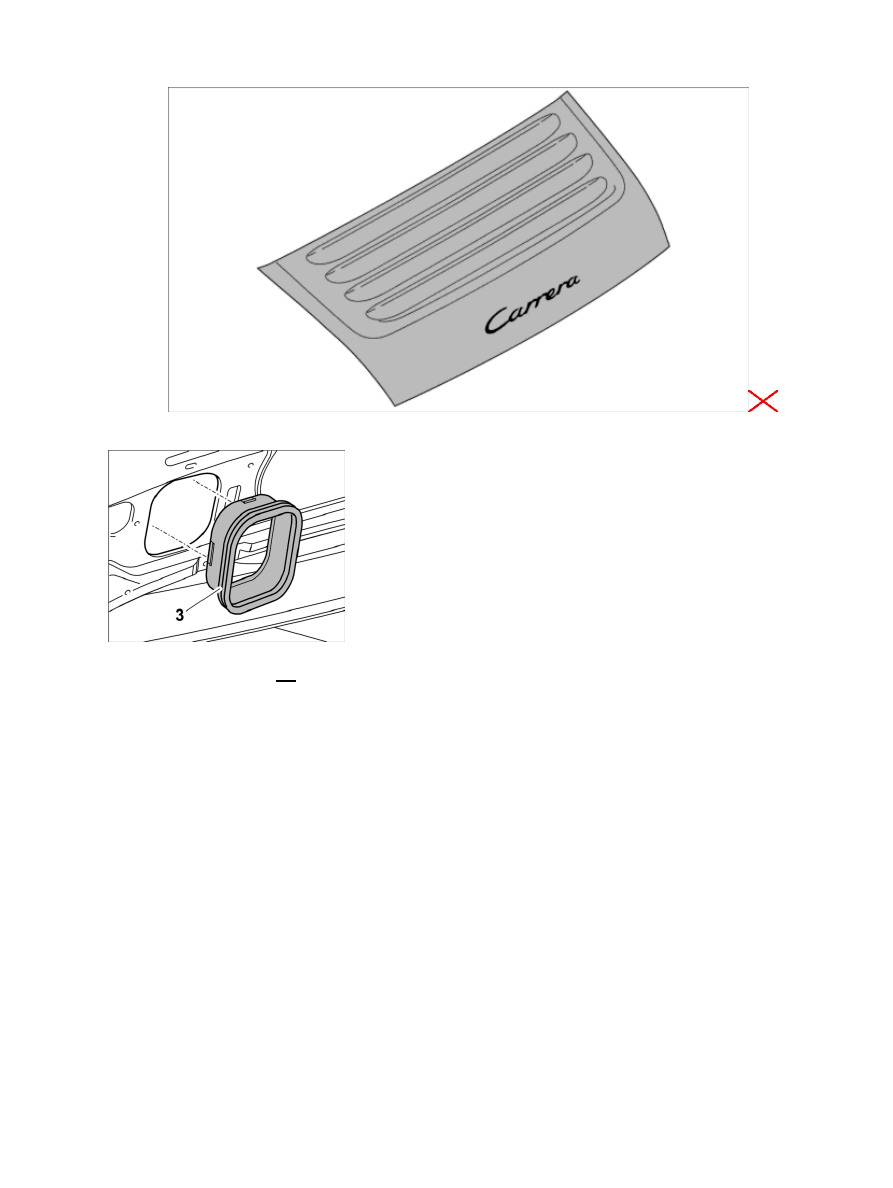

1. Position the air guide -3- on the rear lid and insert into position.

Fitting fan with fan housing

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing air guide

1911

Overview, rear lid

Fitting fan with fan housing

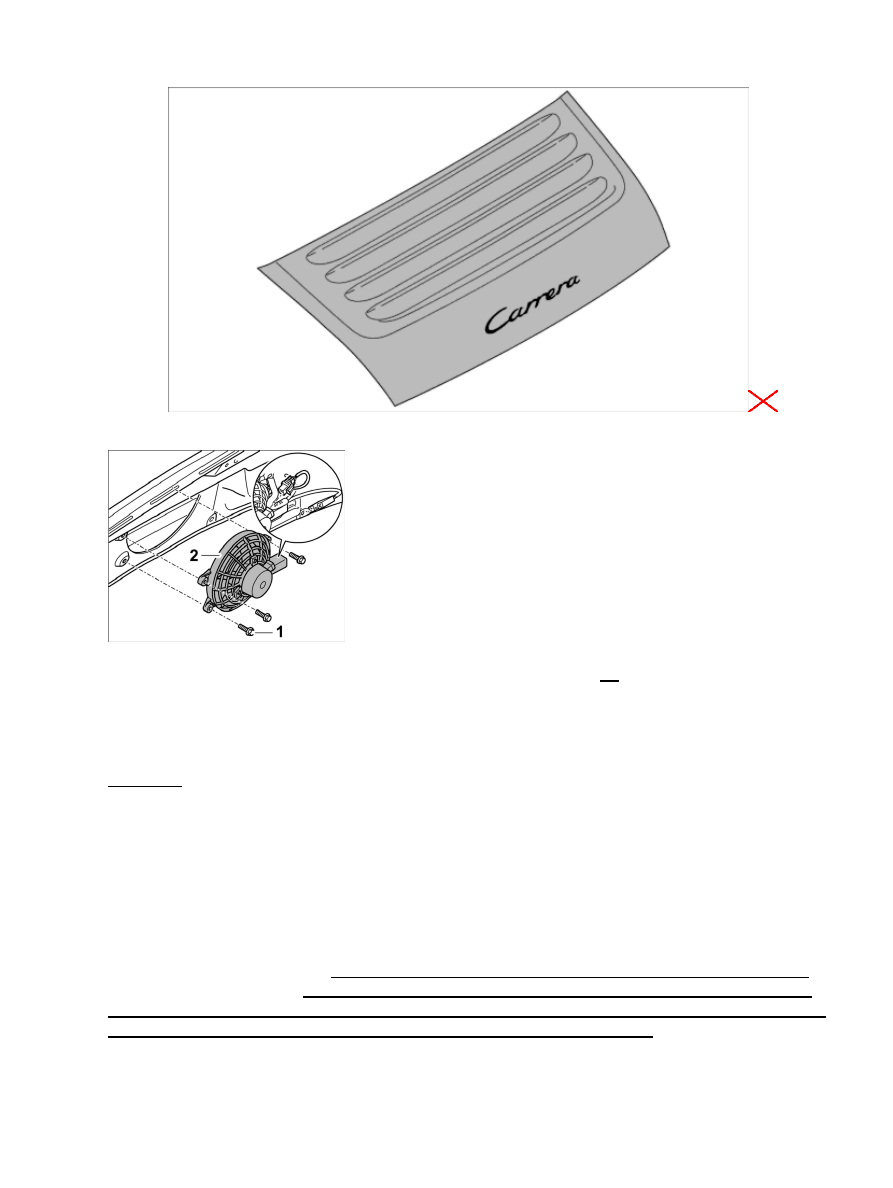

1. Position fan and fan housing -2- and tighten with M6 fastening screws -1- . Tightening torque → :

7.1 ftlb.

2. Connect plugs for fan and engine compartment lighting on the fan

housing.

Reworking

Reworking

Install upper part of rear lid lock. → 558719 Removing and installing upper part of rear lid lock - installing
Install additional brake light. → 947019 Removing and installing additional brake light - installing [997110
997111 997120 997121 997410 997411 997430 997431]→ 947019 Removing and installing additional brake
light - installing [997310 997311 997320 997321 997610 997611 997620 997621]
Install logo. → 665019 23 Removing and installing rear logo - installing
Install rear lid. → 5590 23 Removing and installing rear lid - installing

Diagnostic system: reading out fault memory and activating systems

Fitting fan with fan housing

1912
