- Preliminary work
- Removing servo motor for emergency release
- Installing servo motor for emergency release
- Subsequent work

Preliminary work

Preliminary work on servo motor for emergency release

→ 631519 Removing and installing front apron - chapter on "removing"

Removing servo motor for emergency release

Removing servo motor for emergency release

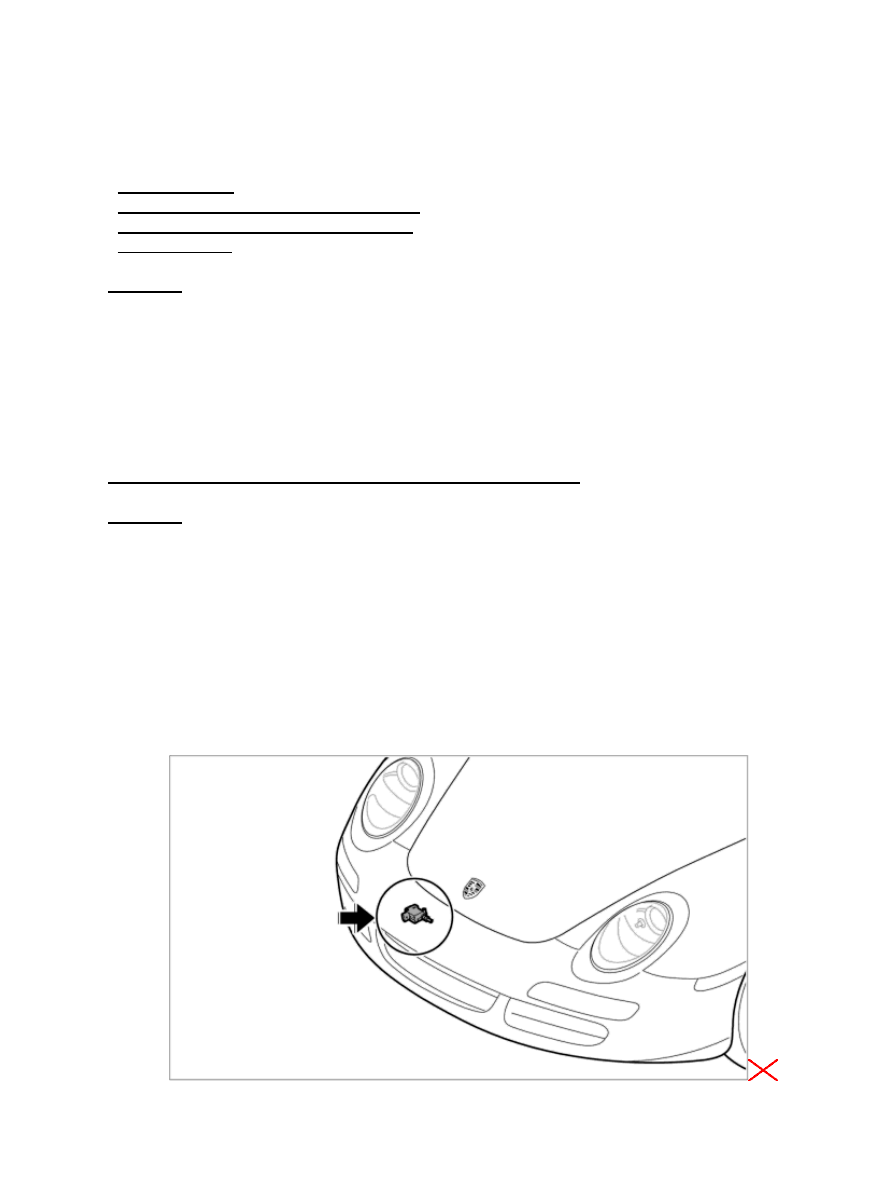

Installation Location:

Installation position shown on the 911

1841

1. Switch off ignition and remove ignition key.

Removing plug

2. Release electric connector -A- and unplug it at the servo

motor.

Removing screws

3. Unscrew both fastening screws -1- .

Disengaging cable at actuating element

4. Turn the servo motor and disengage the retaining pin from the cable at the servo

motor.

5. Remove servo motor.

Diagnostic system: reading out fault memory and activating systems

Removing servo motor for emergency release

1842

Installing servo motor for emergency release

Installing servo motor for emergency release

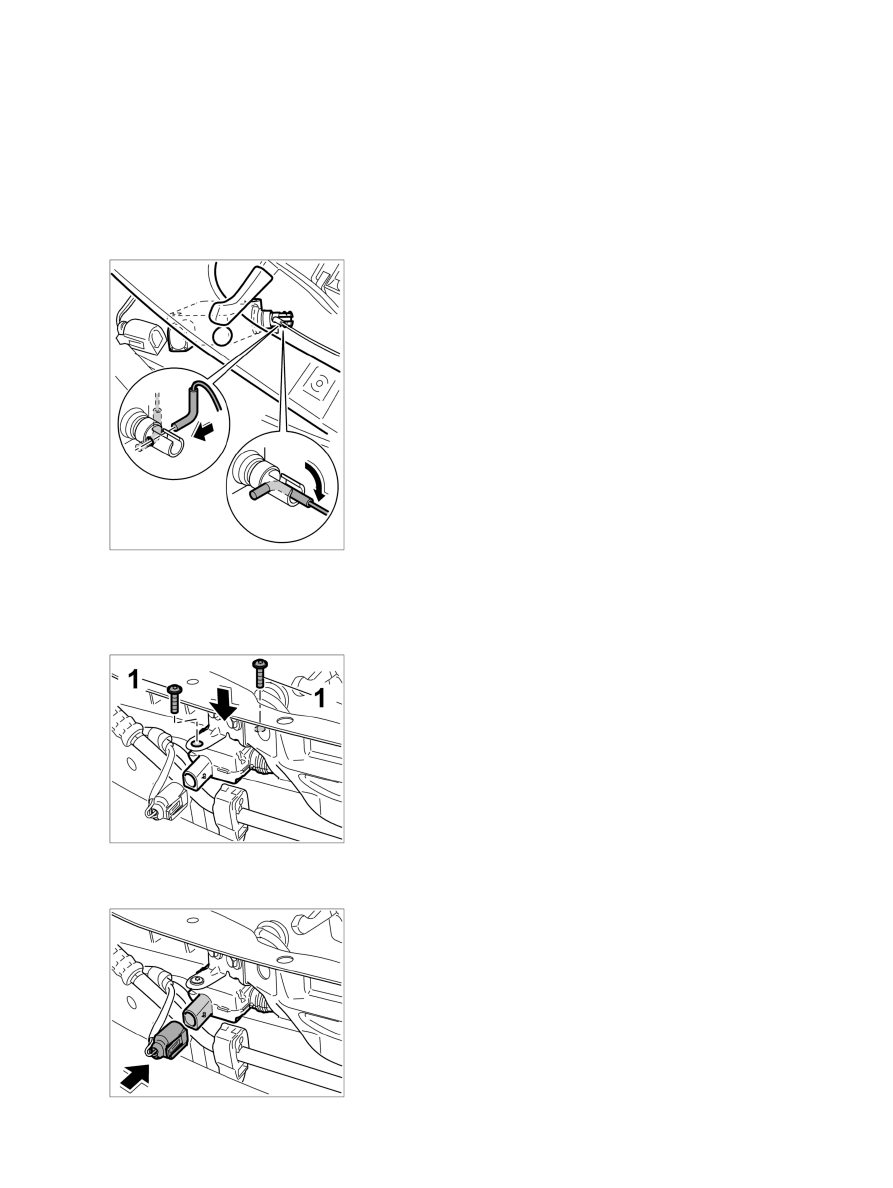

Engaging cable on assembly servo motor

1. Engage the cable retaining pin at the servo motor and clip it

in.

Screwing in screws

2. Position servo motor and secure with the fastening screws. → Tightening torque: 9.7 (7.2 ftlb.) Nm

Diagnostic system: reading out fault memory and activating systems

 Installing servo motor for emergency release

1843

Plugging in connector

3. Push electric plug onto the servo motor until it is felt to

engage.

Subsequent work

Subsequent work on servo motor for emergency release

→ 631519 Removing and installing front apron - chapter on "installing"

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.
