Diagnostic system: reading out fault memory and activating systems

Installing filler flap

1829

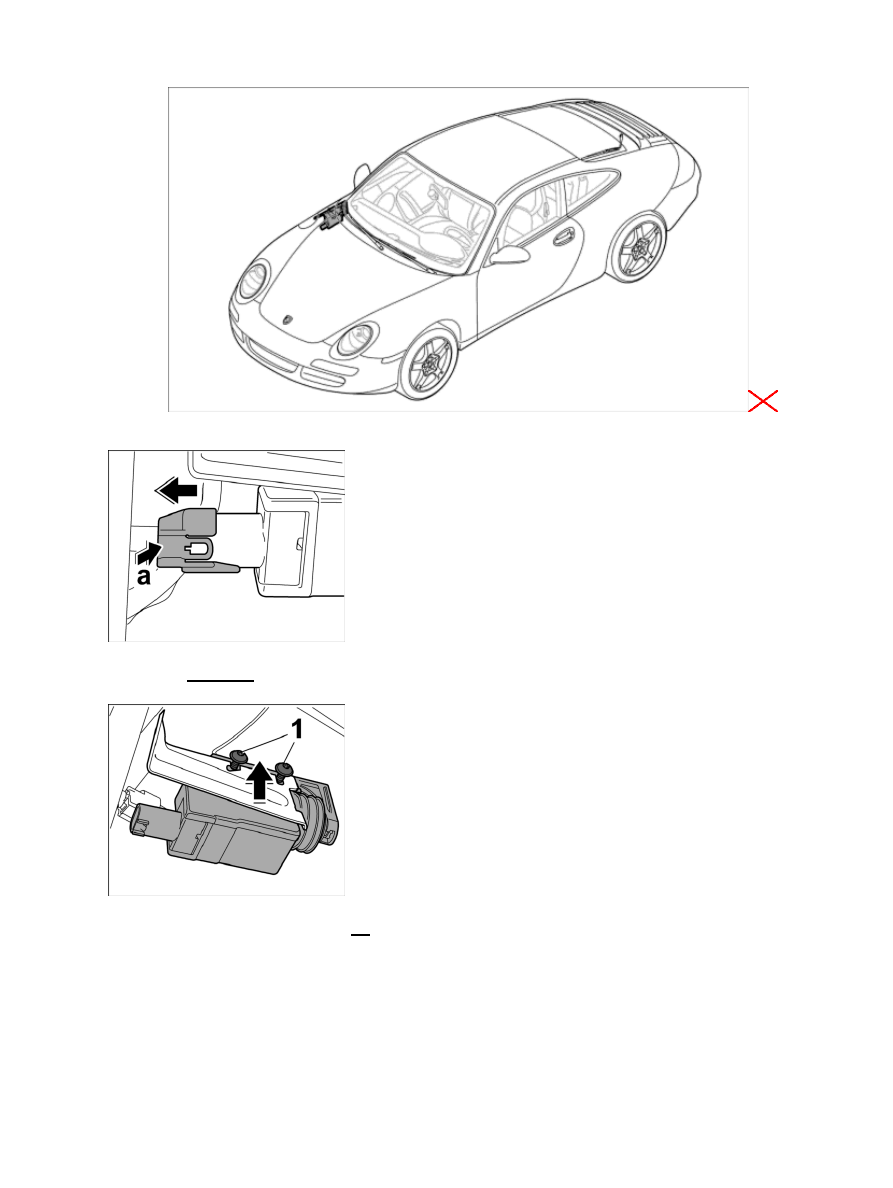

Overview of filler flap switching element

Disconnecting connector for switching element

1. Release -arrow a- and pull off connector.

Releasing filler flap switching element from holder

2. Loosen the two fastening screws -1- and remove the filler flap switching element from the holder.

Diagnostic system: reading out fault memory and activating systems

Removing switching element for filler flap

1831

Disengaging switching element for filler flap from emergency operation cable

3. Disengage switching element for filler flap from the emergency operation cable.

Installing switching element for filler flap

Installing switching element for filler flap

Engaging switching element for filler flap into emergency operation cable

1. Engage switching element for filler flap into the emergency operation cable.

Securing filler flap switching element to holder

2. Insert switching element for filler flap into the slots on the holder. Ensure that the locking bolt of the filler

flap switching element is positioned in the opening of the side section.

Diagnostic system: reading out fault memory and activating systems

 Installing switching element for filler flap

1832
