Porshe 911 (997). Manual - part 404





Removing bowden cable for emergency release

1. Twist the bowden cable -direction of arrow- and remove from the servo motor -1- .

Pressing out bowden cable for emergency release

Installation Location:

Overview, front lower part of lid lock

Pressing out bowden cable for emergency release

1. Press out bowden cable -2- at lower part of the lid

Diagnostic system: reading out fault memory and activating systems

Removing bowden cable for emergency release

1773

lock.

Disconnect electrical plug connection

Installation Location:

Overview, front lower part of lid lock

Disconnecting electrical plug connection

1. Disconnect electrical plug connection -1- .

Removing lower part of lid lock

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Pressing out bowden cable for emergency release

1774

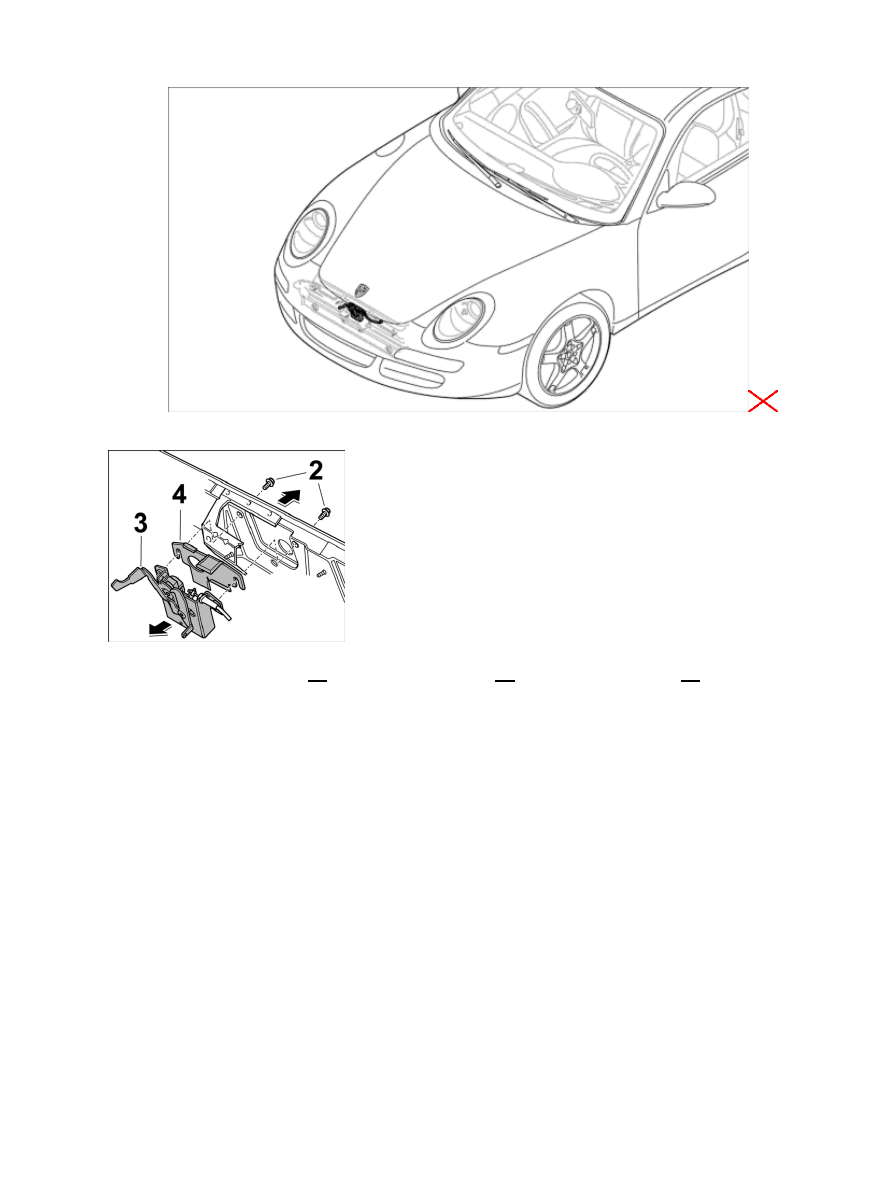

Overview, front lower part of lid lock

Removing lower part of lid lock

1. Unscrew fastening screws -2- on lower part of lid lock -3- and remove cover panel -4-

.

Removing lid-release cable

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing lower part of lid lock

1775

Overview, front lower part of lid lock

Removing lid-release cable

1. Disengage lid-release cable -5- by moving release -6- in direction of arrow on lower part of lock at the

front -3- .

Installing front lower part of lid lock

Inserting lid-release cable

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing lid-release cable

1776
