Porshe 911 (997). Manual - part 383





Welding engine mounting and end plate under shielding gas

5. Weld engine mounting and end plate under shielding gas.

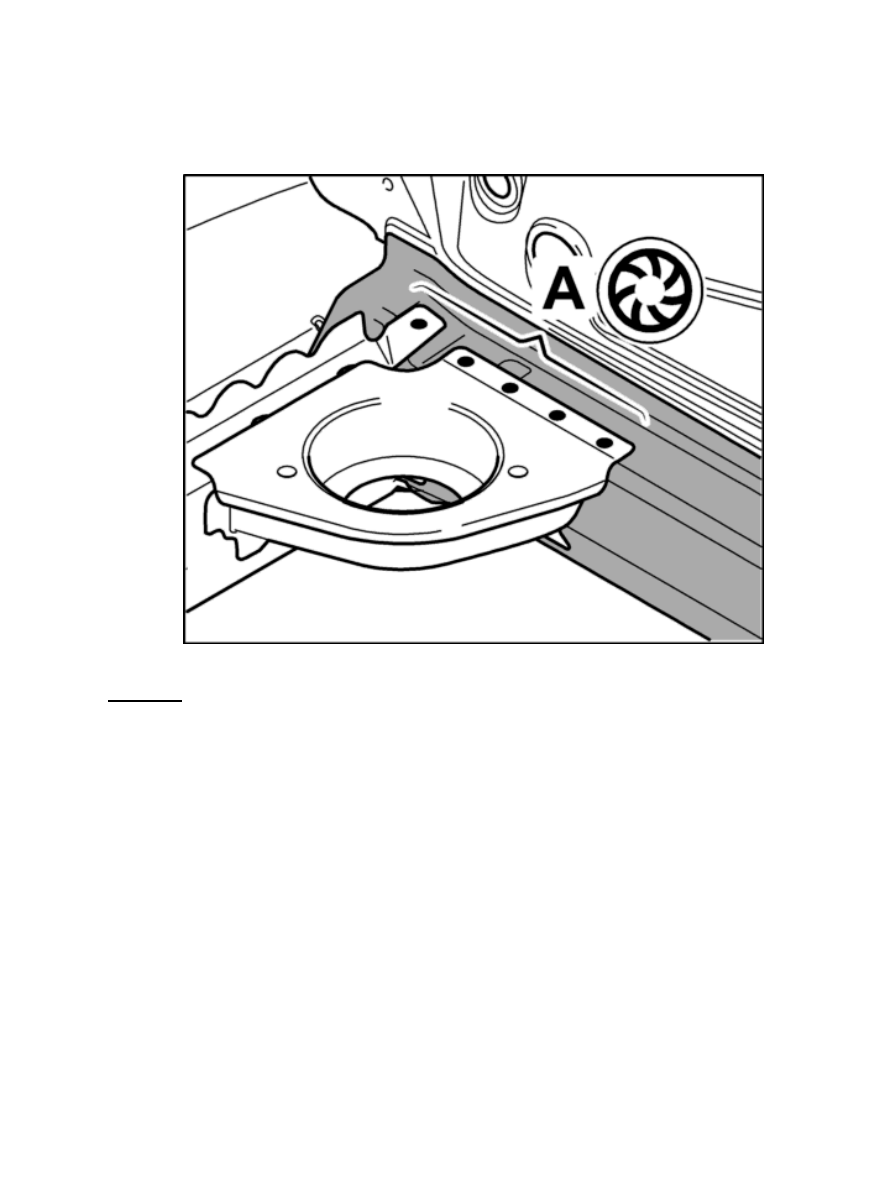

5.1. Plug-weld the bottom of the engine mounting and the end plate in area A to the inner side member under

shielding gas.

Welding engine mounting and end plate under shielding gas

Subsequent work

Subsequent work for body repairs

1. Remove vehicle from the alignment bench.

2. Clean welded joints and sheetmetal flanges with a wire brush.

3. Prime flange areas with 2K

primer.

4. Restore standard sealing with body sealant.

→ 5  Seam sealing

5. Restore standard undersealing with underbody sealant.

→ 5  Underbody protection

6. Paint repair area and adjacent surfaces, if necessary.

Diagnostic system: reading out fault memory and activating systems

 Subsequent work

1689

7. Install removed accessories in the repair area.

8. Apply cavity preservation.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

Diagnostic system: reading out fault memory and activating systems

Subsequent work for body repairs

1690

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

ATTENZIONE

Pericolo di perdita dell'abbinamento testo-immagine nella stampa.

Per motivi tecnici non è escluso che, nonostante la rappresentazione sullo schermo
risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.

•

Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

ADVERTENCIA

Al imprimir se corre el riesgo de perder la correcta asignación de las figuras al texto.

Por motivos técnicos, por el momento no se puede descartar que, aun siendo
correcta la imagen que aparezca en la pantalla, al imprimir se pierda la
correlación entre el texto y la figura correspondiente.

•

Si este error pasara desapercibido, existe el riesgo de que los trabajos no se
ejecuten de forma correcta y, por tanto, se produzcan daños personales y
materiales.

•

→ Por ello le rogamos que tras el proceso de impresión compare siempre las copias impresas con
la imagen de la pantalla. En caso de error, corrija las copias impresas de forma que se
correspondan con el contenido de la imagen de la pantalla.

Diagnostic system: reading out fault memory and activating systems

Subsequent work for body repairs

1691

- General warning notes
- Tools and materials
- Removing side section
- Preparing connection areas of the body for installation of the side section
- Fitting side section and preparing for installation
- Installing side section
- Subsequent work

Tools

Designation

Type

Number Explanation

Pneumatic body saw No. PS1,
see Gr. 3.5; Workshop
Equipment Manual

commercially
available tool

00000

Press-out tool

special tool

97290

Star gauges for body gap
dimensions

commercially
available tool

NR.127-1

Spotweld drill

commercially
available tool

NR.129

1692
