Diagnostic system: reading out fault memory and activating systems

Reworking

1665

- Preliminary work
- Removing cover for rear underbody
- Installing cover for rear underbody
- Subsequent work

Preliminary work

Preliminary work

Lift the vehicle. →   Lifting the vehicle

Removing cover for rear underbody

Removing cover for rear underbody- rear section

Installation Location:

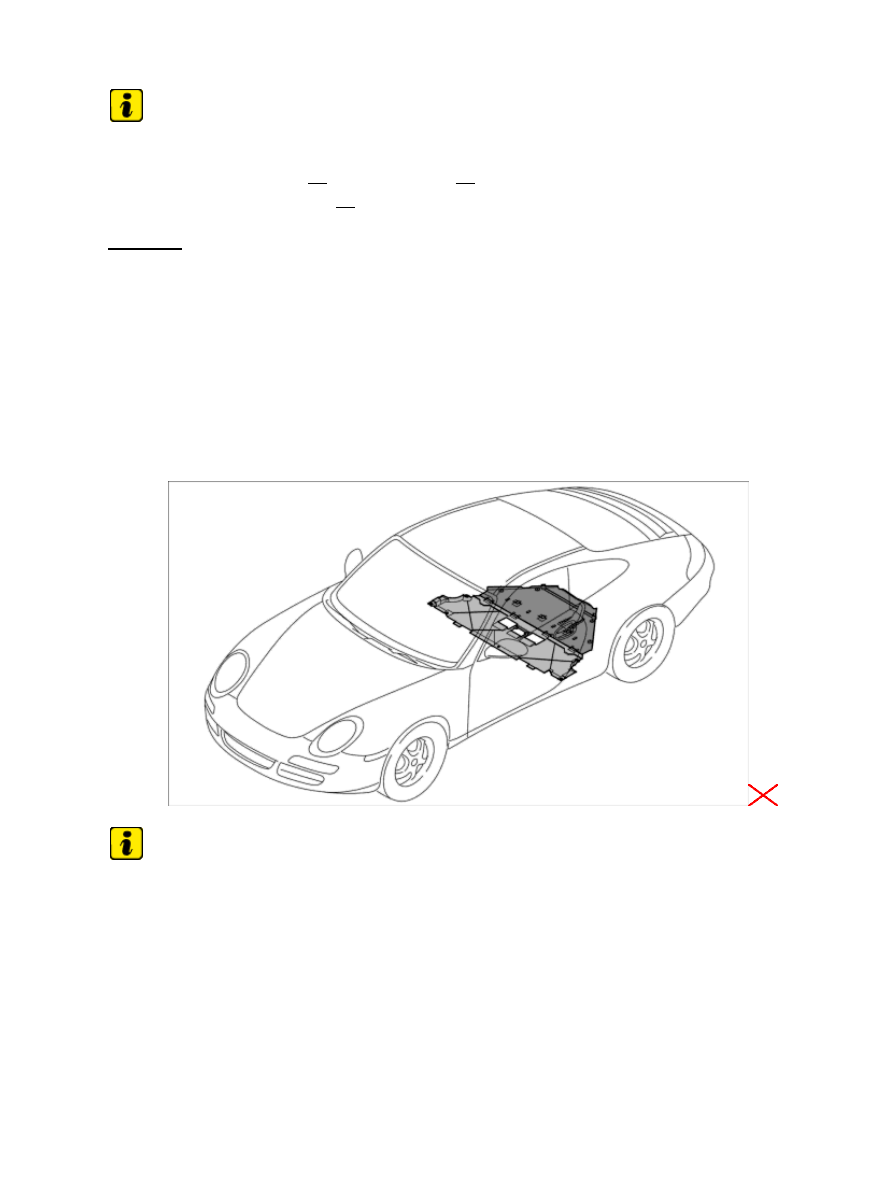

Overview, cover for rear underbody

1666

Remove rear cover- rear section

1. Undo fastening screws -2- .

2. Remove rear underbody cover -1- .

Removing cover for rear underbody - front section

Installation Location:

Overview, cover for rear underbody

Removing rear cover - front section

Diagnostic system: reading out fault memory and activating systems

Removing cover for rear underbody- rear section

1667

Note

Fastening nuts cannot be used again following removal.

1. Unscrew fastening screws -2- and fastening nuts -3- .

2. Remove rear underbody cover -4- .

Installing cover for rear underbody

Installing cover for rear underbody- front section

Installation Location:

Overview, cover for rear underbody

Note

When pushing in the underside panel, make sure the overlap is correct.

Diagnostic system: reading out fault memory and activating systems

Removing cover for rear underbody - front section

1668
