Welding in support tube

4. Welding in support tube

4.1. Detach the support tube together with the retaining bracket from the

body.

4.2. Apply a full weld to the support tube with retaining bracket in area -A- from behind using inert gas

(through existing slots).

Fitting support tube with retaining bracket to the body

5. Fitting support tube with retaining bracket to the body

5.1. Fit the support tube with retaining bracket to the body and fix in place with tensioning clamps.

Welding in support tube with retaining bracket

6. Welding in support tube with retaining bracket

6.1. Resistance spot-weld the support tube with retaining bracket in areas -A- and -B- .

Diagnostic system: reading out fault memory and activating systems

Installing lower side member reinforcement

1645

Welding in support tube with retaining bracket

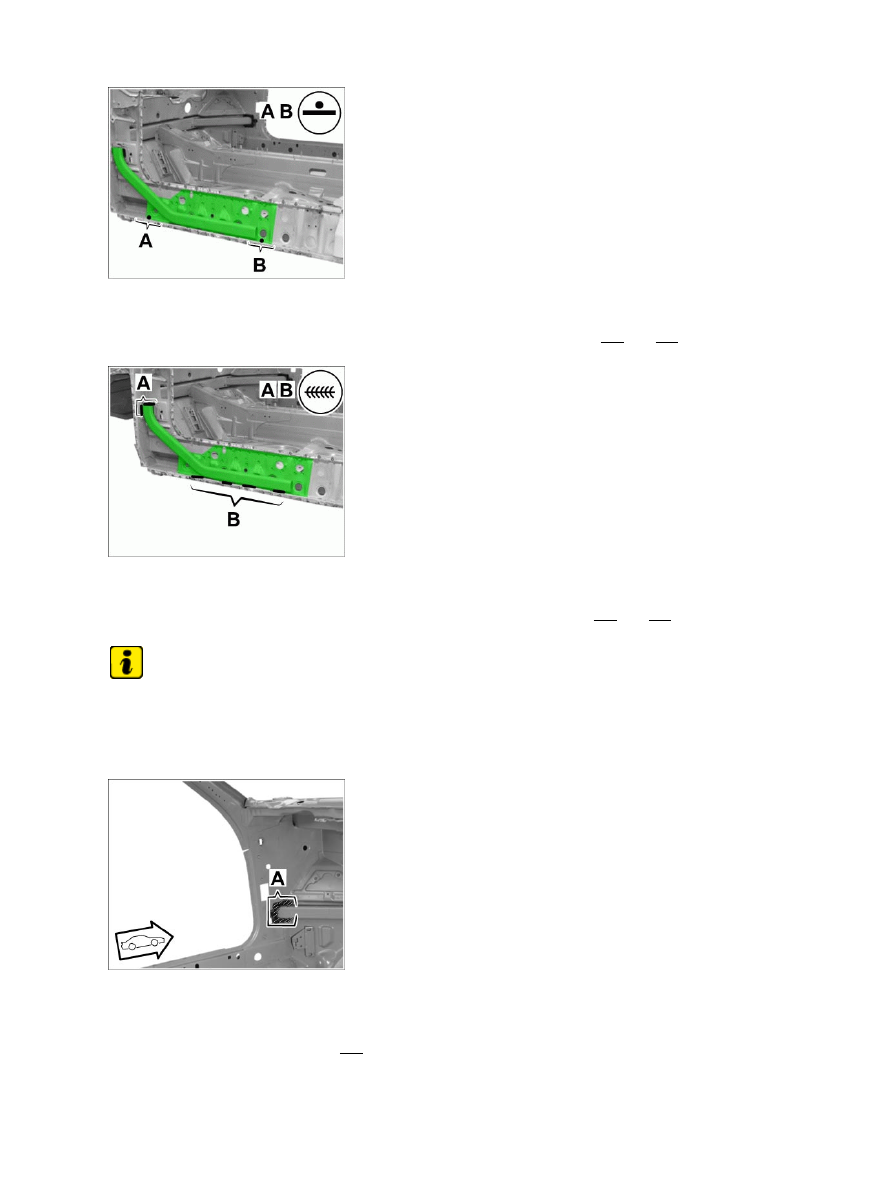

7. Welding in support tube with retaining bracket

7.1. Resistance spot-weld the support tube with retaining bracket in areas -A- and -B- .

Welding in support tube with retaining bracket

8. Welding in support tube with retaining bracket

8.1. Apply a full weld to the support tube with retaining bracket in areas -A- and -B- using inert

gas.

Note

After the required hardening time has elapsed, cut off excess expanded sealant to a height of more than 25 mm
using a knife.

Applying expanded sealant

9. Applying expanded sealant

9.1. Seal inside of A pillar in area -A- with → AFS-Vario .

9.2. Apply expanded sealant using a spatula.

Diagnostic system: reading out fault memory and activating systems

Installing lower side member reinforcement

1646

10. Install centre side member. → 514855 Replacing centre side member - section on "Installing" [997310

997311 997320 997321 997610 997611 997620 997621]→ 514855 23 Replacing centre side member -
section on "Installing" [997110 997111 997120 997121 997410 997411 997430 997431]

11. Install hinge pillar reinforcement. → 516255 23 Replacing hinge pillar reinforcement - section on

"Installing"

Subsequent work

Subsequent work for body repairs

1. Removing vehicle from straightening bench

2. Cleaning spot-welded joints and sheetmetal flanges with a wire brush

3. Priming flange areas with 2K primer

4. Restore standard sealing with body sealant

→ 501000  Seam seal

5. Restore standard undersealing with underbody

sealant
→ 501000  Undersealing

6. Painting repair area and adjacent surfaces, if necessary

7. Install removed add-on parts in the repair area

8. Apply cavity preservation.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

Diagnostic system: reading out fault memory and activating systems

 Subsequent work

1647

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.
