Installing centre side member

WARNING

Traffic safety warning for bonding structural components with structural adhesive!

Danger of material damage and injury

•

→ Join, fix and resistance spot-weld parts within the processing time. The jointing operation must take place

directly after application of the adhesive in order to guarantee high-quality and reliable bonding.
Otherwise the adhesive bead must be removed and pre-treatment of the surface and application of the
adhesive must be repeated.

→ To ensure that the substance is completely mixed, apply a 30 mm long adhesive bead of fresh adhesive to

a piece of cardboard before processing.

→ Process the adhesive within the processing time. The adhesive must be applied and the body part must be

jointed within this period. Any resistance welding to be carried out in the area of the bonding must be
performed within this period as well. → Processing time: 60 min

→ Do not apply pressure to bonded parts until hardening is complete!

→ If the contents of the cartridge is not used up completely, the processing nozzle must be kept on the

cartridge until the adhesive hardens. If you intend to use the adhesive again later, a new processing nozzle
must be used.

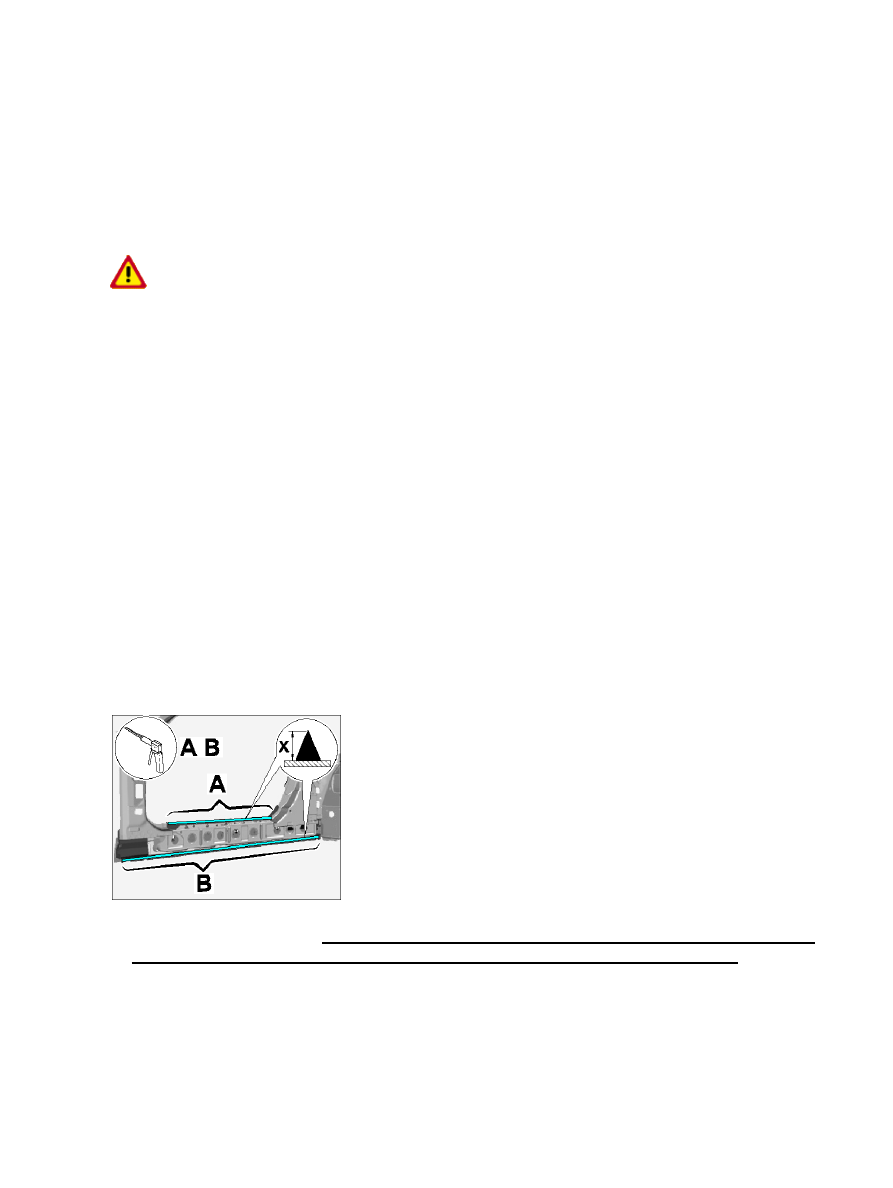

1. Apply adhesive to areas A and B of the body parts in the form of a triangular bead measuring X = 3 mm.

Applying adhesive

See: Working with adhesive → 5000IN Working with body structural adhesive [997310 997311 997320
997321]→ 5000IN Working with body structural adhesive [997610 997611 997620 997621]

Diagnostic system: reading out fault memory and activating systems

Danger of injury when welding

1629

Resistance spot-welding centre side member

2. Resistance spot-weld areas A, B on the centre side member.

Welding centre side member using inert gas

3. Weld areas D, E on centre side member using inert gas.

Plug welding centre side member using inert gas

Plug weld area C on centre side member using inert gas.

Safety instructions for flying sparks during grinding and welding work

ATTENTION

Danger of explosion and fire from flying sparks during grinding and welding work!

Danger of injury and danger of damage to vehicle parts and other vehicles due to flying sparks

•

→ Cover vehicle parts such as battery, fuel system, paintwork, glass and passenger compartment parts with

fire-proof covers and, if necessary, remove batteries and fuel-carrying components.

Diagnostic system: reading out fault memory and activating systems

Installing centre side member

1630

→ No other vehicles may be left unprotected in areas used for body repair!

Subsequent work

Subsequent work for body repairs

1. Remove vehicle from the alignment bench.

2. Clean welded joints and sheetmetal flanges with a wire brush.

3. Prime flange areas with 2K

primer.

4. Restore standard sealing with body sealant.

→ 5  Seam sealing

5. Restore standard undersealing with underbody sealant.

→ 5  Underbody protection

6. Paint repair area and adjacent surfaces, if necessary.

7. Install removed accessories in the repair area.

8. Apply cavity preservation.
