→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

ATTENZIONE

Pericolo di perdita dell'abbinamento testo-immagine nella stampa.

Per motivi tecnici non è escluso che, nonostante la rappresentazione sullo schermo
risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.

•

Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

ADVERTENCIA

Al imprimir se corre el riesgo de perder la correcta asignación de las figuras al texto.

Por motivos técnicos, por el momento no se puede descartar que, aun siendo
correcta la imagen que aparezca en la pantalla, al imprimir se pierda la
correlación entre el texto y la figura correspondiente.

•

Si este error pasara desapercibido, existe el riesgo de que los trabajos no se
ejecuten de forma correcta y, por tanto, se produzcan daños personales y
materiales.

•

→ Por ello le rogamos que tras el proceso de impresión compare siempre las copias impresas con
la imagen de la pantalla. En caso de error, corrija las copias impresas de forma que se
correspondan con el contenido de la imagen de la pantalla.

Diagnostic system: reading out fault memory and activating systems

Subsequent work for body repairs

1553

- General warning notes
- Tools and materials
- Preliminary work for body repairs with alignment bench
- Removing roof pillar (pipe) and roof frame reinforcement
- Preparing connection areas of the body for installing the roof pillar (pipe) and roof frame reinforcement
- Fitting roof pillar (pipe) and roof frame reinforcement and preparing for installation
- Installing roof frame reinforcement and roof pillar (pipe)
- Subsequent work

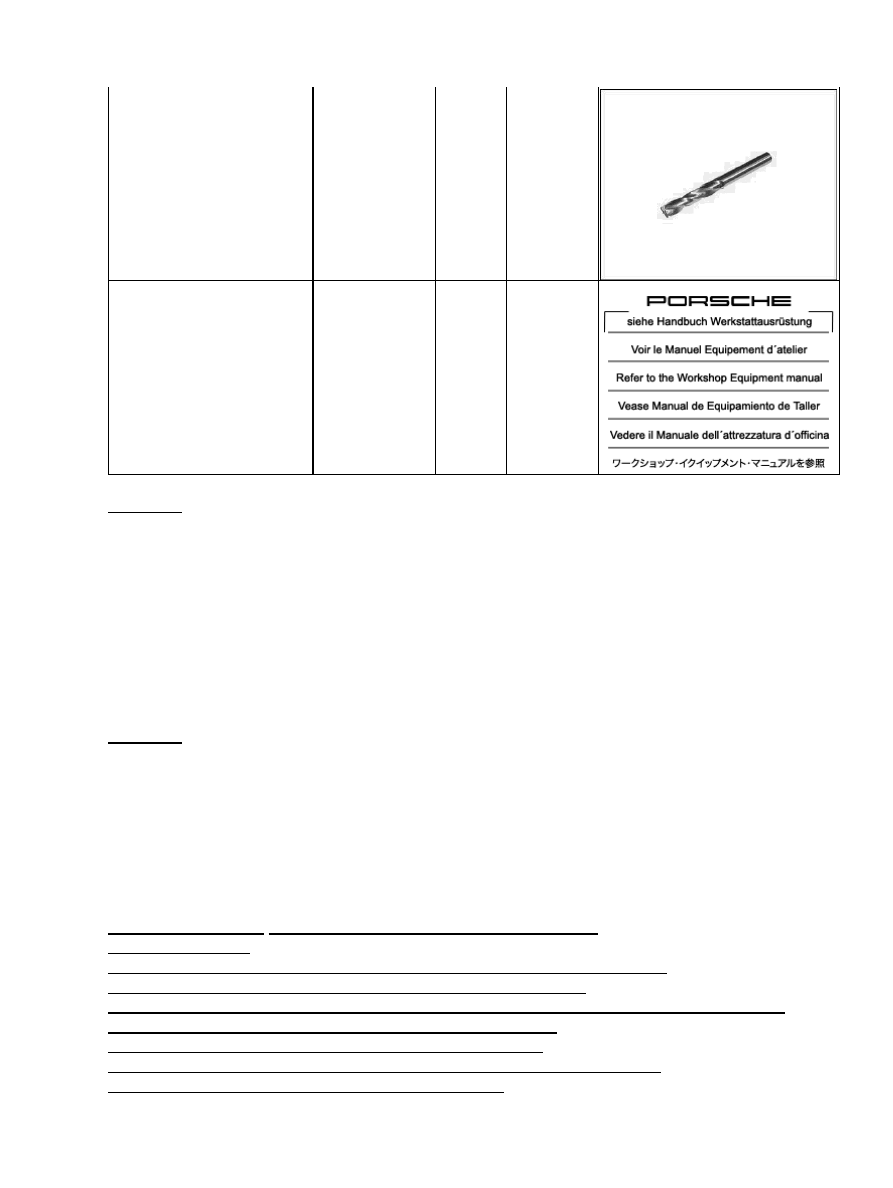

Tools

Designation

Type

Number Explanation

Pneumatic body saw No. PS1,
see Gr. 3.5; Workshop
Equipment Manual

commercially
available tool

00000

Press-out tool

special tool

97290

Star gauges for body gap
dimensions

commercially
available tool

NR.127-1

Spotweld drill

commercially
available tool

NR.129

1554

Preliminary work for body repairs with alignment bench

Preliminary work for body repairs with alignment bench

WARNING

This affects torsion resistance, resistance to bending and crash safety

Danger of injury and material damage

•

→ The roof pillar (pipe), which is made of highest-strength steel plate, cannot be

reshaped.

→ The roof pillar (pipe) cannot be straightened or reshaped.

→ In the event of damage or deformation, the roof pillar (pipe) must be replaced.

1. Removing accessories in the repair area

1.1. Remove accessories in the repair area according to the extent of damage on the vehicle.

2. Equipping alignment bench with straightening kit

2.1. Set up straightening bench with the straightening set according to the set-up drawings included

with the straightening set.

3. Placing vehicle on the alignment bench

3.1. Position vehicle on alignment bench, align according to the reference holes and bolt firmly to the

attachment set.

4. Covering accessories adjacent to the vehicle repair area

4.1. Cover all accessories remaining on the vehicle and the neighbouring areas with fire-proof, protective

covers.

5. Exposing welding areas

5.1. Remove undersealing, paint, etc. from the welding areas of the body with a hot-air gun or rotary brush.

Diagnostic system: reading out fault memory and activating systems

Tools and materials

1556
