Porshe 911 (997). Manual - part 333

Welding in outer front side member

7. Weld in the outer front side member.

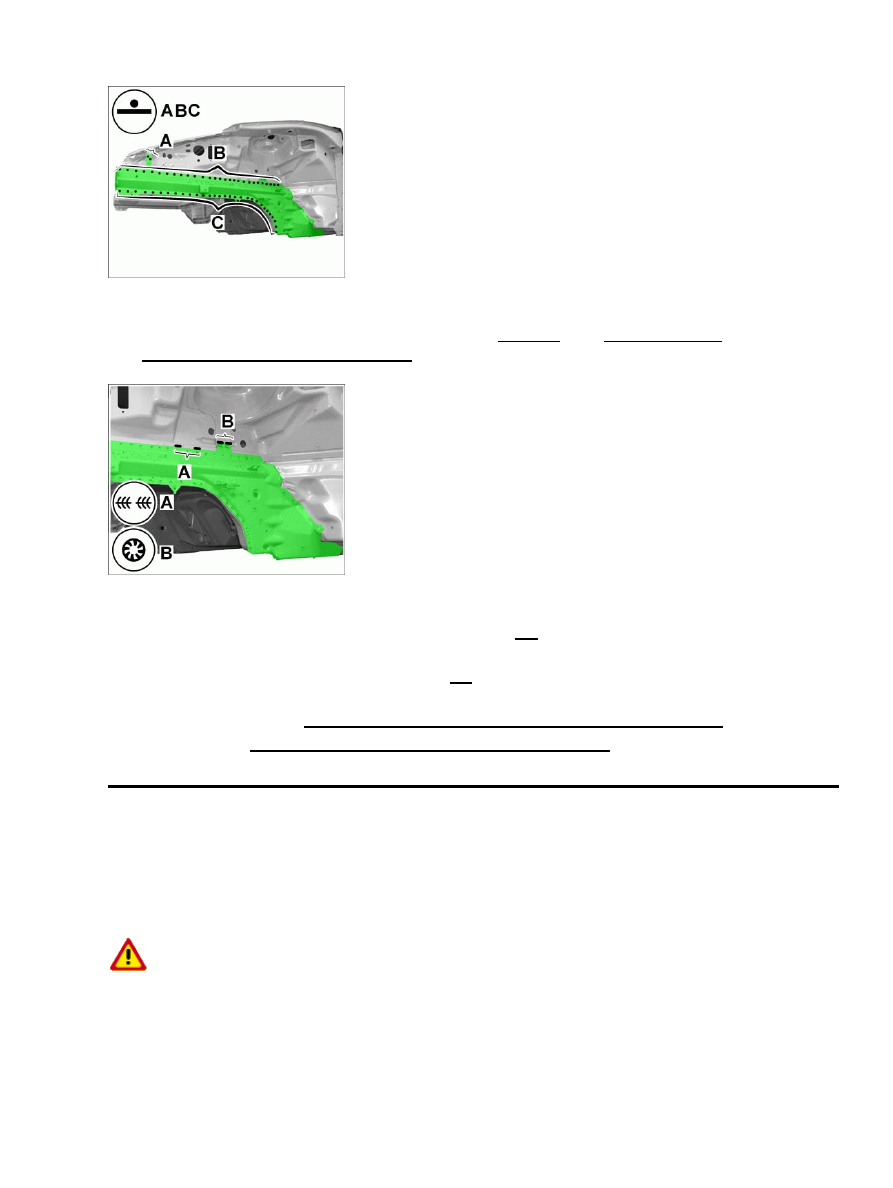

7.1. Resistance spot-weld outer front side member in area -A, B, C- using inverter-welding

equipment ATL Inverterspot WE1194

.

Welding in outer front side member

8. Weld in outer front side member.

8.1. Apply a full weld to the outer front side member in area -A- using inert gas

(interrupted).

8.2. Plug-weld the outer front side member in area -B- using inert

gas.

9. Install floor front section. → 502055 Replacing floor front section - section on "Installing"

10. Install end plate. → 501055 Replacing end plate - section on "Installing"
