Porshe 911 (997). Manual - part 326

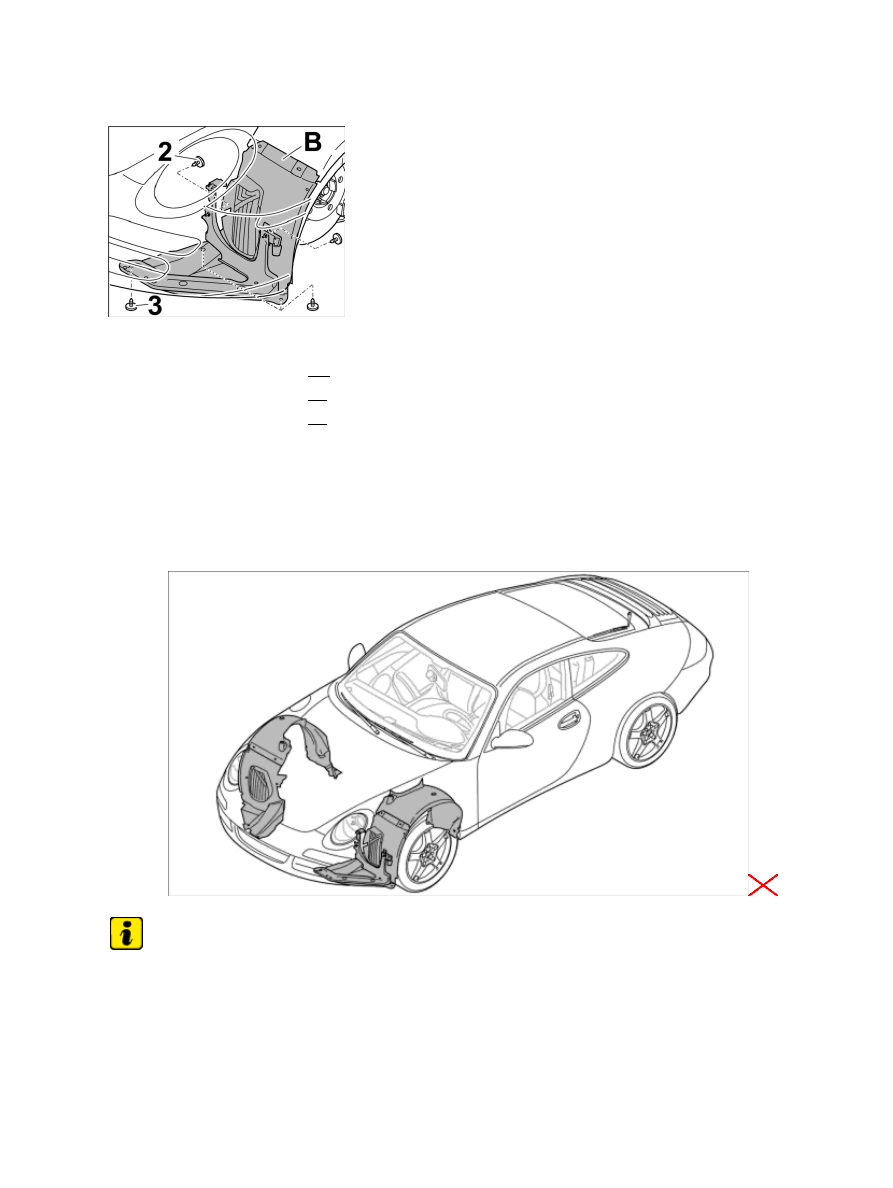

Removing wheel housing liner part B

1. Unscrew fastening screws -2, 3- and remove wheel housing liner

-B-

 .

Installing front wheel housing liner

Install front wheel housing liner - front section

Installation Location:

Installation position of front wheel housing liner

Note

Push in wheel housing liner toward the outside up to contact in wing stop position.

•

Ensure that the right wheel housing liner is guided through the opening on the wheel well.

•

Diagnostic system: reading out fault memory and activating systems

Remove front wheel housing liner - front section

1461

Fasten wheel housing liner part B

1. Insert wheel housing liner -B- .

2. Screw in fastening screws -2- and tighten → Final tightening: 2 (1.5) Nm (ftlb.) .

3. Screw in fastening screws -3- and tighten → Final tightening: 2.8 (1.8) Nm (ftlb.) .

Installing front wheel housing liner - rear section

Installation Location:

Installation position of front wheel housing liner

Note

Push in wheel housing liner toward the outside up to contact in wing stop position.

•

Ensure that the right wheel housing liner is guided through the opening on the wheel well.

•

Diagnostic system: reading out fault memory and activating systems

Install front wheel housing liner - front section

1462

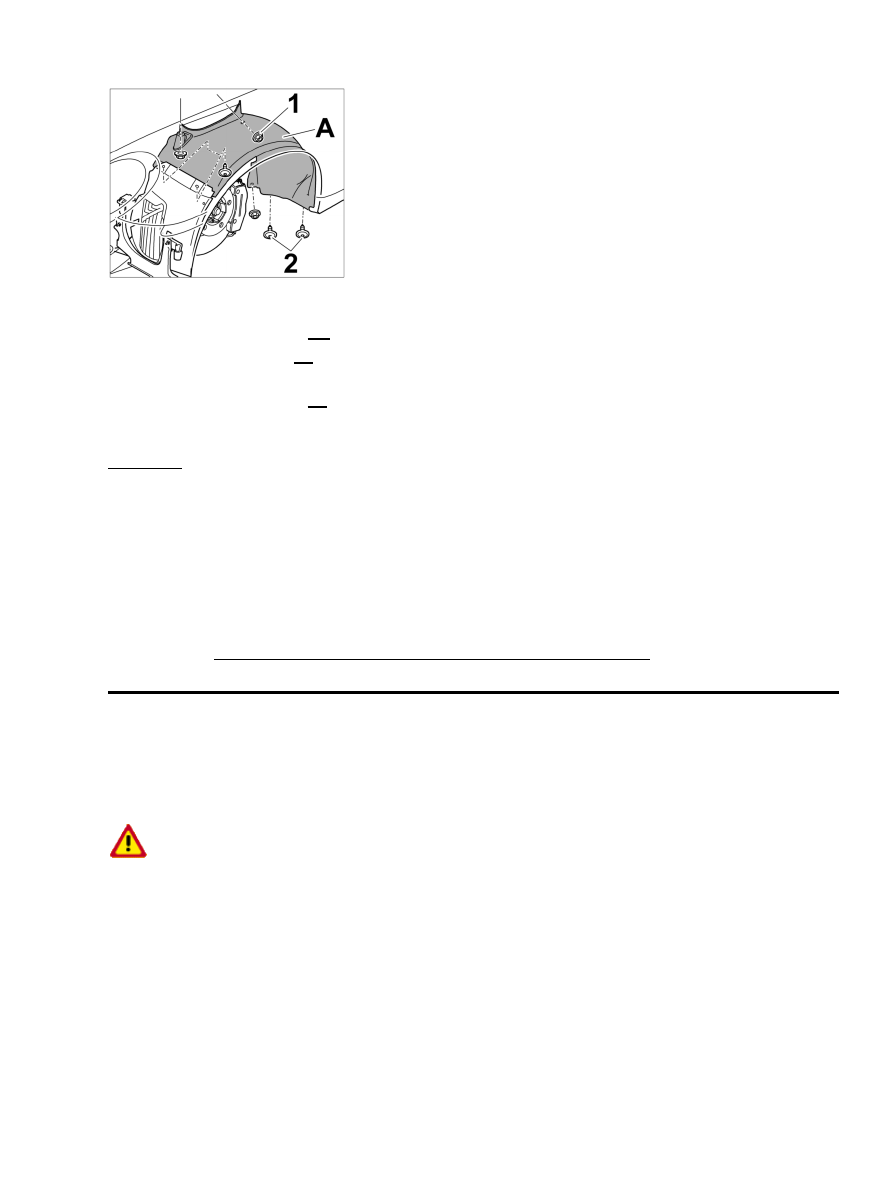

Removing front wheel housing liner - rear section

1. Insert wheel housing liner -A- .

2. Screw on fastening nuts -1- and tighten to the specified tightening torque → Final tightening: 1.5 (1.0

ftlb.) Nm

 .

3. Screw in fastening screws -2- and tighten to the specified tightening torque → Final tightening: 2 (1.5

ftlb.) Nm

 .

Subsequent work

Reworking

Fit front wheel. → 440519 Removing and installing wheel - chapter on "installing"
