Porshe 911 (997). Manual - part 320

Main illustration for removing and installing wing

Fastening top of wing

1. Screw in fastening screws -13- on top flange and tighten lightly.

2. Adjust the contour and gap dimensions relative to the front door and front lid. → 501000  Diagram - body

gap dimensions

3. Tighten fastening screws -13- with specified tightening torque → Tightening torque: 3.5 ftlb. .

4. Tighten fastening screws M6 -18- with tightening torque → Tightening torque: 7.0 ftlb. .

Fastening bottom of wing

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Fastening top of wing

1437

Main illustration for removing and installing wing

Fastening bottom of wing

1. Position wing strut -11- and bracket -12- on the body and tighten with fastening nuts -10- .

Tightening torque → Tightening torque: 7.0 ftlb.

Sticking in the protective film

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Fastening bottom of wing

1438

Main illustration for removing and installing wing

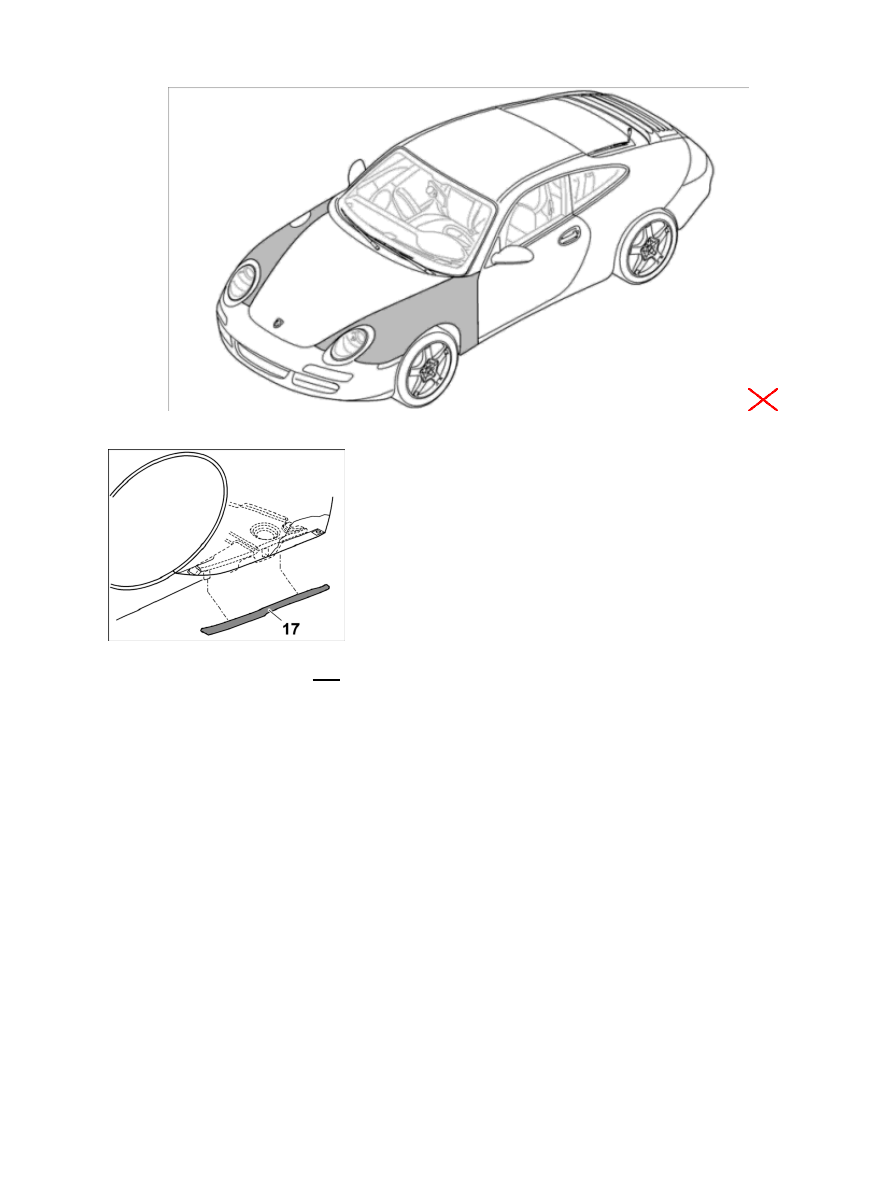

Sticking in the protective film

1. Stick in the protective film -17- .

Installing retaining strip

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Sticking in the protective film

1439

Main illustration for removing and installing wing

Installing retaining strip

1. Clip fastening nuts -16- into place. Fix retaining strip -15- on the wing up against the stop and tighten with

the fastening nuts -14- . Tightening torque → Tightening torque: 2.0 ftlb.

Fastening tank filler neck

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing retaining strip

1440
