Porshe 911 (997). Manual - part 319

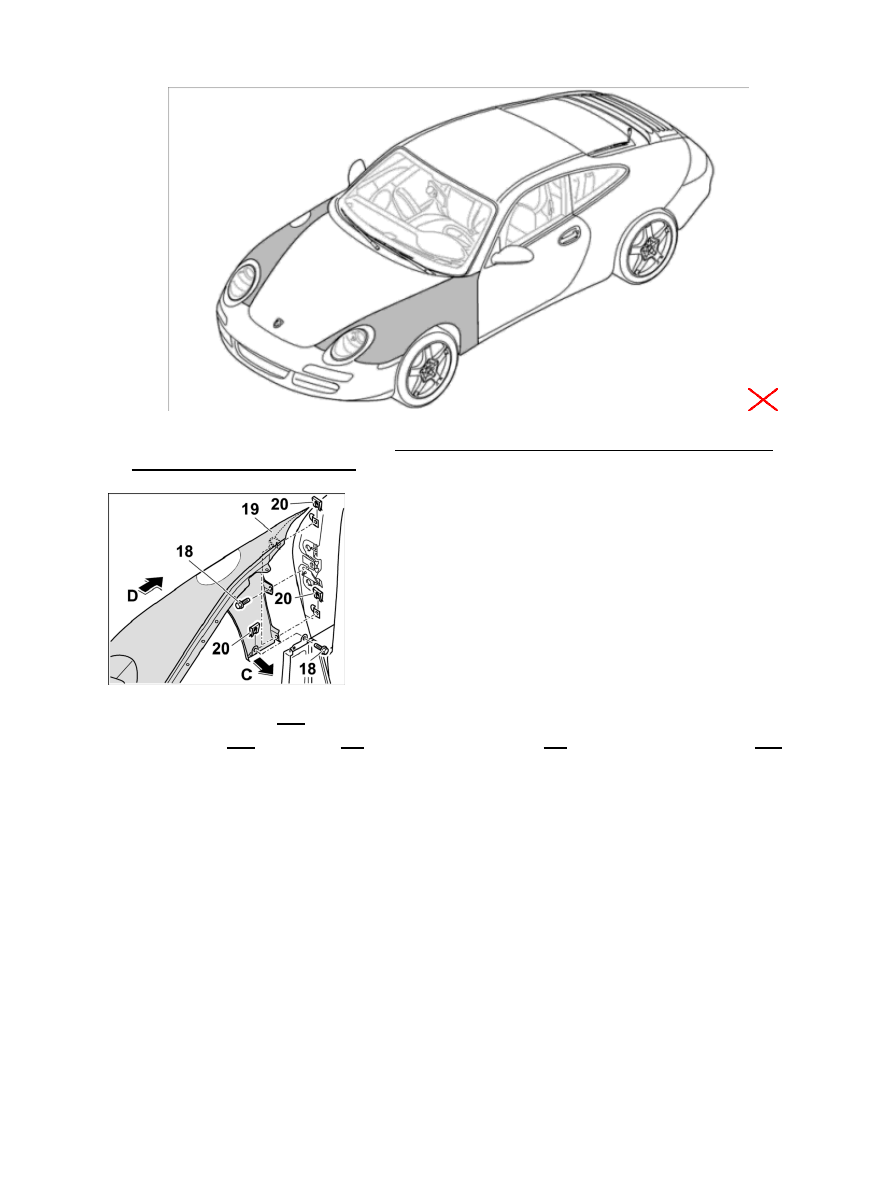

Main illustration for removing and installing wing

Releasing wing from A-pillar

1. Unscrew fastening screws -18- at A-pillar and pull wing out -19- downwards -C- and forwards -D- .

2. Check fastening nut -20- , replacing if necessary.

3. Remove switching element for filler flap. → 553819 Removing and installing switching element for filler

flap - chapter on "Removing"

Removing masking panel

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Releasing wing from A-pillar

1433

Main illustration for removing and installing wing

Removing masking panel

1. Press out pin from plastic expansion rivet -1- and remove masking panel -2- from wing -3- .

Installing the wing

Installing masking panel

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing masking panel

1434

Main illustration for removing and installing wing

Installing masking panel

1. Position masking panel -2- on wing -3- .

2. Press in plastic expansion rivet -1- and secure with pin.

Fastening wing to A-pillar

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing masking panel

1435

Main illustration for removing and installing wing

1. Install switching element for filler flap. → 553819 Removing and installing switching element for

filler flap - chapter on "Installing"

Fastening wing to A-pillar

2. Press in fastening nut -20- .

3. Position wing -19- on the body -C- and slide towards A-pillar -D- . Screw in fastening screws -18- into

the A-pillar and tighten lightly.

Fastening top of wing

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Fastening wing to A-pillar
