46 53 19 Removing and installing rear brake disc - as
of MY 2005

- Preliminary work
- General warning notes
- Removing rear brake disc
- Installing rear brake disc
- Subsequent work

Tools

Designation

Type

Number Explanation

piston resetting fixture
(replaces P83)

commercially
available tool

NR.144

Preliminary work

→ 440519 Removing and installing wheel

General warning notes

WARNING

Risk of accidents if brake pads and/or brake discs are not replaced in time.

Danger of injury and damage to vehicle if braking effect is impaired.

•

→ The brake pads must be replaced when the brake pad warning indicator lights up, but no later than

when there is a residual pad thickness of 2 mm.

ATTENTION

1314

Increased risk of damage to brake discs when mounting/removing wheels.

The brake discs can be damaged.

•

→ Use assembly aid (assembly pins) in order to exclude any possibility of heavy contact of the wheel

with the brake disc.

Removing rear brake disc

WARNING

Risk of accidents if brake pads and/or brake discs are not replaced in time.

Danger of injury and damage to vehicle if braking effect is impaired.

•

→ The brake pads must be replaced when the brake pad warning indicator lights up, but no later than

when there is a residual pad thickness of 2 mm.

1. The adjustment fixture can be twisted through the bores in the wheel

mounting.

Adjusting the parking brake

2. Turn the brake disc in such a way that the adjustment fixture becomes visible. Using a

-screwdriver-

 , turn the adjustment fixture towards "release" through the bore. → Adjusting the

parking brake

Diagnostic system: reading out fault memory and activating systems

General warning notes

1315

Pushing back brake pad

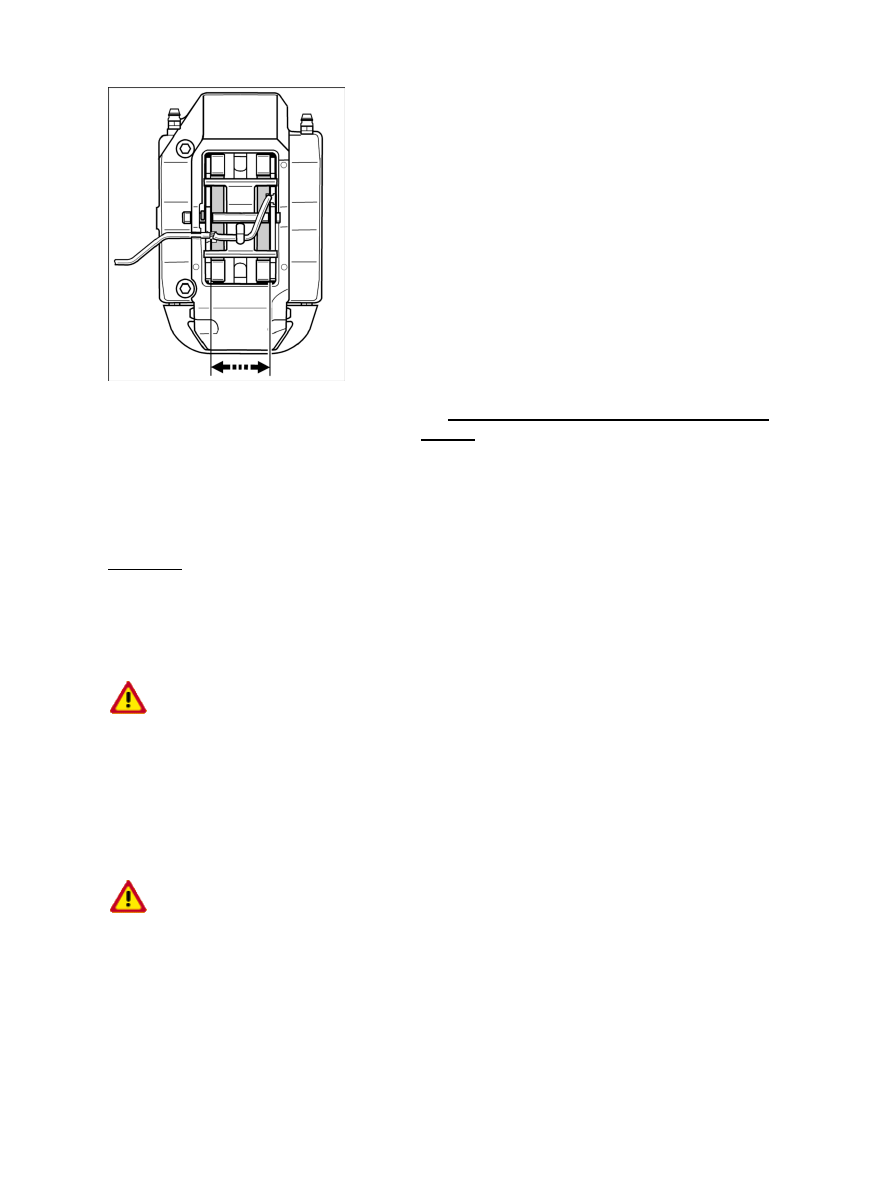

3. Push brake pads back slightly and evenly using piston resetting fixture (replaces P83) NR.144, see

Workshop Equipment Manual, Chapter 2.4 -arrow- .

4. Undo brake calliper on wheel carrier and hang it in a suitable place in the wheel well (do not open the

brake hydraulics). To do this, separate the holder for the brake hose/wear indicator at the body side.

5. Remove brake disc after unscrewing the fastening screws. If necessary, remove the brake disc by

tapping it gently with a rubber hammer.

Installing rear brake disc

WARNING

Risk of accidents if brake pads and/or brake discs are not replaced in time.

Danger of injury and damage to vehicle if braking effect is impaired.

•

→ The brake pads must be replaced when the brake pad warning indicator lights up, but no later than

when there is a residual pad thickness of 2 mm.

ATTENTION

Increased risk of damage to brake discs when mounting/removing wheels.

The brake discs can be damaged.

•

→ Use assembly aid (assembly pins) in order to exclude any possibility of heavy contact of the wheel

with the brake disc.

Do not confuse right and left brake discs during assembly!

Diagnostic system: reading out fault memory and activating systems

Removing rear brake disc

1316
