Removing antenna of rear tyre pressure monitoring system

Installation Location:

Overview of antennas of tyre pressure monitoring system

1. Switch off ignition and remove ignition key.

Unscrewing fastening screw for antenna of rear tyre pressure monitoring system

2. Unscrew the two fastening nuts -1- and remove antenna of tyre pressure monitoring

system.

Pulling plug from antenna of tyre pressure monitoring system

3. Release -Arrow a- and pull off plug and remove antenna of tyre pressure monitoring system.

Diagnostic system: reading out fault memory and activating systems

Removing antenna of rear tyre pressure monitoring system

1245

Installing antenna for tyre pressure monitoring system

Installing antenna of front tyre pressure monitoring system

Pushing plug onto antenna of tyre pressure monitoring system

1. Insert plug until it is felt to engage.

Securing antenna of tyre pressure monitoring system with fastening screw

2. Insert antenna of tyre pressure monitoring system into holder -Arrow A- and secure with fastening

screw -1- . → Tightening torque: 1.5 ftlb.

Installing antenna of rear tyre pressure monitoring system

Diagnostic system: reading out fault memory and activating systems

 Installing antenna for tyre pressure monitoring system

1246

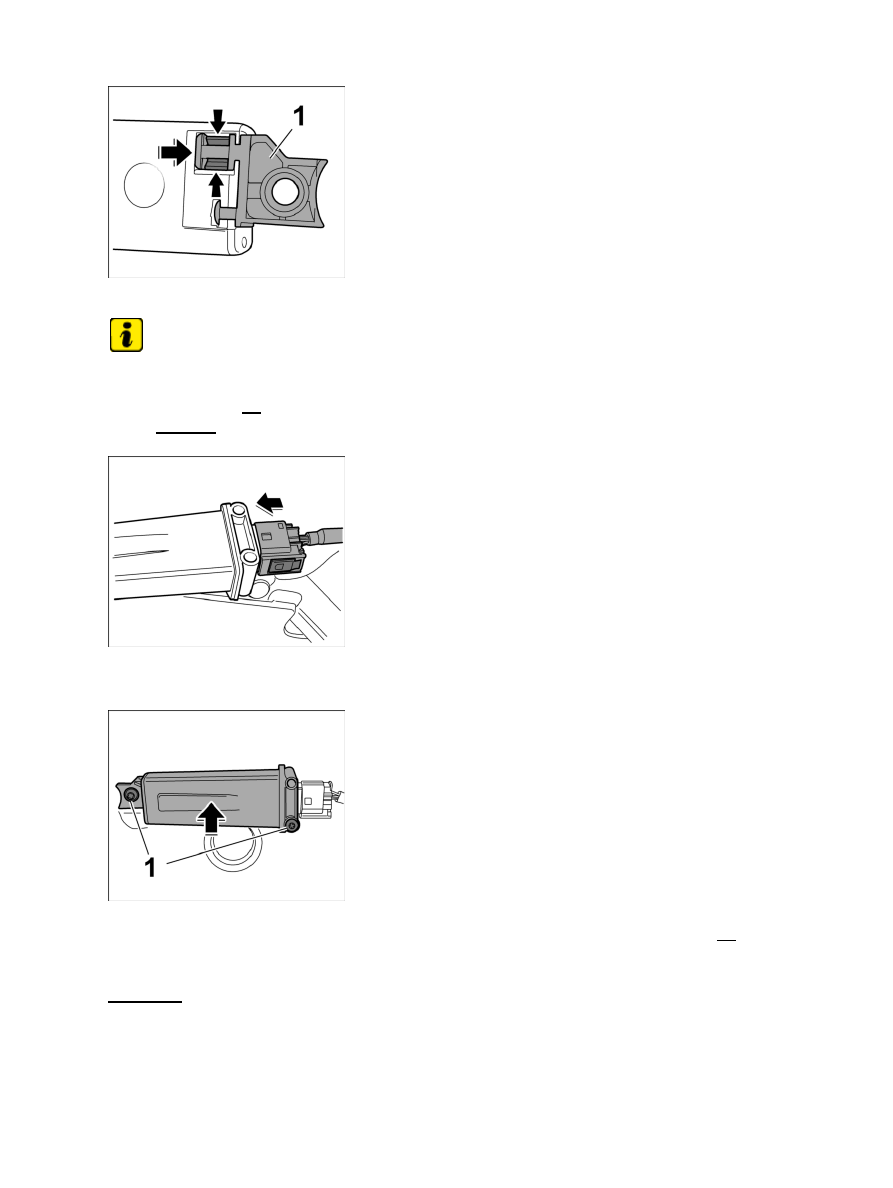

Clipping new holder in antenna of tyre pressure monitoring system

Note

When replacing antenna of rear tyre pressure monitoring system, the holder must also be replaced.

1. Clip new holder -1- in antenna of tyre pressure monitoring system until it is felt to engage in the locking

tab -arrows- .

Pushing plug onto antenna of tyre pressure monitoring system

2. Insert plug until it is felt to engage.

Securing antenna of tyre pressure monitoring system with fastening screws

3. Position antenna of tyre pressure monitoring system and secure with both fastening nuts -1- . →

Tightening torque: 1.5 ftlb.

Diagnostic system: reading out fault memory and activating systems

Installing antenna of rear tyre pressure monitoring system

1247

Subsequent work

Subsequent work

1. Install front wheel housing liner (Part A). → 505619 Removing and installing front wheel housing liner -

chapter on "installing" [997110 997111 997120 997121 997310 997311 997320 997321]→ 505619
Removing and installing front wheel housing liner - chapter on "installing" [997621]→ 505619 Removing
and installing front wheel housing liner - chapter on "installing" [997410 997411 997430 997431 997610
997611 997620]

2. Install rear wheel housing liner (Part A). → 536919 Removing and installing rear wheel housing liner -

chapter on "installing" [997410 997411 997430 997431 997610 997611 997620 997621]→ 536919
Removing and installing rear wheel housing liner - chapter on "installing" [997110 997111 997120
997121 997310 997311 997320 997321]

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
