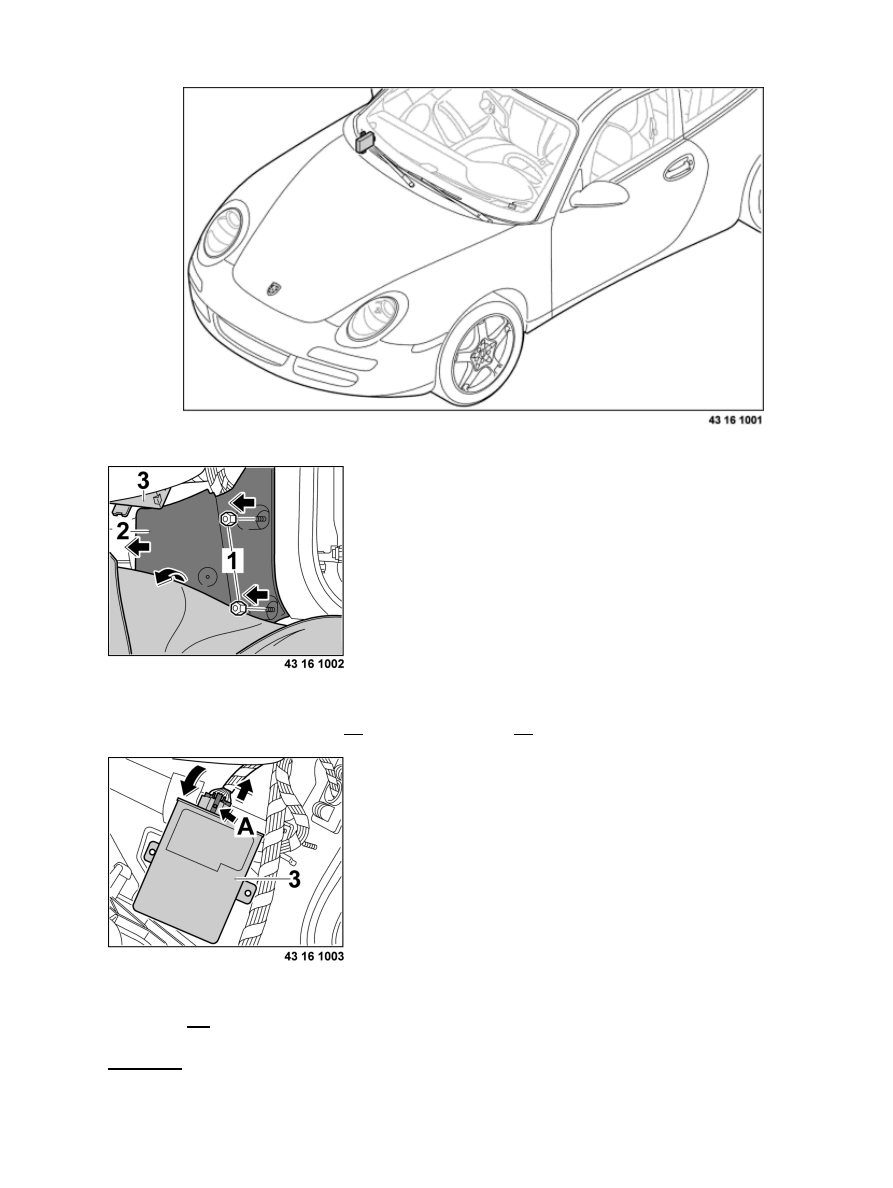

Installation position shown on the 911

Unscrewing cover for passenger's footwell

1. Pull carpet on right-hand side to the side.

2. Unscrew the two fastening nuts -1- and remove the cover -2- .

Disconnecting control unit

3. Unclip control unit from the support and pull it out and down.

4. Release -A- and pull off electric connector.

Diagnostic system: reading out fault memory and activating systems

Removing PASM control unit

1209

Installing PASM control unit

Installing PASM control unit

Connecting the plug connection

1. Connect the electric plug connection until the plug clicks into place.

2. Push in control unit into the support and clip it in.

Screwing on cover for passenger's footwell

3. Fit cover -2- and secure with the two fastening nuts -1- .

4. Stick on carpet at side again onto cover.

Programming PASM control unit

Reading out and writing values for PASM control unit

Diagnostic system: reading out fault memory and activating systems

 Installing PASM control unit

1210

Note

During coding, there should be a guaranteed power supply for the PIWIS tester 9718. It is essential
to connect a battery charger with a current rating of at least 40 A to the vehicle battery.

•

The PIWIS tester 9718 instructions take precedence and in the event of a discrepancy these are the
instructions that must be followed. Deviations may occur with later software versions.

•

The procedure described here has been structured in general terms; different text or additions may
appear in the PIWIS tester 9718.

•

1. Connect the PIWIS tester 9718 to the vehicle and start it. Switch on the ignition. >> Continue.

2. Select the vehicle

type.

3. Using the >> key, move from the vehicle type to the list of control units.

4. Select PASM and press >> .

5. In the PASM menu, select Control unit replacement and press >> .

6. Select Read codes and press >> .

7. On the screen of the PIWIS tester appears the message Coding read-out complete >> .

8. Switch off ignition and replace control unit.

9. Switch to the Special functions menu and perform the vehicle handover using the F8 key.

10. In the Special functions menu, erase All fault memories by pressing >> .

11. Switch on ignition. Once the control unit has been replaced, the vehicle data is uploaded under the Write

in data

 menu (see Section 7). Press >> .

12. PIWIS tester displays Coding write-in complete >> .

13. Carry out a test drive and read out fault

memory.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

Diagnostic system: reading out fault memory and activating systems

Reading out and writing values for PASM control unit

1211

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

ATTENZIONE

Pericolo di perdita dell'abbinamento testo-immagine nella stampa.

Per motivi tecnici non è escluso che, nonostante la rappresentazione sullo schermo
risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.

•

Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

ADVERTENCIA

Al imprimir se corre el riesgo de perder la correcta asignación de las figuras al texto.
