Porshe 911 (997). Manual - part 261

C2 Coupe RoW/USA, Tiptronic

Conventional Groove B

C2 RoW, manual transmission

Conventional Groove B

C2 Cabriolet RoW, Tiptronic

Conventional Groove A

C2 Cabriolet USA, manual transmission

Conventional Groove A

C2 Cabriolet USA, Tiptronic

Conventional Groove A

C2 Coupe RoW, manual transmission, Performance (sport-type running
gear)

Conventional Groove A

C2/C2S Coupe RoW/USA, manual transmission

PASM

Groove A

C2/C2S Coupe RoW/USA, Tiptronic

PASM

Groove B

C2/C2S Cabriolet RoW/USA, manual transmission

PASM

Groove B

C2/C2S Cabriolet RoW/USA, Tiptronic

PASM

Groove A

3. Place pre-tensioned coil spring (with the tighter end of the spring) on the vibration damper.

4. Slide the bellows/additional spring assembly onto the piston rod.

5. Fit

washer.

Supporting mount assembly

6. Position spring strut mount -2- onto the piston rod (with supporting mount -2- , compensating part -3- and

spring support -4- assembly in correct position).

Place the lug on the spring strut mount in the groove of the piston rod (twist lock of piston rod opposite
the supporting mount).

Coil spring

7. Fit new lock nuts on the piston rod. Place the end of the coil spring on the concave washer stop

-arrow-

 .

Diagnostic system: reading out fault memory and activating systems

Assembling spring strut

1201

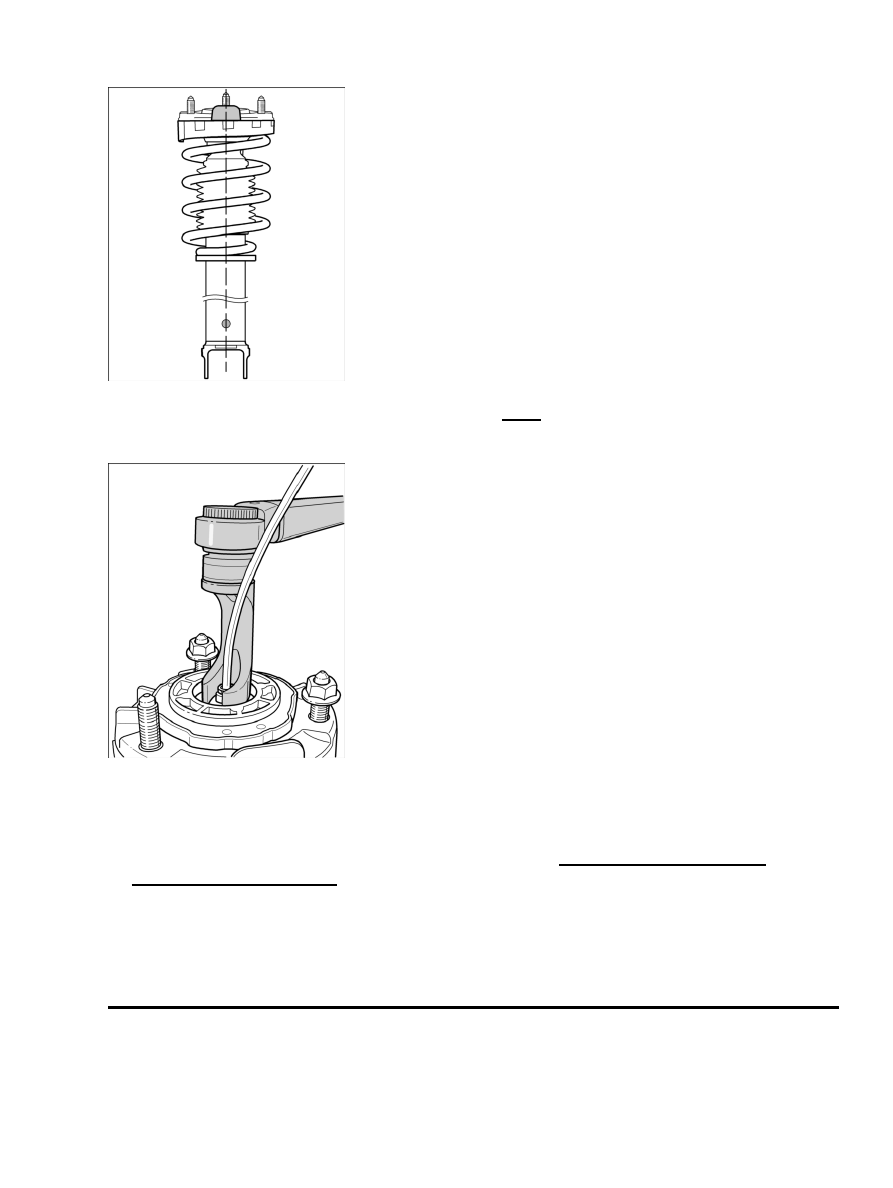

Positioning spring strut mount

8. Align the spring strut mount with the vibration damper. -Lug- of spring strut mount must line up with the

middle fork of the lower vibration damper.

Spring strut mount

9. Tighten lock nut to 32 Nm (24 ftlb.). Counter at the bolts (M8) on the spring strut mount at the same time.

There is no need to counter at the piston rod because there is a strong grip between the spring strut mount
and piston rod.

On PASM spring struts, use a suitable socket wrench insert, e.g. socket wrench insert for ATF
temp. switch assembly NR.18

.

Tightening torque for all 997 rear-axle spring struts: 32 Nm (24
ftlb.).

The tightening torque of 32 Nm (24 ftlb.) applies - even contrary to previously published
specifications - for all 997 rear-axle spring struts (conventional and with PASM)!

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

Diagnostic system: reading out fault memory and activating systems

Assembling spring strut

1202
