Porshe 911 (997). Manual - part 257

Holder for the brake hose/wear indicator

5. Undo the holder for the brake hose/wear indicator -arrow- .

Removing/fitting connecting rod

6. Release connecting rod for stabilizer at bottom -1- and spring strut -2- .

Removing drive shaft

7. Carefully pull wheel bearing housing outwards. Guide the parking brake cable and remove the drive shaft

(assistance of second fitter required). → Removing drive shaft

Installing

Installing rear drive shaft

Diagnostic system: reading out fault memory and activating systems

 Installing

1185

ATTENTION

Increased risk of accidents if the wheel carrier is raised improperly!

Injuries and material damage are possible.

•

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on

wheels).

→ When raising the suspension, use a suitable intermediate layer (hard rubber) .

→ Do not damage the brake cover plate.

Note

Screws are Dacromet-coated and must not be greased.

•

Grease the thread of the axle nut with Optimoly HT.

•

Grease the toothing of the drive shaft lightly with Optimoly HT.

•

To prevent damage to the drive shaft, wheel bearing housing or transmission flange, slide a protective
tube (shop-made) 00000 over the drive shaft.

•

Use new screws and lock nuts.

•

Observe correct tightening torques. After tightening, loosen the connecting link for the stabilizer by
90 degrees and retighten (settling behaviour of the ball joint!). → 42  Tightening torques for rear axle

•

The parking brake is self-adjusting. If the basic setting of the parking brake is correct, further
adjustment operations on the parking brake lever or on the turnbuckle are not necessary.

•

Always check the bellows for damage and if necessary, replace them, if continuing to use the drive
shaft.

•

1. Pull out the wheel bearing housing carefully outwards and run in the drive shaft (2 fitters required). Screw

on axle nuts. Use protection for drive shaft.

2. Fit both upper control arms on the external wheel bearing housing.

Push on protective sleeve

Diagnostic system: reading out fault memory and activating systems

Installing rear drive shaft

1186

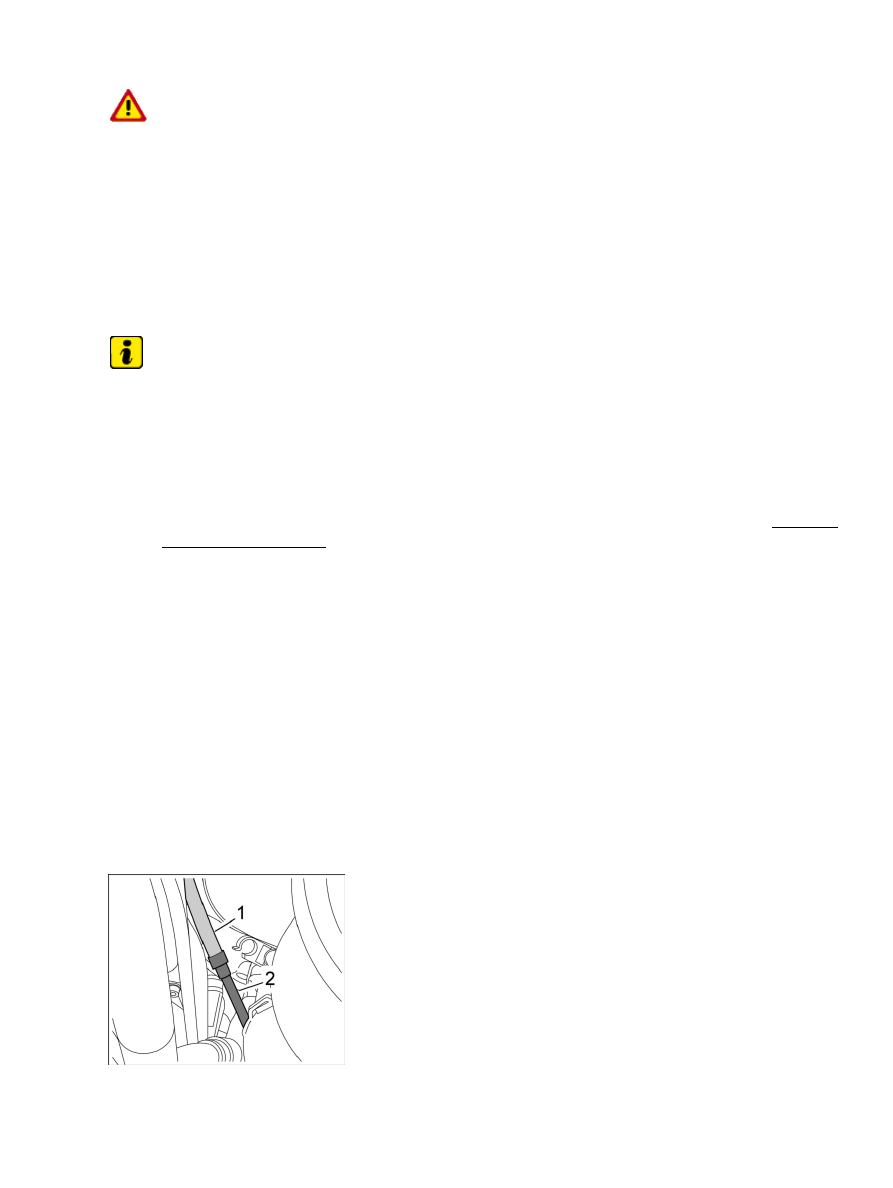

3. Slide the protective sleeve of the parking brake cable -2- on the underbody onto the guide tube -1- .

Ensure it is seated correctly!

Removing/fitting the parking brake cable

4. Engage brake cable in the turnbuckle at sides. → Removing/fitting the parking brake cable Fit floor in

oddments tray of the centre console.

5. Fit lower spring strut, connecting rod for stabilizer, inner drive shaft on transmission and mount for

brake hose/wear indicator.

Protection for drive shaft

6. Remove protection for drive shaft

-arrow-

 .

7. Check parking brake adjustment and adjust if necessary. → 468316 Adjusting the brake

shoe

Subsequent work

Remove and install wheel.→ 440519 Removing and installing wheel
Tighten axle nut (vehicle on ground) whilst operating the brake (2 fitters required).

Checking wheel-alignment values

Check wheel alignment values and adjust if necessary.→ 449503 Performing front and rear suspension
alignment

Diagnostic system: reading out fault memory and activating systems

 Subsequent work

1187
