Diagnostic system: reading out fault memory and activating systems

Assembling spring strut

1181

42 21 19 Removing and installing drive shaft - as of
MY 2005

- Preliminary work
- Removing
- Installing
- Subsequent work

Tools

Designation

Type

Number Explanation

protective tube (shop-made)

commercially
available tool

00000

universal drive shaft/wheel
hub extractor as of model '86

commercially
available tool

NR.87-1

Preliminary work

1. Release axle nut (vehicle on ground) whilst operating the brake (2 fitters required).

Remove and install wheel.→ 440519 Removing and installing wheel

Removing

1182

Removing rear drive shaft

Note

To prevent damage to the drive shaft, rear axle support side member or transmission flange, a
protective tube (shop-made) 00000 must be pushed over the drive shaft or the drive shaft must be
secured.

•

During removal of the drive shaft, the wheel bearing housing remains in the vehicle and is swivelled
outwards at the top side.

•

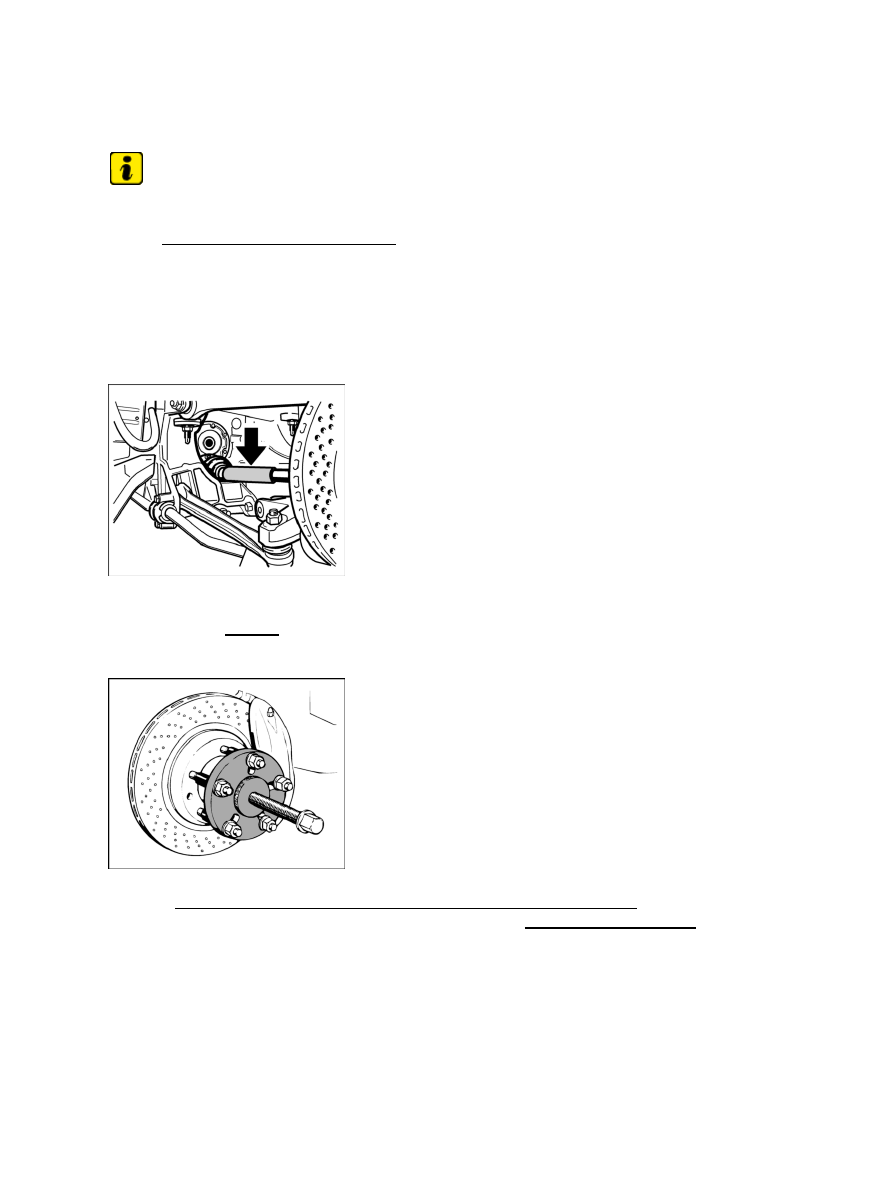

Protection of the drive shaft

1. Fit protection -arrow- for drive shaft. Release inner end of drive shaft from the

transmission.

Pressing out drive shaft

2. Using universal drive shaft/wheel hub extractor as of model '86 NR.87-1 carefully press out the

pin of the drive shaft until the shaft can be moved by hand. → Pressing out drive shaft

Diagnostic system: reading out fault memory and activating systems

Removing rear drive shaft

1183

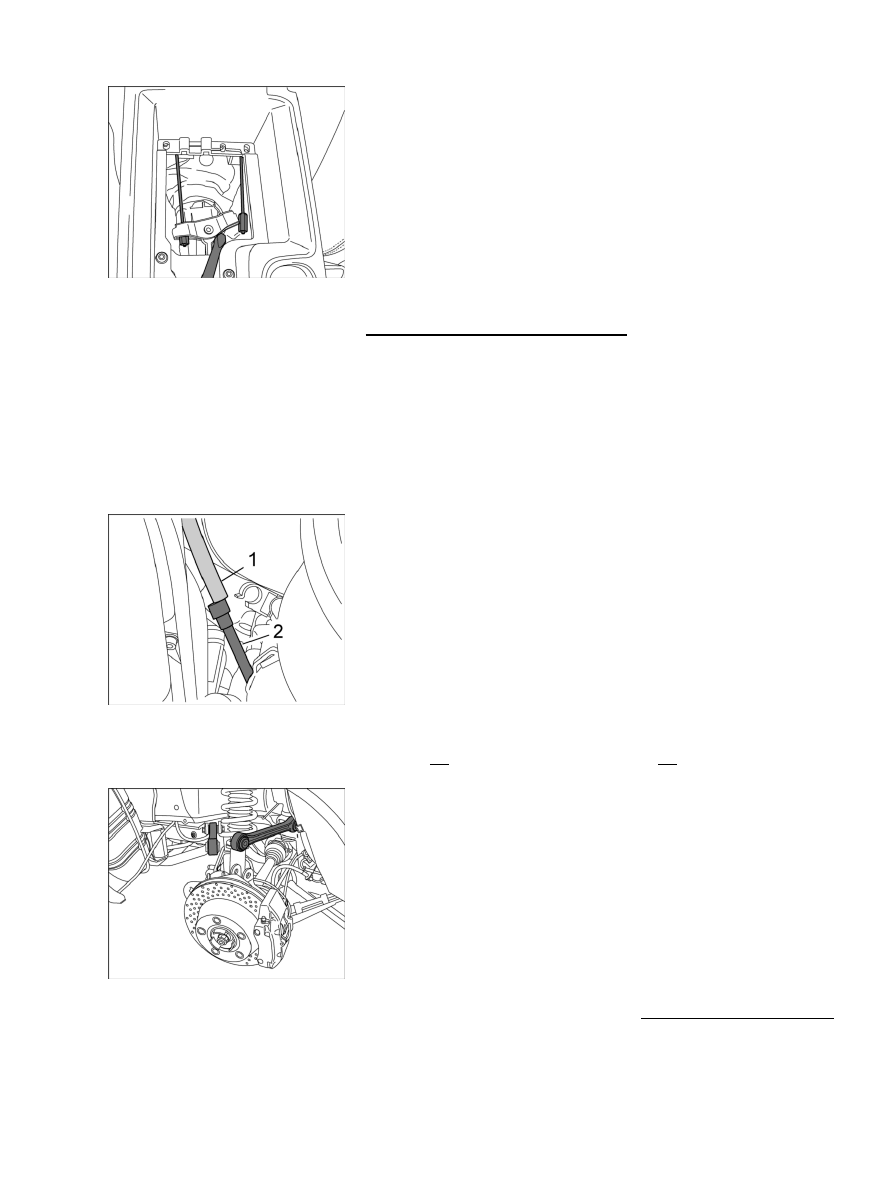

Removing/fitting parking brake cable

The parking brake cable must be disengaged from the parking brake lever in the passenger compartment
before the drive shaft can be removed. → Removing/fitting parking brake cable Disengaging the parking brake
cable includes:

Undo parking brake lever (do not operate until after fitting! Self-adjusting!)

•

Open cover of oddments tray in centre console.

•

Remove bottom of oddments tray in centre console.

•

Disengage the relevant parking brake cable to the side of the turnbuckle.

•

Pulling off protective sleeve

3. Pull protective sleeve of parking brake cable -2- from guide tube on underbody -1- .

Upper axle struts detached

4. Detach both upper axle struts from the outside of the wheel bearing housing. → Upper axle struts detached

Diagnostic system: reading out fault memory and activating systems

Removing rear drive shaft

1184
