Porshe 911 (997). Manual - part 247

- Information
- Preliminary work
- Checking and topping up oil for final drive
- Subsequent work

Tools

Designation

Type

Number Explanation

ATF filling device for
filling transmission

commercially
available tool

NR.161

Information

Notes

Note

Fill only with oil approved by Porsche. See Spare Parts Catalogue.

Note

Hot vehicles should cool down before beginning the activity.

Note

Vehicle must be horizontal in order to be filled and checked.

1145

Preliminary work

Preliminary work

1. Raise the vehicle at the prescribed jacking points. →   Lifting the vehicle

2. Remove the underbody panels. → 519419 Removing and installing rear trim - removing

3. Place oil collection pan under the transmission.

Checking and topping up oil for final drive

Checking and topping up oil for final drive

WARNING

Oil for rear final drive can emerge

Oil for final drive is harmful to the eyes

•

→ Wear personal protective gear (goggles, gloves)

WARNING

Hot oil for rear final drive can emerge

Hot oil for final drive is harmful to the eyes and can cause scalding

•

→ Always allow oil for final drive to cool down before starting work

→ Wear personal protective gear (goggles, gloves)

Diagnostic system: reading out fault memory and activating systems

 Preliminary work

1146

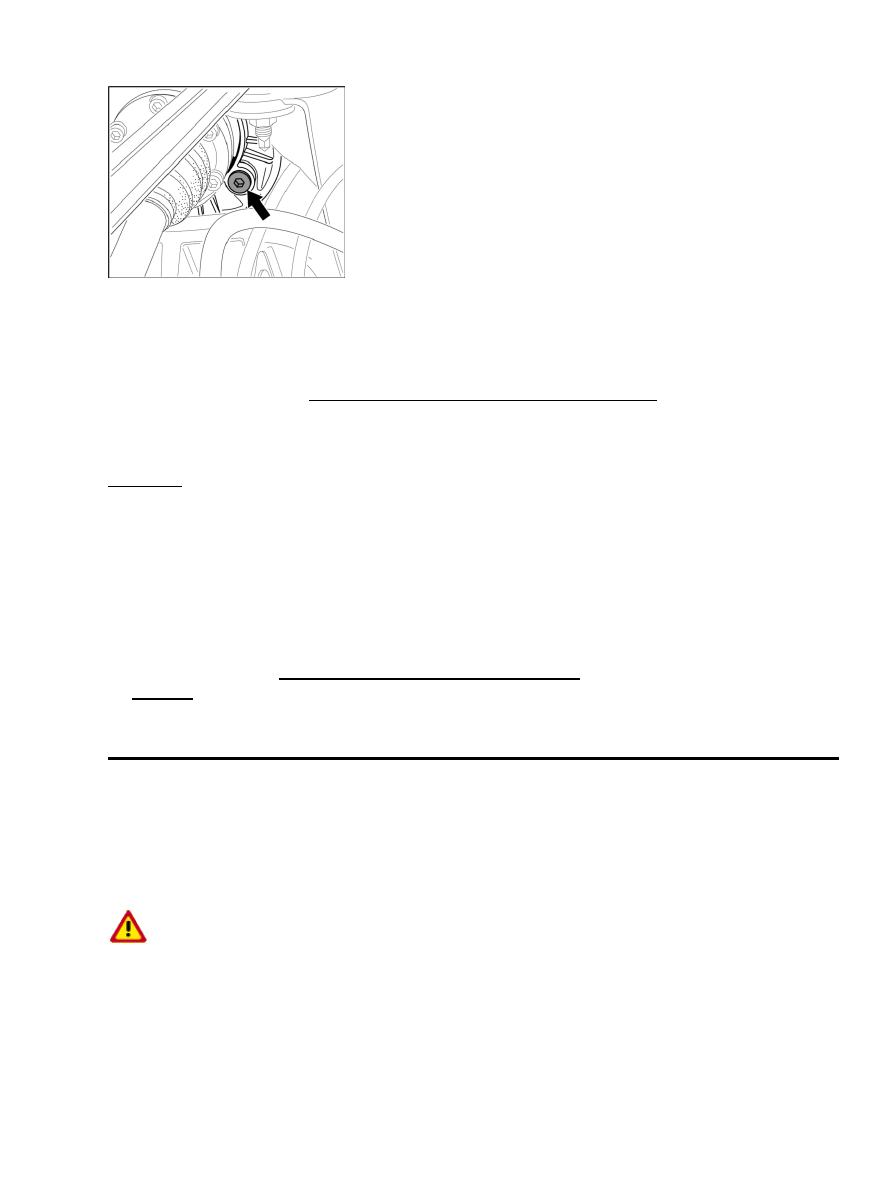

Oil filler screw on final drive

1. Unscrew oil filler plug.

If oil escapes, the oil level in final drive is Ok. Continue with position 3.
If no oil escapes, the oil level in final drive is too low. Continue with position 2.

2. Fill oil for final drive with ATF filling device for filling transmission NR.161 until oil escapes at the oil

filler opening.

3. Replace sealing ring for filler plug, clean filler plug, and tighten. → Tightening torque: 16 ftlb.

Subsequent work

Reworking

1. Fit underbody panels. → 519419 Removing and installing rear trim -

installing

2. Lower the vehicle.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

Diagnostic system: reading out fault memory and activating systems

Checking and topping up oil for final drive

1147

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

ATTENZIONE

Pericolo di perdita dell'abbinamento testo-immagine nella stampa.

Per motivi tecnici non è escluso che, nonostante la rappresentazione sullo schermo
risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.

•

Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

ADVERTENCIA

Al imprimir se corre el riesgo de perder la correcta asignación de las figuras al texto.
