Diagnostic system: reading out fault memory and activating systems

Subsequent work

1133

39 88 19 Removing and installing front final drive - as
of MY 2006

- Preliminary work
- Removing front final drive
- Installing front final drive
- Subsequent work

Preliminary work

Preliminary work

1. Raise the vehicle at the specified jacking points. → 401000  Lifting the vehicle

2. Remove underbody panel. → 519419 Removing and installing rear cover - removing→ 519320

21 Removing and installing middle cover - removing→ 519219 Removing and installing front cover -
removing

3. Remove cardan shaft. → 390219 Removing and installing cardan shaft - section on "Removing"

Removing front final drive

Removing front final drive

Diagonal braces

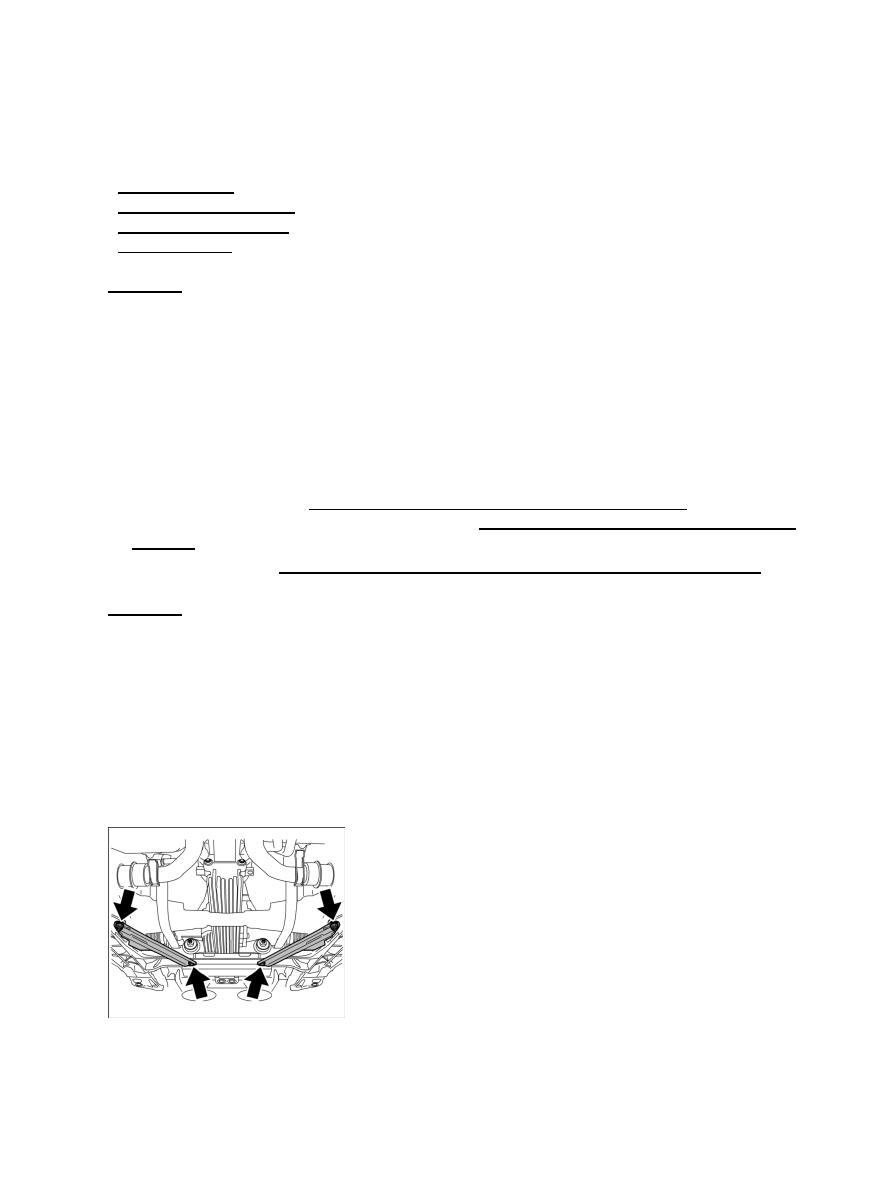

1. Remove front diagonal braces.

 39 88 19 Removing and installing front final drive - as of MY 2006

1134

Cover

2. Remove front cover.

Drive shaft

Note

Protect drive shafts against mechanical damage (e.g. with a rubber hose which has been cut open).

3. Remove front drive shafts on transmission side. To do this, unscrew the six hexagon socket head

bolts joining each drive shaft and transmission flange. Counter at the wheel to stop it from turning.

4. Place transmission jack under the final drive and fasten retaining strap.

Fastening screws for pipe holder

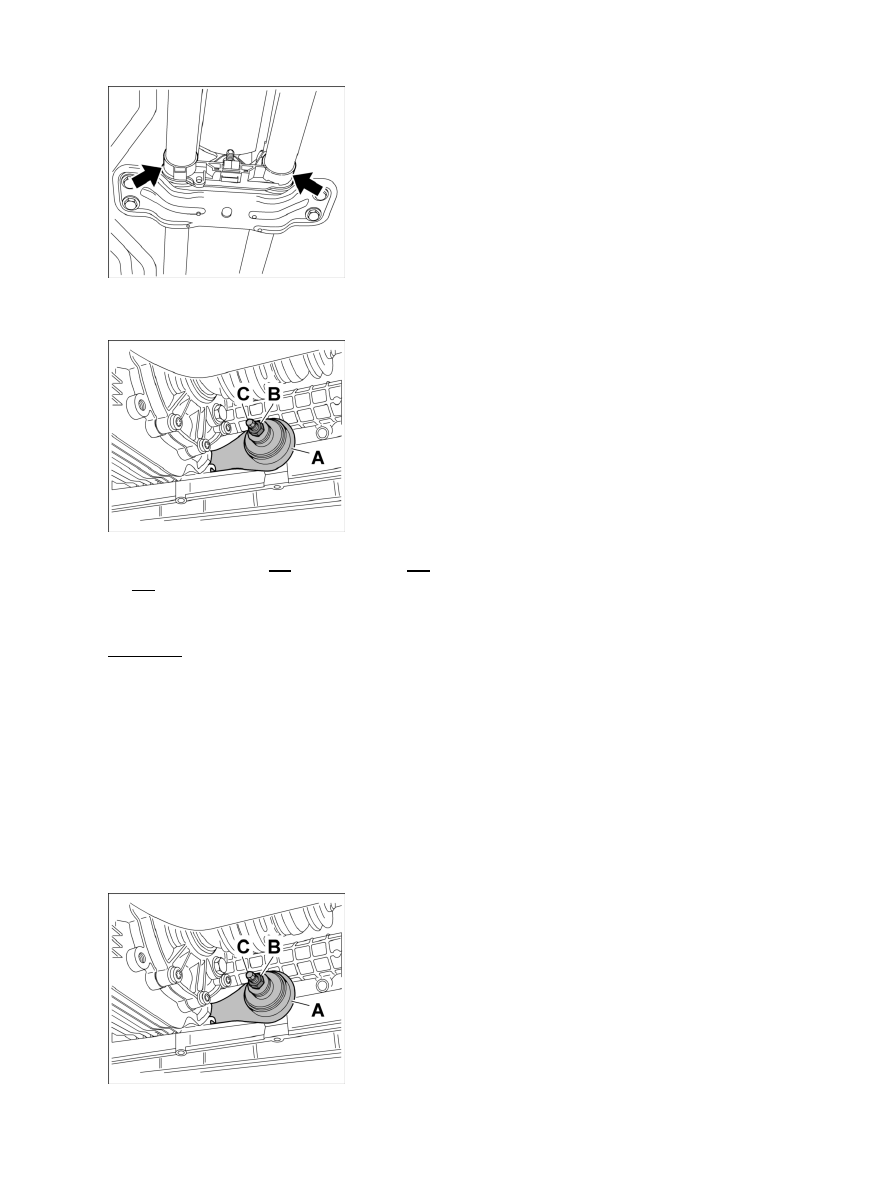

5. Unscrew fastening screws for pipe holder -A- . Never loosen screw between pipe holder and

transmission mount -B- .

Diagnostic system: reading out fault memory and activating systems

Removing front final drive

1135

Pipe holder

6. Disengage pipe holder from lines and remove it.

Final drive mount

7. Undo fastening nuts -B- for front bracket -A- and unscrew the studs

-C-

 .

8. Carefully lower the final drive out. When doing so, avoid damaging the coolant pipes.

Installing front final drive

Installing front final drive

1. Carefully guide the final drive into position from below. When doing so, avoid damaging the coolant

pipes.

Diagnostic system: reading out fault memory and activating systems

 Installing front final drive

1136
