Porshe 911 (997). Manual - part 231

Remove drive shaft on transmission side. To do this, unscrew the six hexagon socket head bolts
joining the drive shaft and halfshaft flange.

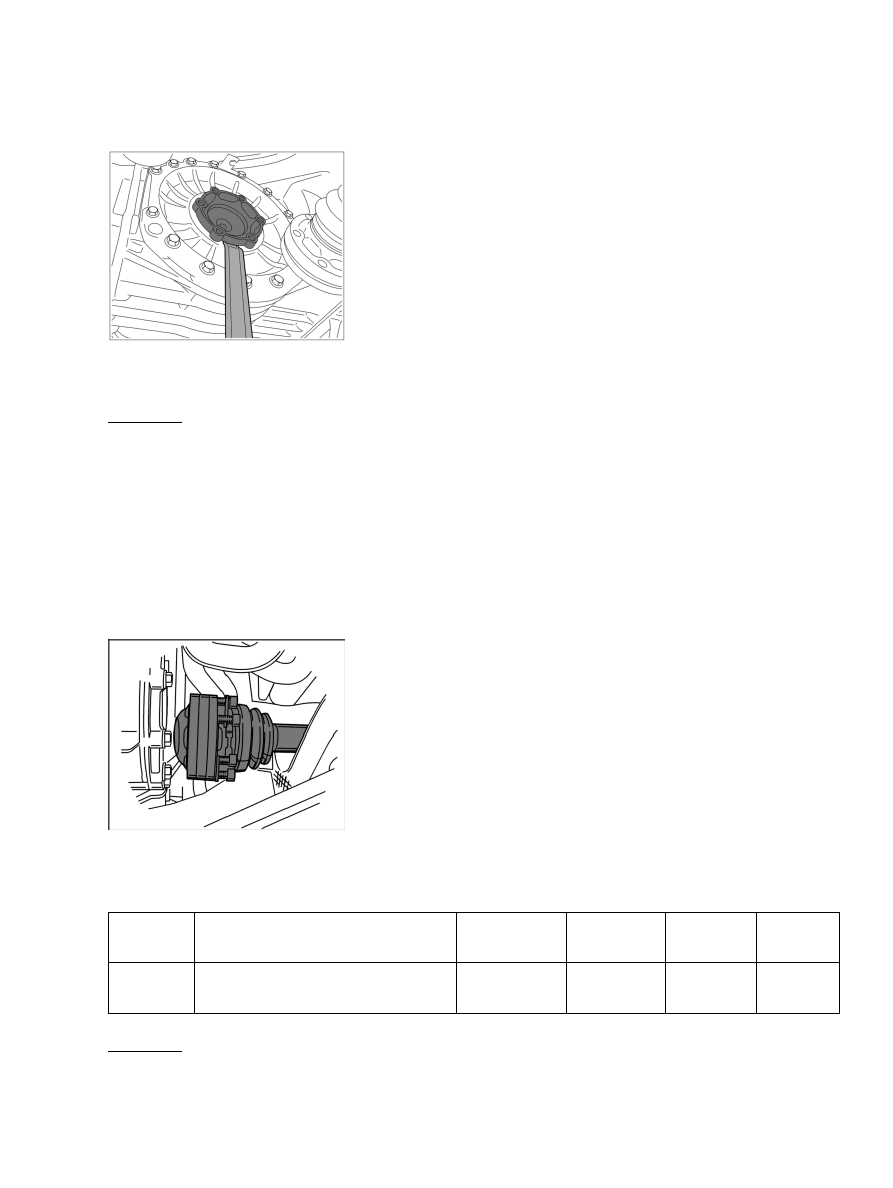

Levering out halfshaft flange

2. Lever out halfshaft flange.

Installing halfshaft flange

1. Insert halfshaft flange fully into the transmission.

Drive shaft

2. Fit drive shaft on transmission side. To do this, screw in the six Allen screws joining drive shaft

and transmission flange and tighten screws.

Location

Explanation

Type

Basic value

Tolerance

Drive
shafts

Fastening screws between drive shaft
and halfshaft flange

Tightening
torque

81 (60) Nm

(ftlb.)

Diagnostic system: reading out fault memory and activating systems

Removing halfshaft flange

1081

Subsequent work

1. Fit the underbody panel. → 519419 Removing and installing rear cover - chapter on

"installing"

2. Lower the vehicle.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
