Cross member

1. Remove cross member.

Bracket for the coolant lines

2. Disengage the coolant lines at the fastening points.

Electric plug

3. Remove electric plug.

4. Disengage cable and vacuum line from the retaining clips of the ATF pan.

Diagnostic system: reading out fault memory and activating systems

Dismantling

1037

Coolant lines

5. Disengage the coolant hoses in the area of the left drive shaft.

6. Pull vacuum line off the switch-over valve.

7. Undo the left drive shaft on the transmission side.

Holder for coolant lines

8. Remove the holder for the coolant

hoses.

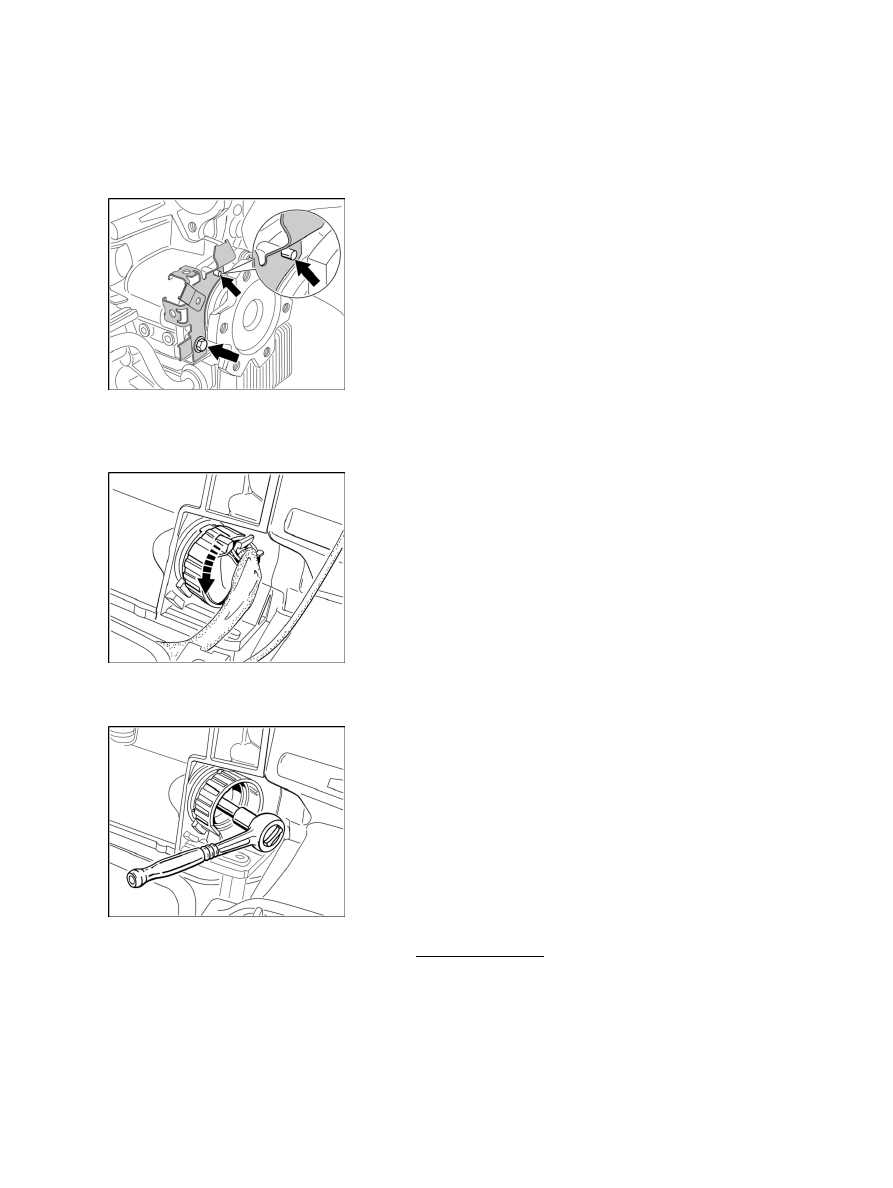

Disengaging plug connection

9. Unlock electrical plug connection by turning it counter-clockwise and pull out electrical plug.

Removing bush

10. Unscrew guide bush fastening screw with assembly aid 9663 and pull out bush.

Removing the electrohydraulic control unit

Diagnostic system: reading out fault memory and activating systems

Removing the electrohydraulic control unit

1038

Removing ATF pan

1. Loosen screws crosswise and remove ATF pan.

ATF filter

2. Disconnect ATF filter downwards from electromagnetic control unit.

Removing control unit

3. Unscrew fastening screws -Pfeil- for electromagnetic control unit and remove

control unit.

Installing the electrohydraulic control unit

Diagnostic system: reading out fault memory and activating systems

 Installing the electrohydraulic control unit

1039

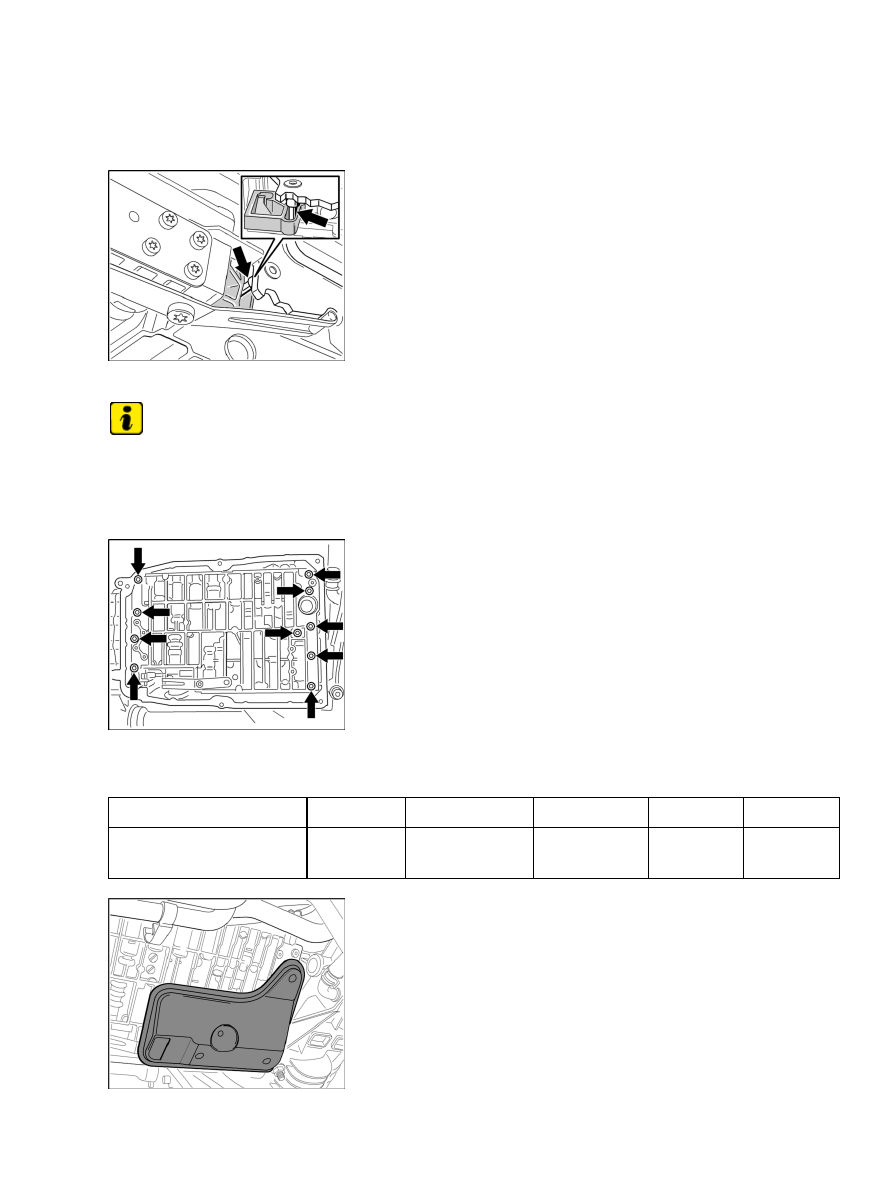

Installing the electrohydraulic control unit

Selector valve and driver

Note

The selector lever must be in position P in order to fit the electrohydraulic control unit.

1. Insert electrohydraulic control unit into the transmission from below. The selector valve must

engage in the driver of the notched plate.

2. Screw in fastening screws and tighten hand tight.

3. Tighten fastening screws.

Location

Explanation

Type

Basic value

Tolerance 1 Tolerance 2

Electrohydraulic control
unit

Tightening
torque

8 (6.0 ftlb.) Nm

Diagnostic system: reading out fault memory and activating systems

Installing the electrohydraulic control unit

1040
