Diagnostic system: reading out fault memory and activating systems

Subsequent work

981

- Preliminary work
- Removing Tiptronic rocker switch
- Installing Tiptronic rocker switch
- Subsequent work

Preliminary work

Preliminary work

1. Remove driver's airbag unit. → 695819 Removing and installing driver's airbag unit - section on

"Removing"

Removing Tiptronic rocker switch

Removing Tiptronic rocker switch

The graphics below show how to remove the left rocker switch. The description also applies for the right
rocker switch.

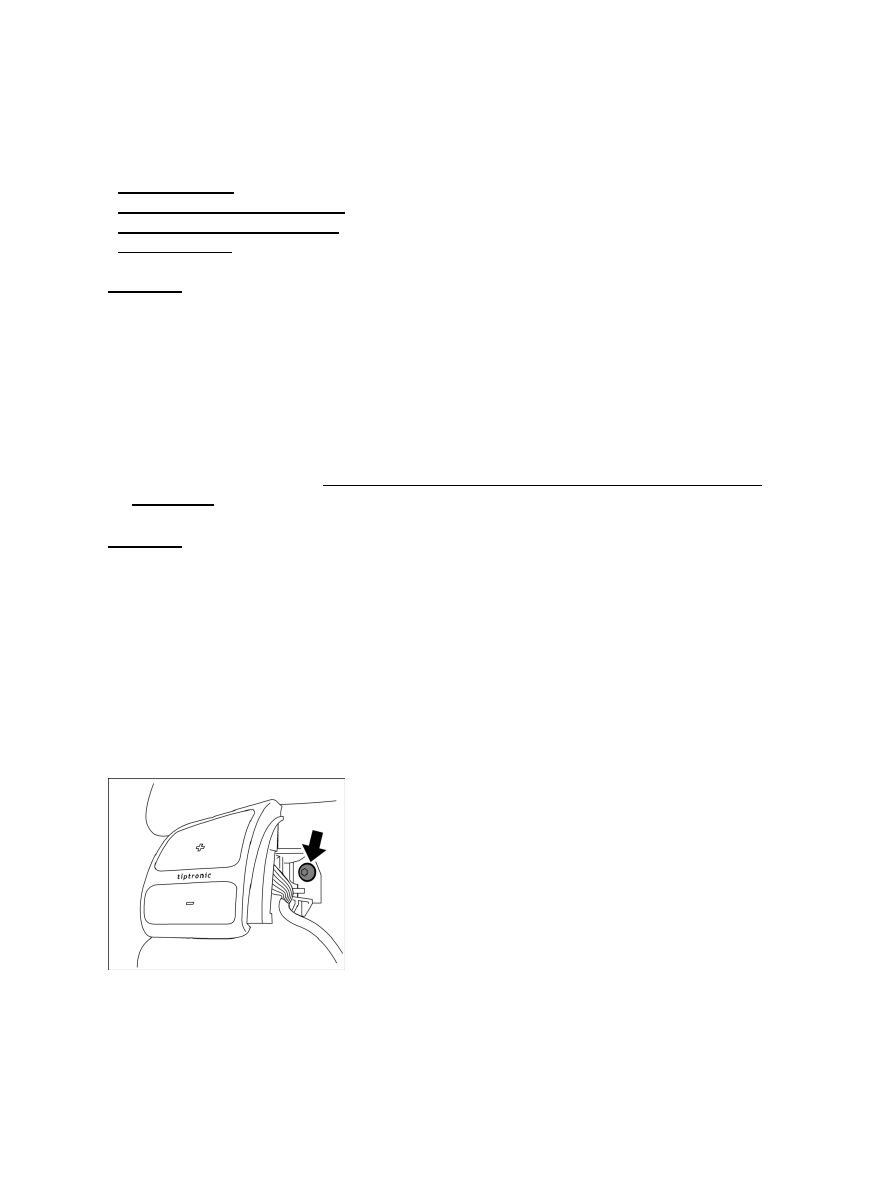

Rocker switch fastening screw

1. Unscrew fastening screw for rocker switch.

982

Rocker switch

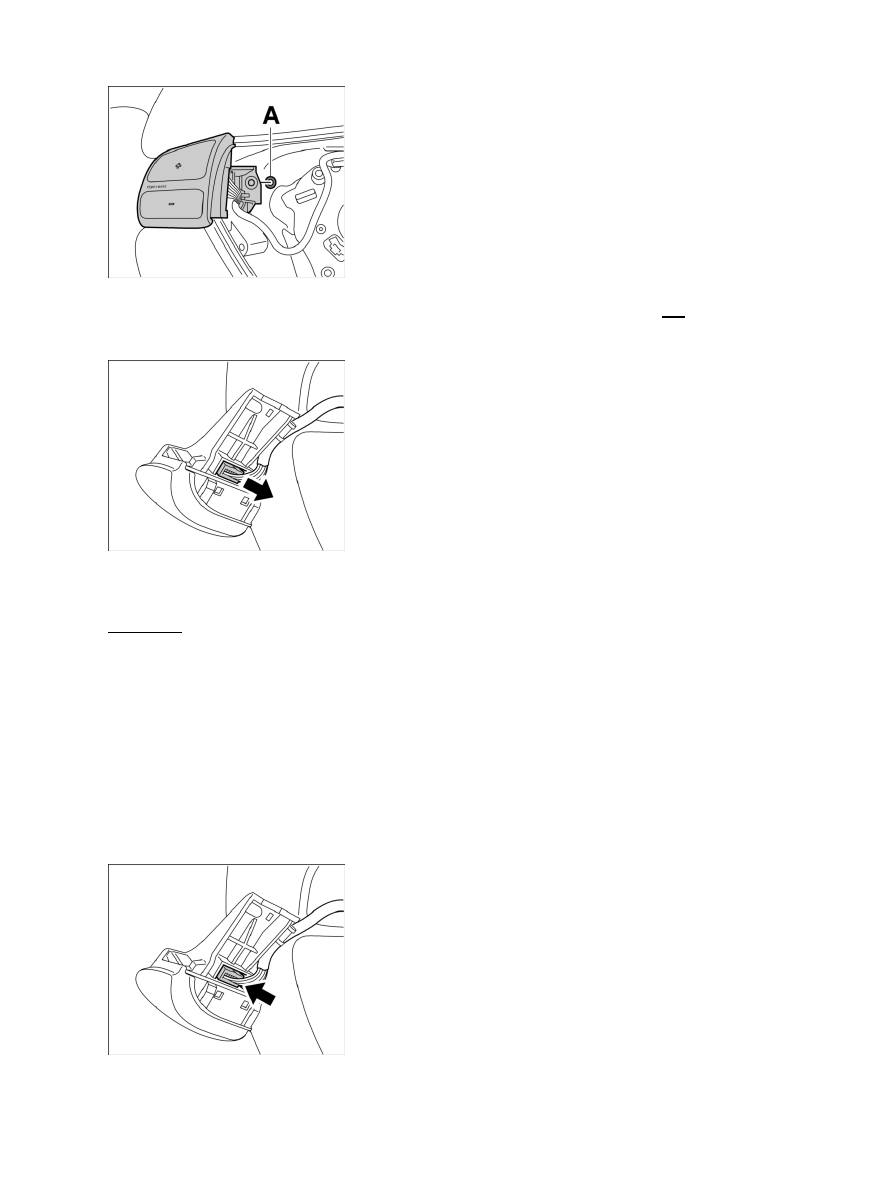

2. Carefully lever out rocker switch using a screwdriver. Watch out for the washer -A- when levering out the

rocker switch.

Pull out electric plug

3. Unlock and disconnect the electric plug connection.

Installing Tiptronic rocker switch

Installing Tiptronic rocker switch

The graphics below show how to install the left rocker switch. The description also applies for the right rocker
switch.

Inserting electric plug

1. Insert electric plug connection into rocker switch until the plug engages firmly.

Diagnostic system: reading out fault memory and activating systems

Removing Tiptronic rocker switch

983

Fitting rocker switch

2. Insert rocker switch and washer into steering wheel and screw in fastening

screw.

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Fastening
screw

Fastening screw between rocker
switch and steering wheel

Tightening
torque

3 (2 ftlb.)

Nm

Subsequent work

Subsequent work

1. Install driver's airbag unit. → 695819 Removing and installing driver's airbag unit - section on

"Installing"

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
