Porshe 911 (997). Manual - part 205

Note

The selector lever cable must be layed above the intermediate carrier.

1. Push cable through the body opening from below.

Rubber sleeve in body opening

2. Apply a coating of lubricant (e.g. Contifix tyre mounting paste) on the rubber sleeve and B+ wiring

in the area of the body opening, insert the B+ wiring in the rubber sleeve and press rubber sleeve into
the body opening.

Engaging selector lever cable on transmission

Note

During installation, make sure the selector lever on the transmission is in position P (stop to the rear).

3. Clip selector lever cable into support on transmission and press end piece of selector lever onto

transmission.

Pinion shaft cover

4. Fit plastic cover -A- around pinion shaft.

Diagnostic system: reading out fault memory and activating systems

Fastening selector lever cable on transmission

977

Transmission support

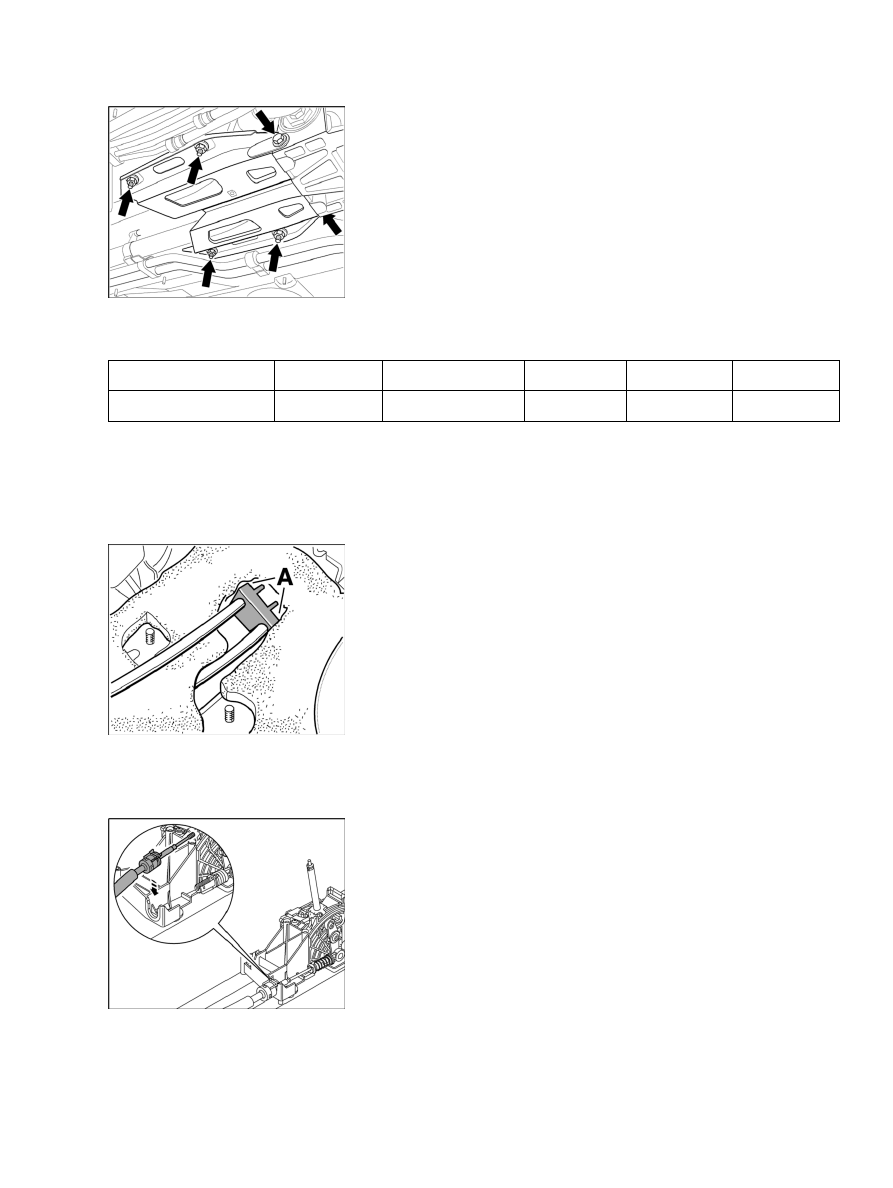

5. Fit transmission support.

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Transmission support

Tightening torque

48 ftlb.

Securing selector lever cable inside vehicle

Tab

1. Bend tabs -A- at body opening down.

Clipping in support bracket

2. Clip in support bracket at selector frame.

Diagnostic system: reading out fault memory and activating systems

Securing selector lever cable inside vehicle

978

Engaging selector cable

Note

During installation, make sure that the selector lever is in position P on the selector frame and transmission.

3. Engage adjustment pins.

Closing bayonet lock

4. Close bayonet lock.

Subsequent work

Subsequent work

1. Fasten parking-brake lever. → 466119 23 Removing and installing parking-brake lever - chapter on

"Installing"

2. Install centre console. → 681719 Removing and installing centre console - chapter on "installing"

3. Install selector knob. → 370419 Removing and installing selector knob - chapter on

"installing"

4. Install underbody panel. → 519319 Removing and installing centre underbody panel - chapter on

"installing"→ 519419 Removing and installing rear cover - chapter on "installing"

5. Lower the vehicle.

6. Switch through all transmission ranges and check operation.

Diagnostic system: reading out fault memory and activating systems

 Subsequent work

979

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
