Installation position

Removing detachable cover

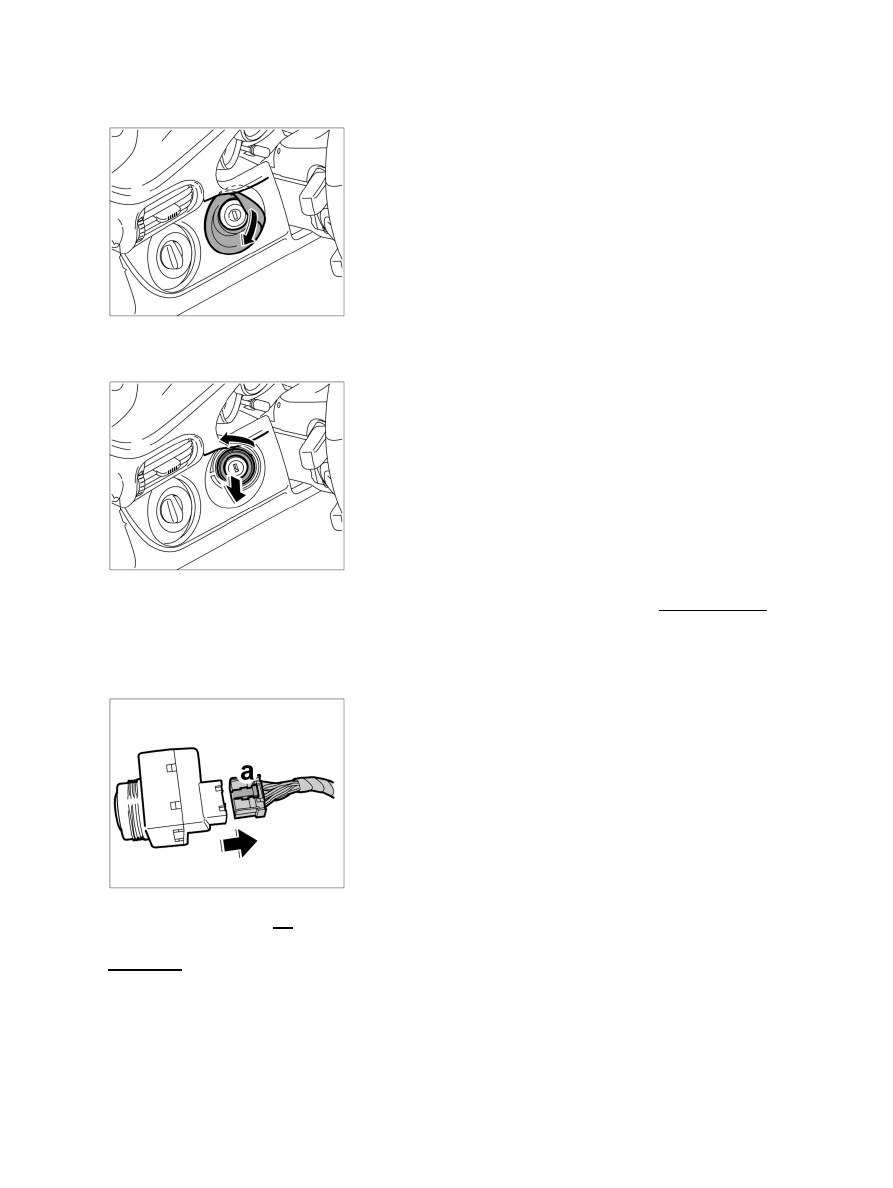

1. Carefully lift up rubber sleeve on the ignition switch using a plastic spatula, for example, and remove it.

Unscrewing union nut from ignition switch

2. Turn union nut using a narrow plastic spatula, for example, or using the special wrench T10152 tool

and unscrew the ring from the ignition switch.

3. Press ignition switch inwards and remove towards the

bottom.

Releasing and pulling off electric plug

4. Release electric plug -a- and pull it off the ignition switch.

Installing ignition switch

Diagnostic system: reading out fault memory and activating systems

Removing ignition switch

821

Installing ignition switch

Connecting electric plug

1. Connect plug on ignition switch until it clicks into place.

Turning union nut on ignition switch

2. Position ignition switch in the instrument panel from below. Position union nut, re-adjust switch

and tighten union nut using wrench T10152. → Tightening torque: 1.1 ftlb.

3. Place cover in position and slide it over the ignition switch, paying attention to the fitted

shape.

Information

Emergency operation of the ignition key lock

Note

In the event of insufficient or non-existent battery positive voltage, the ignition key can be removed
using the emergency operation.

•

Diagnostic system: reading out fault memory and activating systems

Installing ignition switch

822

1. Lever out the small cover, at the top right next to the ignition key, at the ignition switch using a

screwdriver.

2. Then, push a pen, for example, into the opening next to the key, turn the ignition key to position 0 and pull

it out.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
