Diagnostic system: reading out fault memory and activating systems

Work subsequent to installing injection valves

689

24 42 19 Removing and installing throttle body - as of
MY 2005

- Preliminary work
- Removing throttle body
- Installing throttle body
- Subsequent work

Preliminary work

Preliminary work for removing throttle body

Remove air cleaner housing → 242519 Removing and installing air cleaner housing - chapter on "removing".

Removing throttle body

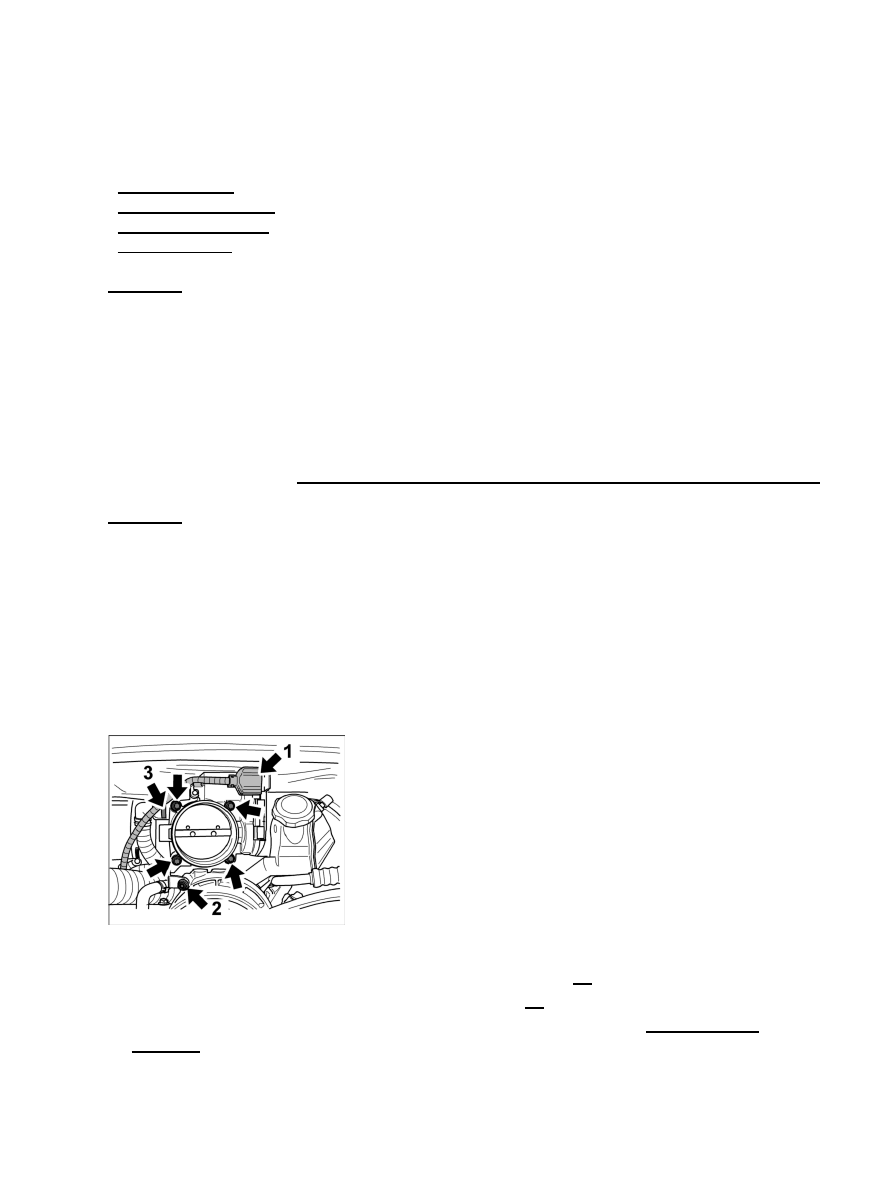

Removing throttle body

Throttle body

1. Release cable plug on throttle body, and pull out and release cable -1- .

2. Unscrew fastening nut M6 on rubber mount of servo pump -2- .

3. Remove four M6 x 40 fastening screws (outer torx) and remove throttle body -arrows without

numbers-

 .

4. Check moulded seal on flange of distributor pipe for damage, replace if

necessary.

690

Installing throttle body

Installing throttle body

1. Check moulded seal on flange of distributor pipe for damage, replace if

necessary.

Throttle body

2. Position throttle body in the installation position and screw in fastening screws. Make sure that the

sheetmetal holder is in correct contact with the rubber mount of the servo pump. Screw on M6
fastening nut -2- and tighten → Tightening torque: 7.5 ftlb. .

3. fit the four fastening screws of the throttle body -Pfeile ohne Nummern- → Tightening torque: 7.5 ftlb. .

4. Connect cable plug to throttle body and clip cable into holder

-1-

 .

Subsequent work

Work subsequent to installing throttle body

Install air cleaner housing → 242519 Removing and installing air cleaner housing - chapter on "installing".

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

Diagnostic system: reading out fault memory and activating systems

Removing throttle body

691
