20 66 19 Removing and installing fuel pump - as of
MY 2005

- Preliminary work
- Removing fuel pump
- Installing fuel pump
- Subsequent work

Preliminary work

Preliminary work - Carrera 2

1. Place protective covers on the vehicle.

2. Disconnect and remove battery → 270619 Removing and installing battery - section on "Removing".

Carrier plate for battery

3. Remove carrier plate for battery. Unscrew four M8 hexagon collar nuts -1- and remove lid. Check

seal for damage and replace it if necessary.

4. Remove fuel level sensor → 201519 21 Removing and installing fuel level sensor - section on "Removing".

5. Empty the fuel tank → 2010EN Emptying and filling the fuel tank - section on "Emptying".

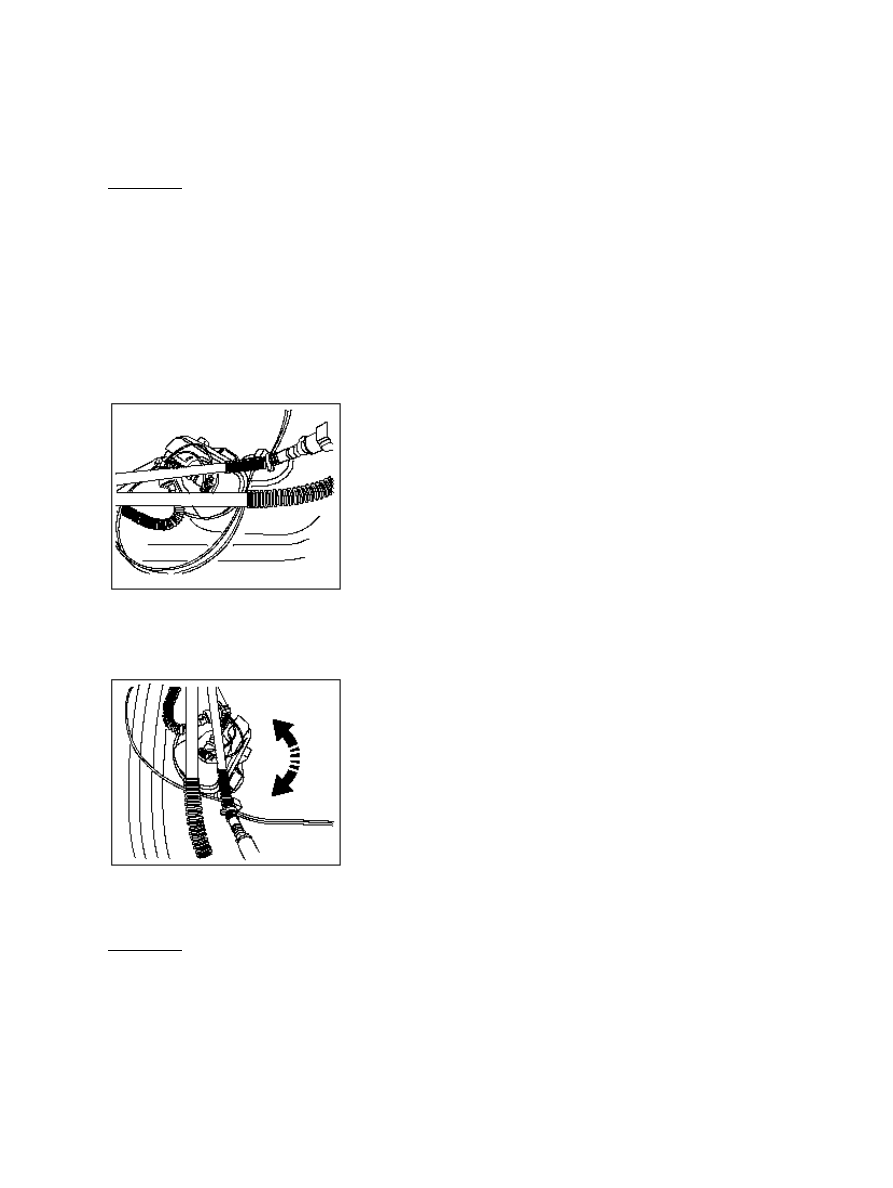

Removing fuel pump

Removing fuel pump - Carrera 2

653

C2 fuel pump

1. Turn fuel pump anti-clockwise (bayonet lock) and guide it carefully out of the opening of the tank (pay

attention to installation position).

Installing fuel pump

Installing fuel pump - Carrera 2

Fitting fuel pump

1. Fit fuel pump at fuel tank mounting point.

C2 fuel pump

2. Turn fuel pump clockwise as far as it will go.

Subsequent work

Diagnostic system: reading out fault memory and activating systems

Removing fuel pump - Carrera 2

654

Subsequent work - Carrera 2

1. Install fuel level sensor → 201519 23 Removing and installing fuel level sensor - section on "Installing".

2. Install carrier plate for battery. Tighten four hexagon nuts. → Tightening torque: 23 (17 ftlb.) Nm .

3. Install battery. → 270619 Removing and installing battery - section on "Installing".

4. Fill the fuel that you removed back into the tank → 2010EN Emptying and filling the fuel tank - section on

"Filling".

5. Carry out a function test and check the system for leaks.

6. Remove protective covers.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321
