Porshe 911 (997). Manual - part 1183





Ignition device 9257

The ignition device 9257 is used for triggering the airbag units.

A

- Ignition device 9257

Driver's airbag adapter cable 9257/4

The adapter cable 9257/4 is used for the driver's airbag.

B

- Marking A - adapter for 1st stage of driver's airbag unit

C

- Marking B - adapter for 2nd stage of driver's airbag unit

E

- Adapter for ignition device

Adapter cable of side airbag in the seat

Adapter cable of side airbag in the seat

Diagnostic system: reading out fault memory and activating systems

Tools for airbag units and belt tensioners

4889

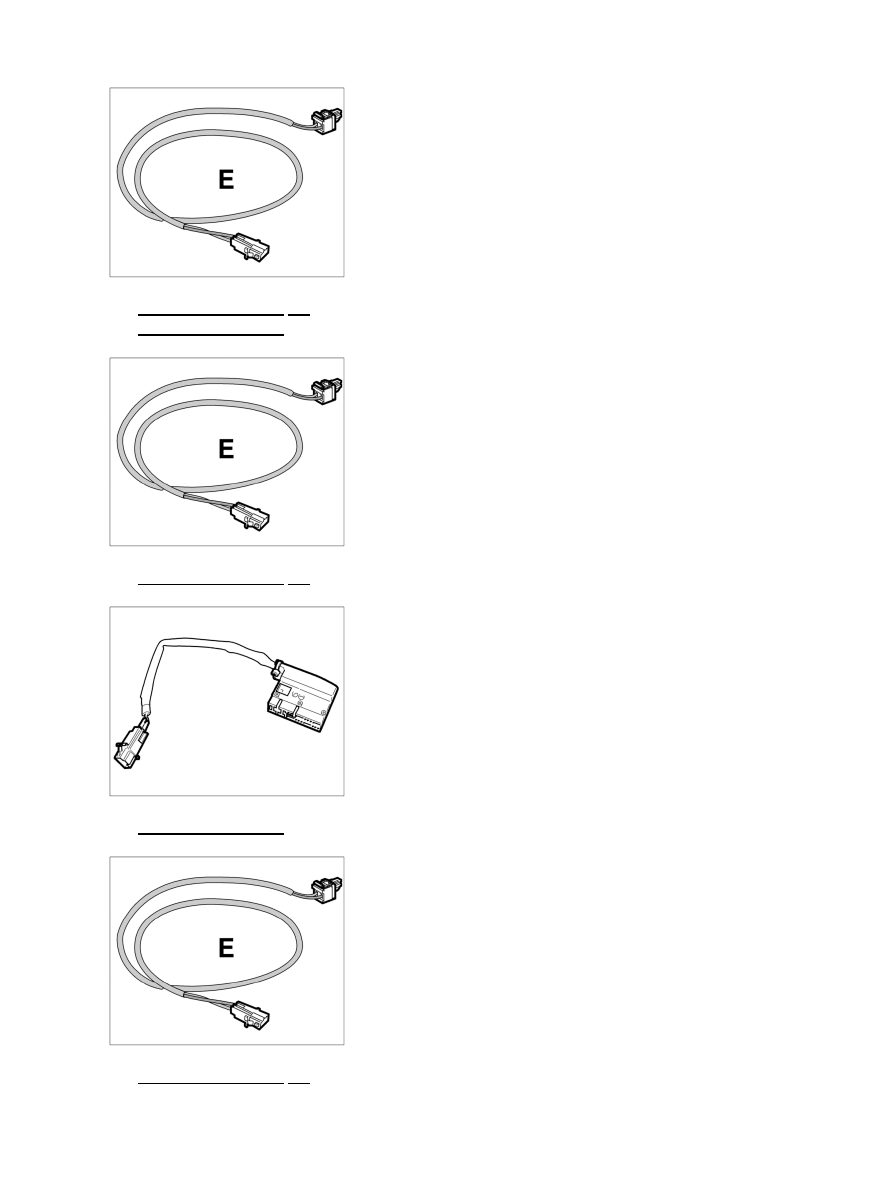

Passenger's airbag adapter cable, left side

The adapter cable 9257/3 -E- is used for the passenger's airbag, left side.
The adapter cable 9257/5 is used for the passenger's airbag, right side.

Head airbag adapter cable

The adapter cable 9257/3 -E- is used for the head airbag.

Adapter cable of side airbag in the seat

The adapter cable 9257/6 is used for the side airbag in the seat.

Belt tensioner adapter cable

The adapter cable 9257/3 -E- is used for the belt tensioner.

Diagnostic system: reading out fault memory and activating systems

Tools for airbag units and belt tensioners

4890

Designation

Special tool

Explanation

Ignition device

9257

Adapter cable

9257/4

For driver's airbag

Adapter cable

9257/3

Passenger's airbag, left side

Adapter cable

9257/5

Passenger's airbag, right side

Adapter cable

9257/3

Head airbag

Adapter cable

9257/6

Side airbag

Adapter cable

9257/3

Belt tensioner

Connecting ignition tool

Driver's side

Note

This is a two-stage airbag module which must be ignited separately.

Remove trim panel for steering column. → 481319  Removing and installing trim.

•

Driver's side

1. Disconnect plug from the airbag at the steering column switch and first insert the plug with marking

A

 (1st stage) of adapter cable No. 9257/4.

2. Connect ignition device No. 9257 to the 2-pin plug E of adapter cable No.

9257/4.

3. Place the ignition device in front of the vehicle through the door gap.

4. After triggering, repeat the work step with the plug with the marking B (2nd stage).

Diagnostic system: reading out fault memory and activating systems

 Connecting ignition tool

4891

Passenger's side

Note

Deformation of the instrument panel bracket must be expected after triggering of the passenger's airbag unit.
An installed airbag unit should be intentionally triggered in installed state only if the vehicle is to be scrapped.
If the instrument panel bracket is deformed in the area of the airbag mount, the instrument panel bracket will
have to be replaced.
This is a two-stage airbag module which must be ignited separately.

Remove glove compartment → 681519 Removing and installing glove compartment

•

Remove passenger's airbag unit. →  21 Removing and installing passenger's airbag unit - Removing

•

1. If the instrument panel is to be re-used, remove the instrument panel. → 701819 Removing and

installing the instrument panel - Removing

2. Connect the adapter cables 9257/3 (left) and 9257/5 (right) to the removed airbag unit. Re-install

airbag unit with the adapter cables.

3. Connect ignition device No. 9257 to the 2-pin plug E of adapter cable No.

9257/3.

4. Place the ignition device in front of the vehicle through the door gap.

5. After triggering, repeat the work step with adapter cable No. 9257/5.

Side airbag

Note

Before disconnecting the battery, move the seat to the uppermost position.

Diagnostic system: reading out fault memory and activating systems

Passenger's side

4892
