- Accessories
- Unpainted bodyshell

Accessories

Note on seam seals

Note

Due to modifications to the spare part range, in the case of repair work, accessories must be sealed
before assembly (painting) according to the following illustrations.

•

The sealing material → SEALING MATERIAL can be applied directly to accessories coated with KTL
paint (cathodic dipbath coating).

•

The seam seal can be painted over when it has reached approx. 70 % hardness (approx. 4 - 5 h at 20
°C, 50 % relative air humidity. Higher air humidity or dampening with water accelerates the
hardening process).

•

The hardening can be checked with a nail test. Press a finger nail gently into the hardened sealing
mass; if this causes no damage to the sealing mass surface, the seam seal can be painted.

•

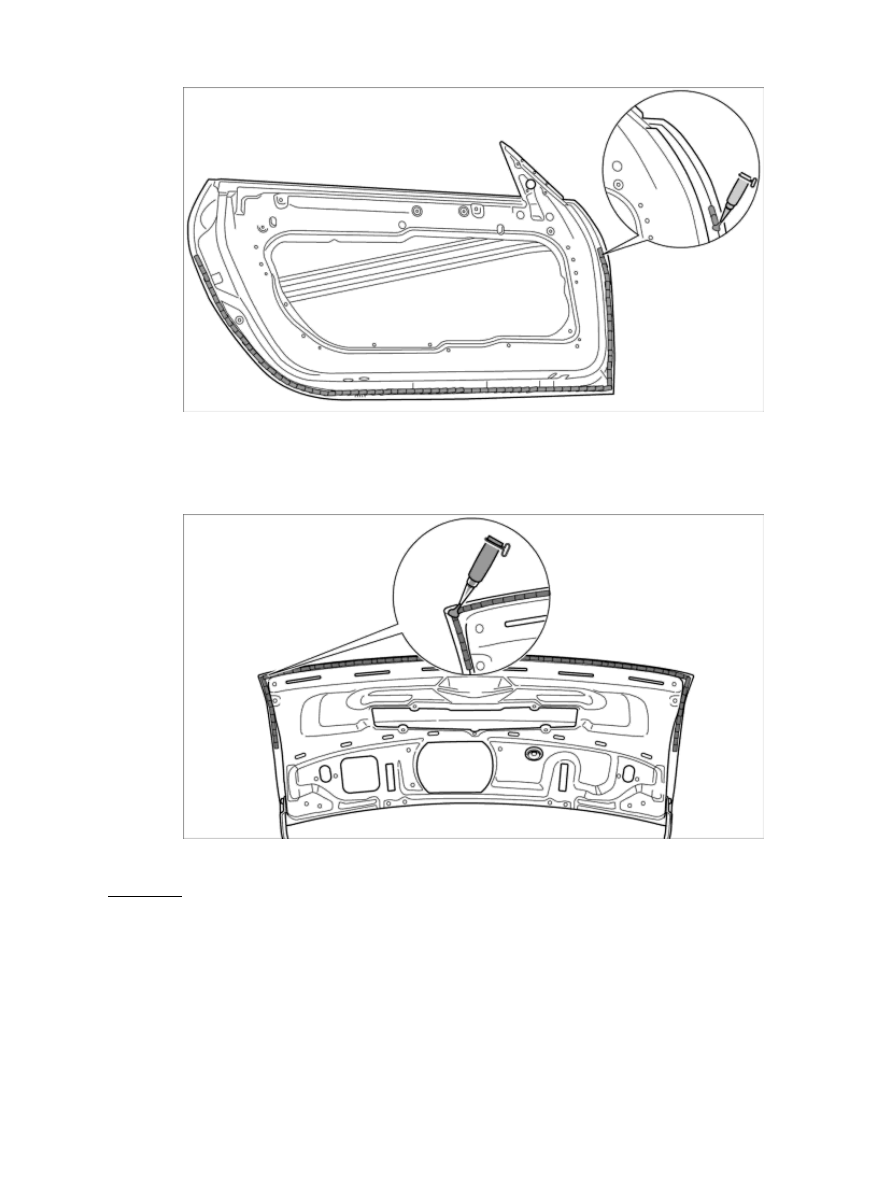

Door

4789

Door seam seal

Rear lid

Rear lid seam seal

Unpainted bodyshell

Diagnostic system: reading out fault memory and activating systems

Door

4790

Top of front of vehicle

Seam seal, top of front of vehicle

Top of front of vehicle, front

Seam seal, top of front of vehicle, front

Top of front of vehicle, (radiator tank)

Note

The designated area -X- must be kept clear.

•

Diagnostic system: reading out fault memory and activating systems

Top of front of vehicle

4791

Seam seal, top of front of vehicle, (radiator tank)

Front of vehicle and inside A-pillars

Seam seal, front of vehicle and inside A-pillars

Front of vehicle and outside A-pillars

Diagnostic system: reading out fault memory and activating systems

Top of front of vehicle, (radiator tank)

4792
