Diagram: Plug plan

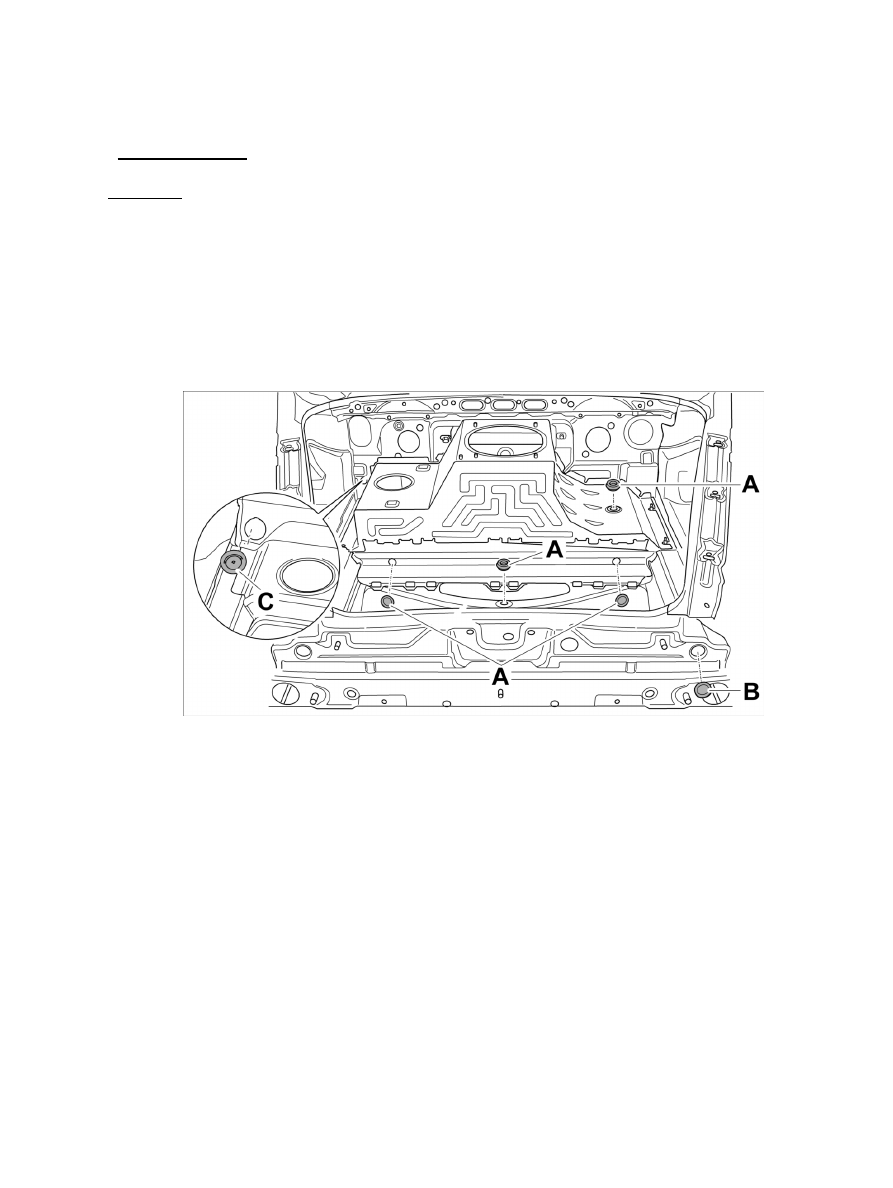

Top of front of vehicle

Illustrated on the body of an all-wheel drive vehicle

Top of front of vehicle

A - Rubber grommet hole Ø 20 mm
B - Rubber grommet hole Ø 30 mm
C - Plug hole Ø 35 mm

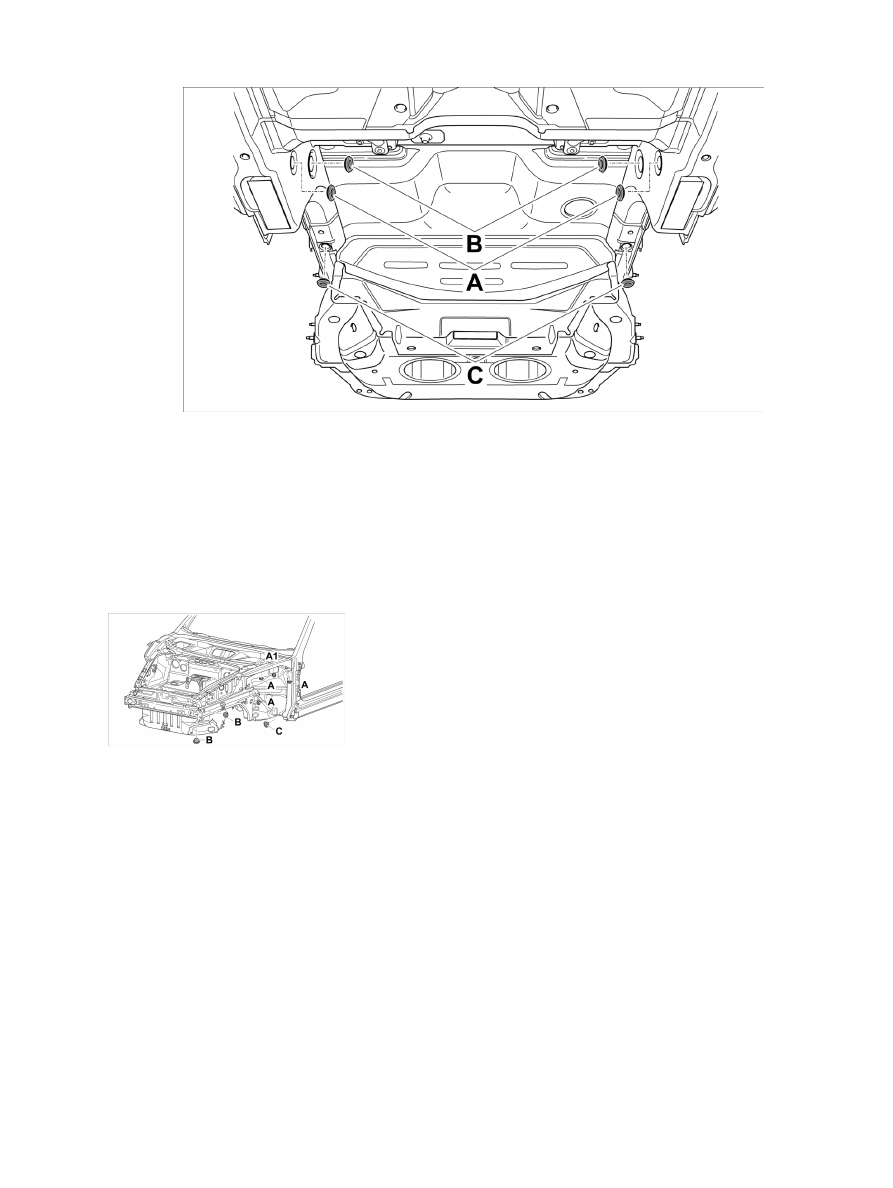

Bottom of front of vehicle

4741

Bottom of front of vehicle

A - Rubber grommet hole Ø 20 mm
B - Rubber grommet hole Ø 30 mm
C - Plug hole Ø 20 mm

Side of front of vehicle

Side of front of vehicle

A - Rubber grommet hole Ø 20 mm
A1 - Rubber grommet hole (only when no sliding roof) Ø 20 mm
B - Plug hole Ø 10 mm
C - Plug hole Ø 15 mm

Bottom of lower side member and floor

Diagnostic system: reading out fault memory and activating systems

Bottom of front of vehicle

4742

Bottom of lower side member and floor

A - Cap hole Ø 15 mm
B - Cap hole Ø 20 mm
C1 - Plug hole (only rear-wheel drive) Ø 10 mm

Top of lower side member and floor

Top of lower side member and floor

A - Rubber grommet hole Ø 20 mm
B - Rubber grommet hole Ø 30 mm
C - Cap hole Ø 30 mm
D - Plug hole Ø 10 mm
E - Cap hole Ø 20 mm

Diagnostic system: reading out fault memory and activating systems

Bottom of lower side member and floor

4743

Bottom of rear end

Bottom of rear end

A - Rubber grommet hole Ø 20 mm
A1 - Plug (Coupé only) Ø 33 mm
B - Plug Ø 10 mm
C - Plug hole Ø 15 mm
D - Plug hole Ø 20mm

Top of rear end

Top of rear end

A - Rubber grommet hole Ø 20 mm
B - Rubber grommet hole Ø 30 mm
D - Plug hole Ø 10 mm
L - Plug hole Ø 55 mm

Diagnostic system: reading out fault memory and activating systems

Bottom of rear end

4744
