Porshe 911 (997). Manual - part 1143

Diagram - Cabriolet gap dimensions

Gap dimensions, hardtop

Note

Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap
specifications.

•

Given a clearance in the opening that is too great or too small, the movable body or the accessories
must be centred accordingly.

•

Ensure that the gaps do not taper or do not narrow at local points.

•

The given values are guidelines which should be observed as far as possible.

•

The guidelines apply to repair and assembly work.

•

Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1

•

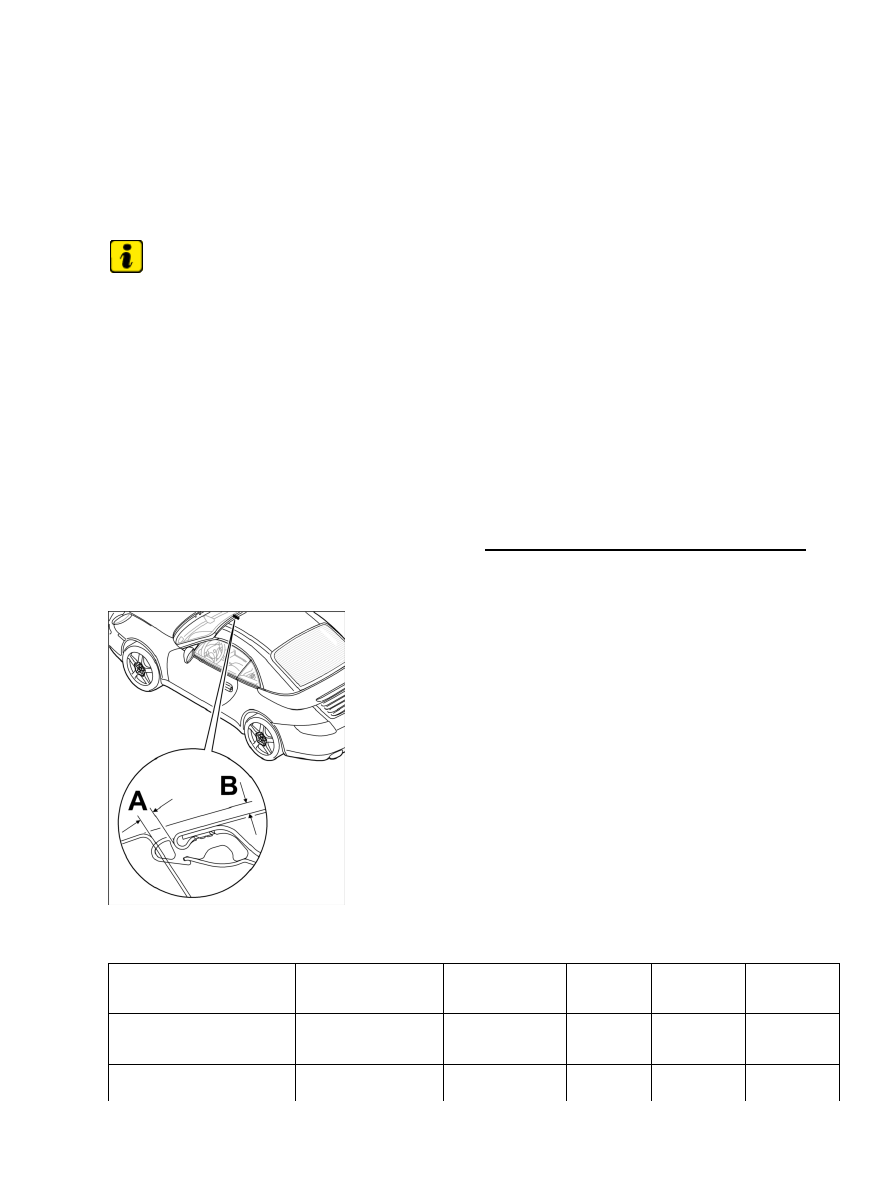

Windscreen frame to hardtop

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance 2

Windscreen frame to
hardtop

Hardtop only
lowered

Gap dimension
A

5.5 mm

+/-1 mm

4 mm

-2 mm

Diagnostic system: reading out fault memory and activating systems

 Diagram - Cabriolet gap dimensions

4729

Windscreen frame to
hardtop

Gap dimension
B

Roof joint strip to hardtop

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Roof joint strip to hardtop

Only lowered

Gap dimension A

1 mm

Rear window to roof frame (hardtop)

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Rear window to roof frame
(hardtop)

Rear window only
lowered

Gap dimension
A

10 mm

Rear window to roof frame
(hardtop)

Gap dimension
B

3 mm

+/-1.5 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, hardtop

4730

Hardtop to convertible-top compartment lid

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Hardtop to convertible-top
compartment lid

Gap dimension
A

8 mm

+/-4 mm

Hardtop to convertible-top compartment lid

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Hardtop to convertible-top
compartment lid

Gap dimension
A

8 mm

+/-4 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, hardtop

4731

Hardtop to convertible-top compartment lid

Location

Explanation

Type

Basic
value

Tolerance

1

Tolerance

2

Hardtop to convertible-top
compartment lid

Gap dimension
A

6 mm

+/-3 mm

997430, 997431

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•
