Porshe 911 (997). Manual - part 1127
Diagram - body centre gap dimensions

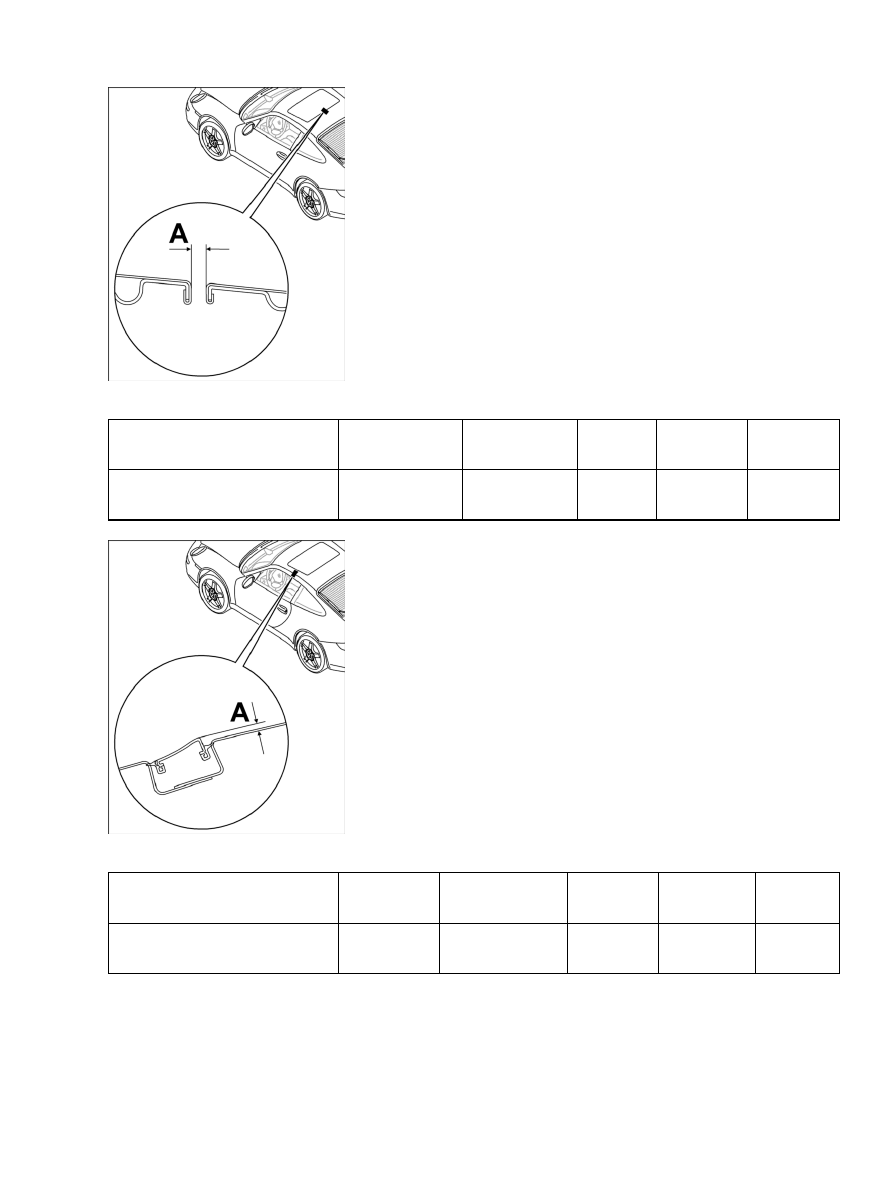

Gap dimensions, body centre
Note
Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap
specifications.
•
Given a clearance in the opening that is too great or too small, the movable body or the accessories
must be centred accordingly.
•
Ensure that the gaps do not taper or do not narrow at local points.
•
The given values are guidelines which should be observed as far as possible.
•
The guidelines apply to repair and assembly work.
•
Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1
•
Door to wing
Location
Explanation
Type
Basic value
Tolerance 1
Tolerance 2
Door to wing
Gap dimension A
4 mm
+/-0.5 mm
