Porshe 911 (997). Manual - part 1126





Main headlight to front apron

Location

Explanation

Type

Basic value Tolerance 1 Tolerance 2

Main headlight to front apron

Gap dimension A

4 mm

+/-1.5 mm

Main headlight to external wing

Location

Explanation

Type

Basic value Tolerance 1 Tolerance

2

Main headlight to external
wing

Gap dimension A

4 mm

+1 mm

Main headlight to external
wing

Only lowered

Gap dimension B

1 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body front

4661

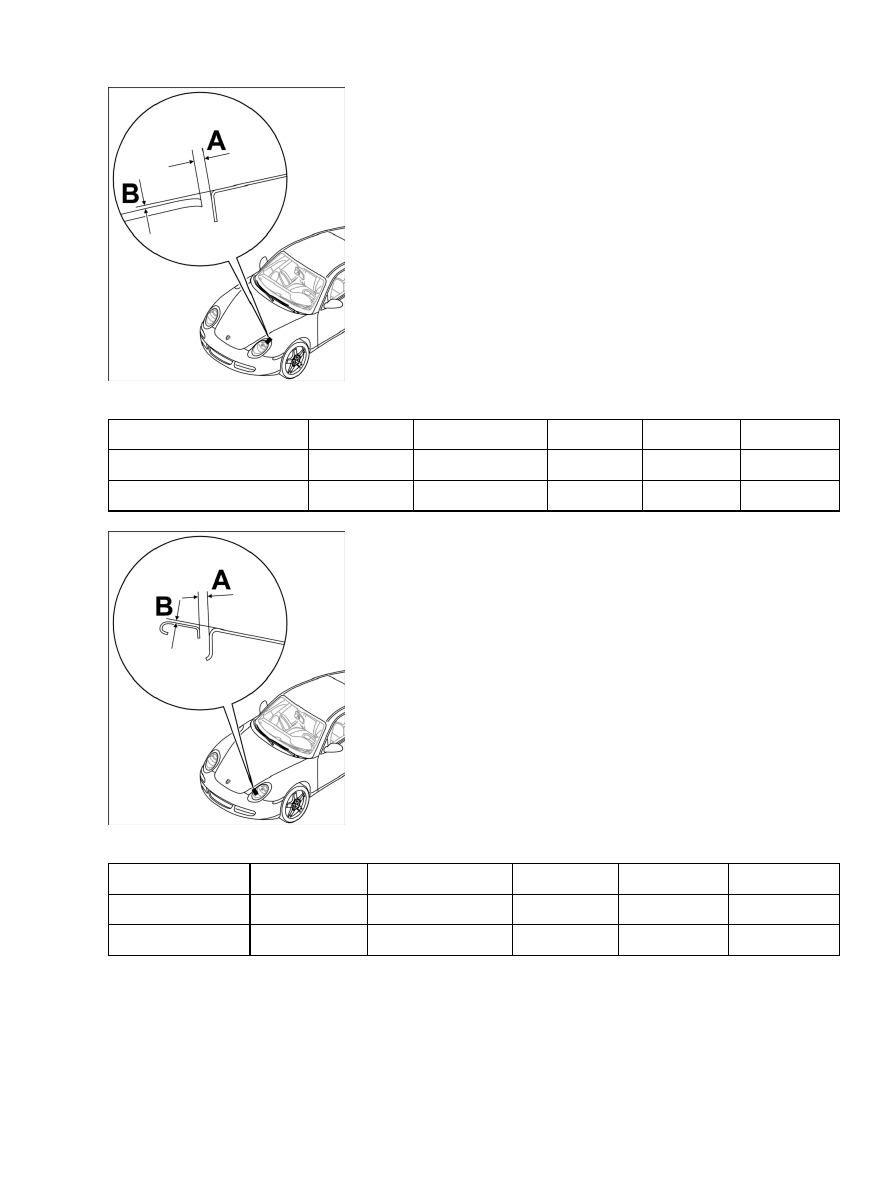

Main headlight to top wing

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Main headlight to top wing

Gap dimension A

4 mm

+/-1 mm

Main headlight to top wing

Only lowered

Gap dimension B

1 mm

Front lid to wing

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Front lid to wing

Gap dimension A

4 mm

+/-1 mm

Front lid to wing

Only lowered

Gap dimension B

0.5 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body front

4662

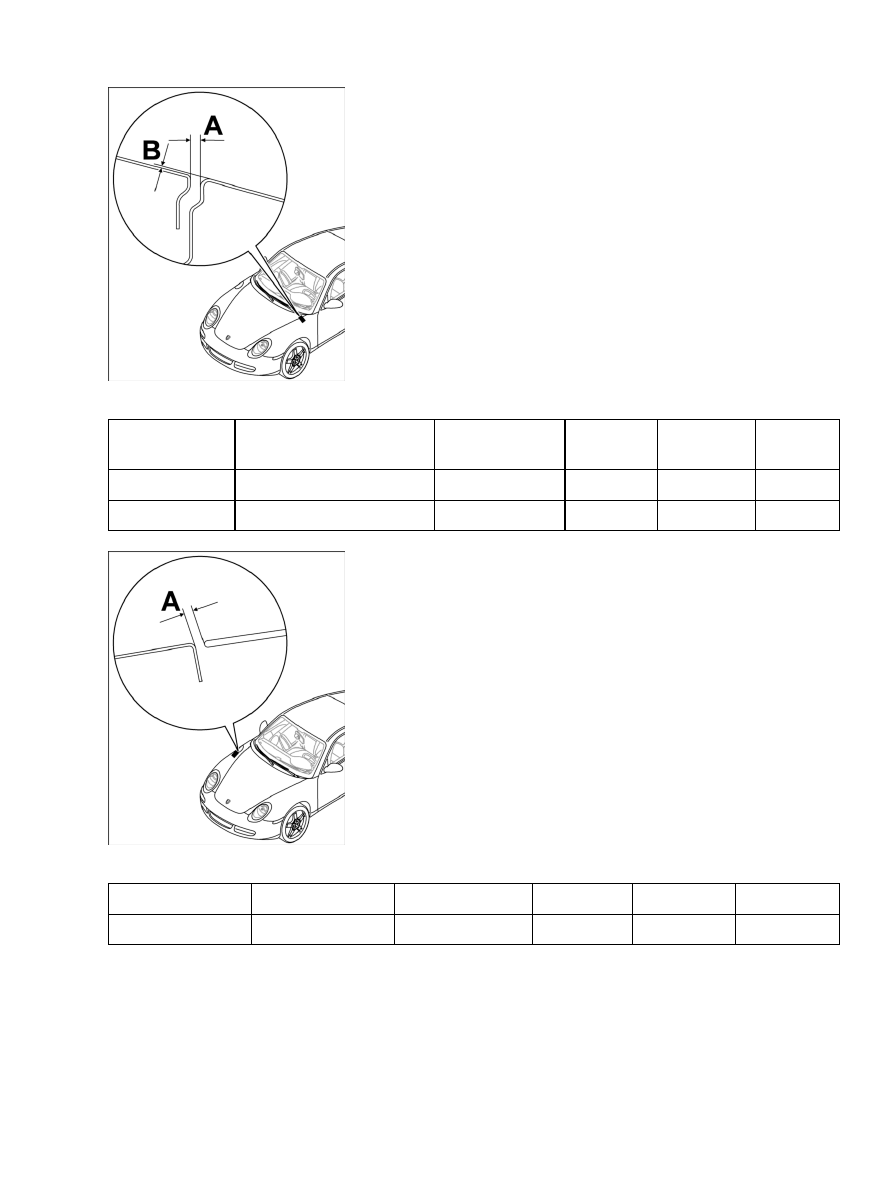

Wing to front lid

Location

Explanation

Type

Basic value Tolerance 1 Tolerance

2

Wing to front lid

Determine left and right gap Gap dimension A

4 mm

+1 mm

Wing to front lid

Only lowered

Gap dimension B

0.5 mm

Filler flap to wing

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Filler flap to wing

All the way round

Gap dimension A

3.5 mm

+/-0.5 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body front

4663

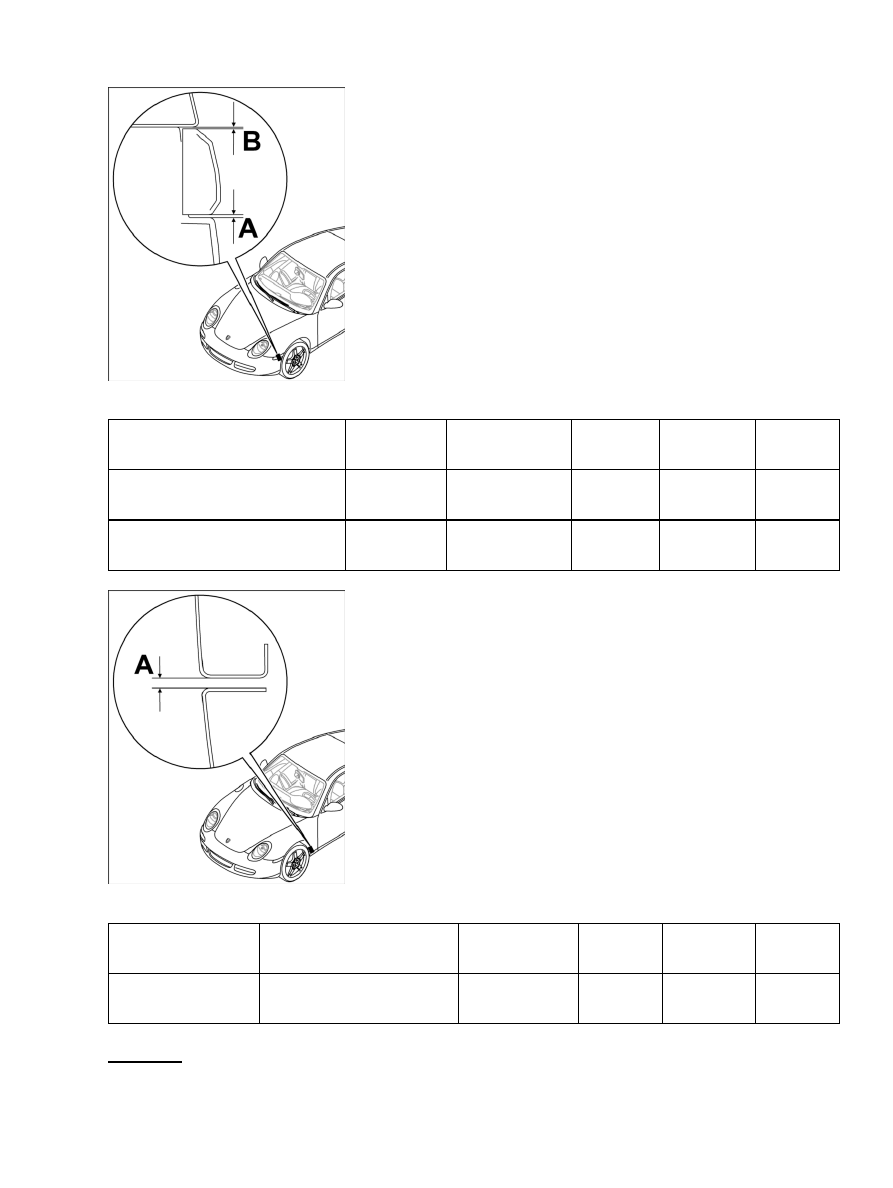

Front apron to side direction indicator

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance

2

Front apron to side direction
indicator

Gap dimension
A

1.5 mm

Wing to side direction indicator

Gap dimension
B

0.5 mm

+0.5 mm

Wing to outer side panel

Location

Explanation

Type

Basic
value

Tolerance 1 Tolerance

2

Wing to outer side
panel

Even transition from front
to rear

Gap dimension
A

4.5 mm

+/-1 mm

Diagnostic system: reading out fault memory and activating systems

Gap dimensions, body front

4664
