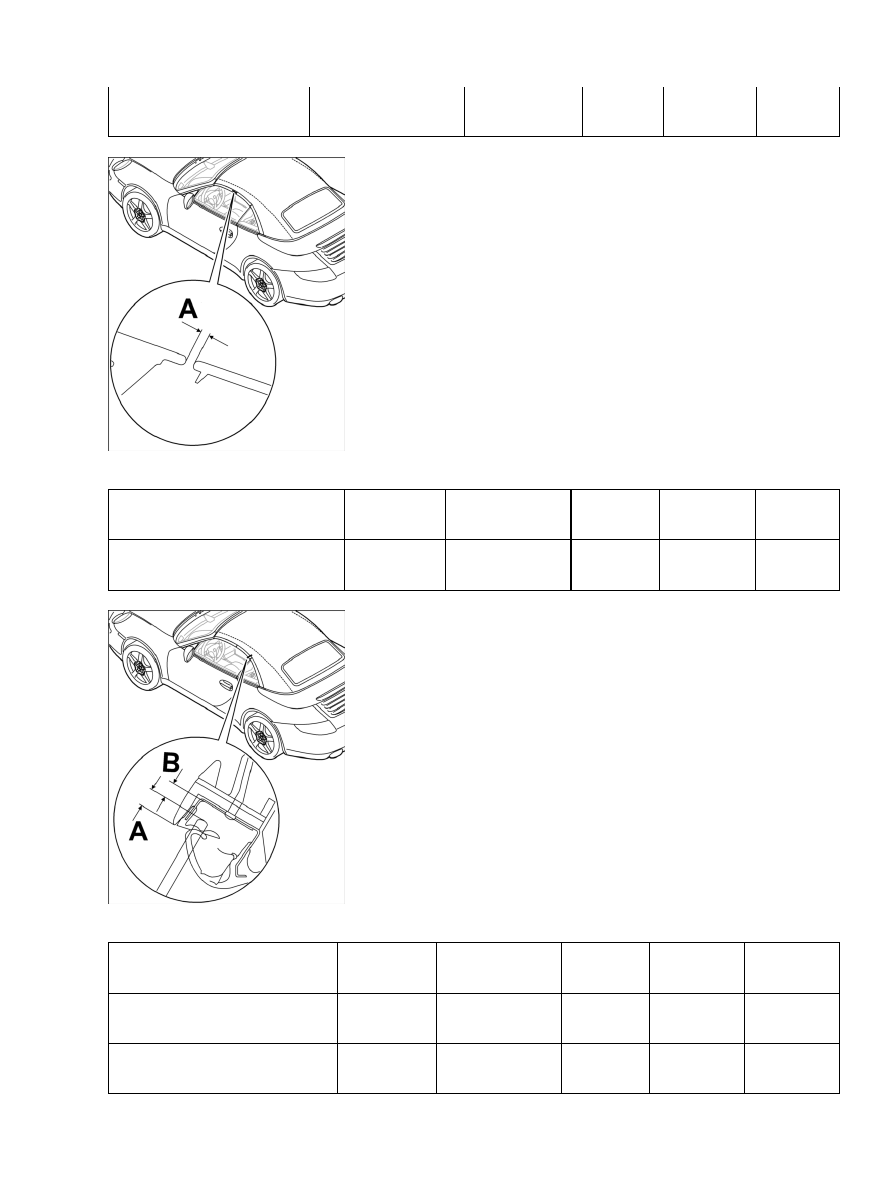

Diagram - Cabriolet gap dimensions
Convertible-top gap dimensions
Note
Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap
specifications.
•
Given a clearance in the opening that is too great or too small, the movable body or the accessories
must be centred accordingly.
•
Ensure that the gaps do not taper or do not narrow at local points.
•
The given values are guidelines which should be observed as far as possible.
•
The guidelines apply to repair and assembly work.
•
Use star gauges to measure the gap dimensions, Star gauges for body gap dimensions NR.127-1
•
Cowl panel frame to front roof frame
Location
Explanation
Type
Basic
value
Tolerance
1
Tolerance
2
Cowl panel frame to front
roof frame
Roof frame only
lowered
Gap dimension
A
7 mm
+/-1 mm
1.7 mm
Diagnostic system: reading out fault memory and activating systems
