Installation position shown on the 911

A

- Relay carrier 1

Removing relay carrier

1. -A- Pull apart both retaining lugs on relay carrier support and press the relay carrier upward.

2. -B- Press relay carrier upward approx. 45° on the right side.

Pulling relay carrier out of the retaining frame

Diagnostic system: reading out fault memory and activating systems

Removing relay carrier 1 from the retaining frame

4533

3. -C- Pull out the support lugs of the relay carrier from the support and -D- pull out the relay carrier

downward.

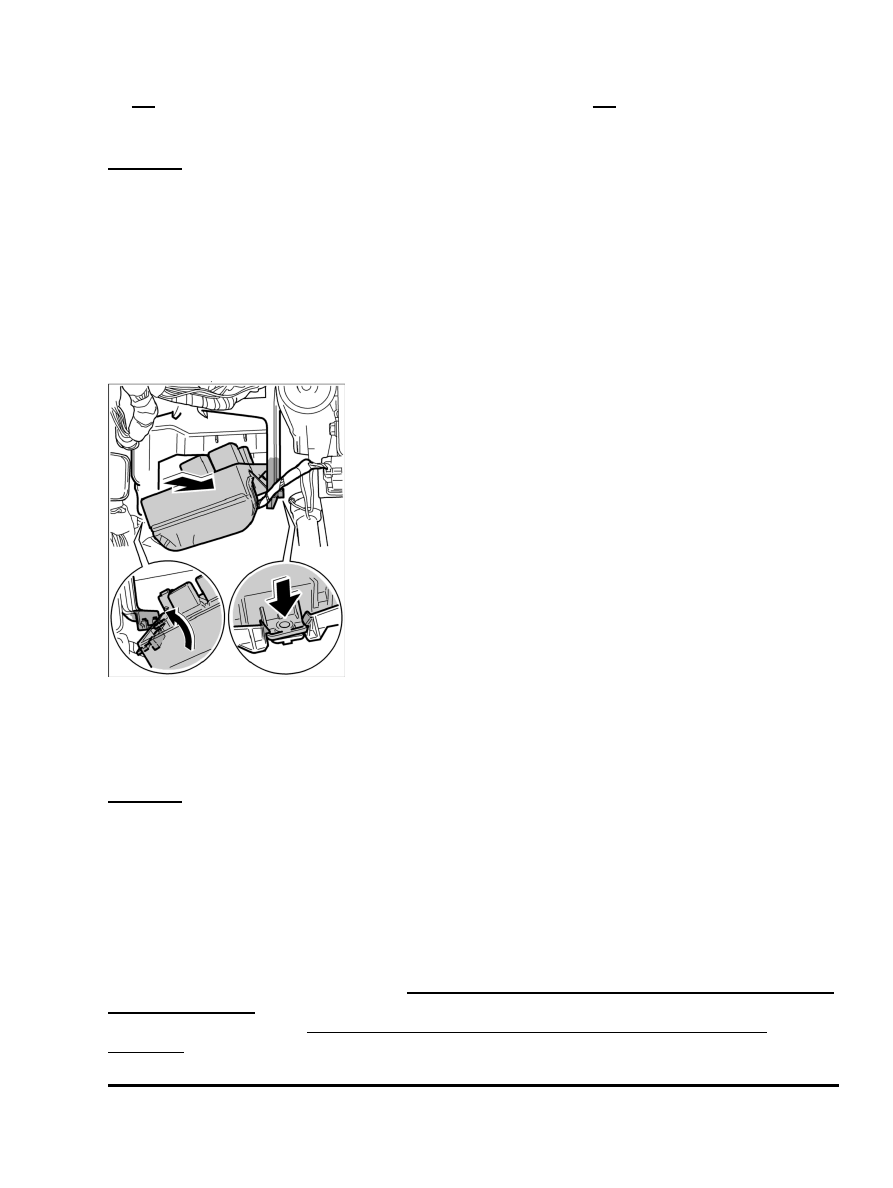

Installing relay carrier 1

Installing relay carrier 1 in the retaining frame

Pushing and engaging the relay carrier into its retaining frame

1. Slide in the relay carrier from below at approx. 45° slant into the support.

2. Secure the support lugs from the relay carrier into the support and engage the relay carrier in the support.

Subsequent work

Subsequent work on relay carrier 1

Install trim under dashboard on driver's side. → 701919 Removing and installing trim under instrument panel -
section on "Installing"
Install front side section trim. → 702419 Removing and installing front side section trim - section on
"Installing"

Diagnostic system: reading out fault memory and activating systems

 Installing relay carrier 1

4534

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
